Aluminium Chequer Plate 8x4 (2500 x 1250mm) – 5754 Five Bar

Aluminium Chequer Plate 8x4 (2500 x 1250mm) – 5754 Five Bar

£134.99 GBP
£134.99 GBP
(£112.49 ex VAT) Sale Sold out
Taxes included. Shipping calculated at checkout.

Our 8x4ft (2500 x 1250mm) aluminium chequer plate is supplied in 5754 grade with a raised five-bar tread pattern, available in 1.5mm to 6mm base thicknesses. Lightweight, corrosion-resistant and easy to fabricate, suitable for trailer floors, vehicle lining, ramps, kick plates and decorative work, with a 3-5 working day lead time to mainland UK addresses.

Technical Specification

Material 5754 aluminium (H114 temper)
Pattern Raised five-bar tread
Sheet size 2500 x 1250mm (8x4ft)
Thicknesses available 1.5mm - 6mm (base thickness)
Density 2,700 kg/m3 (approx)

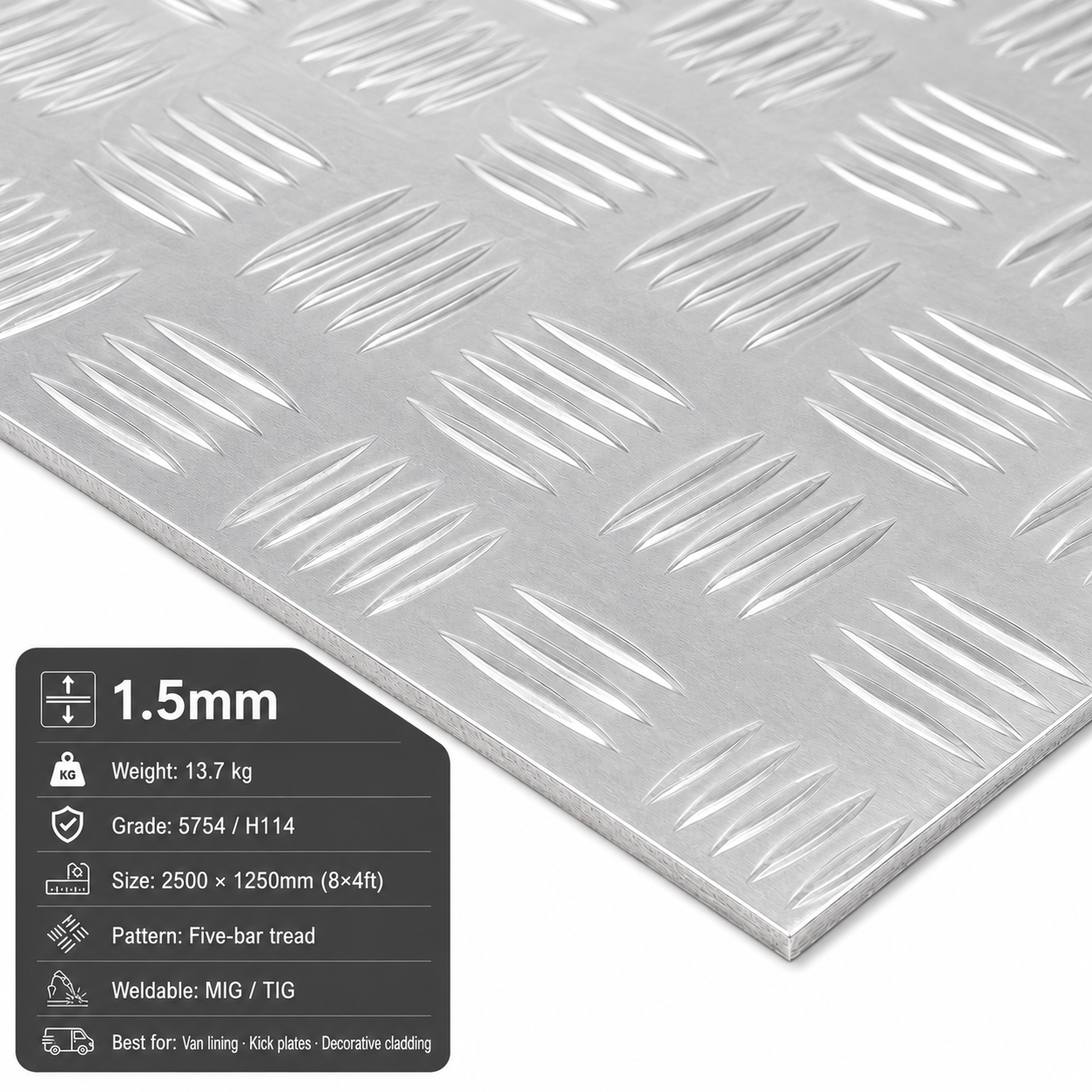

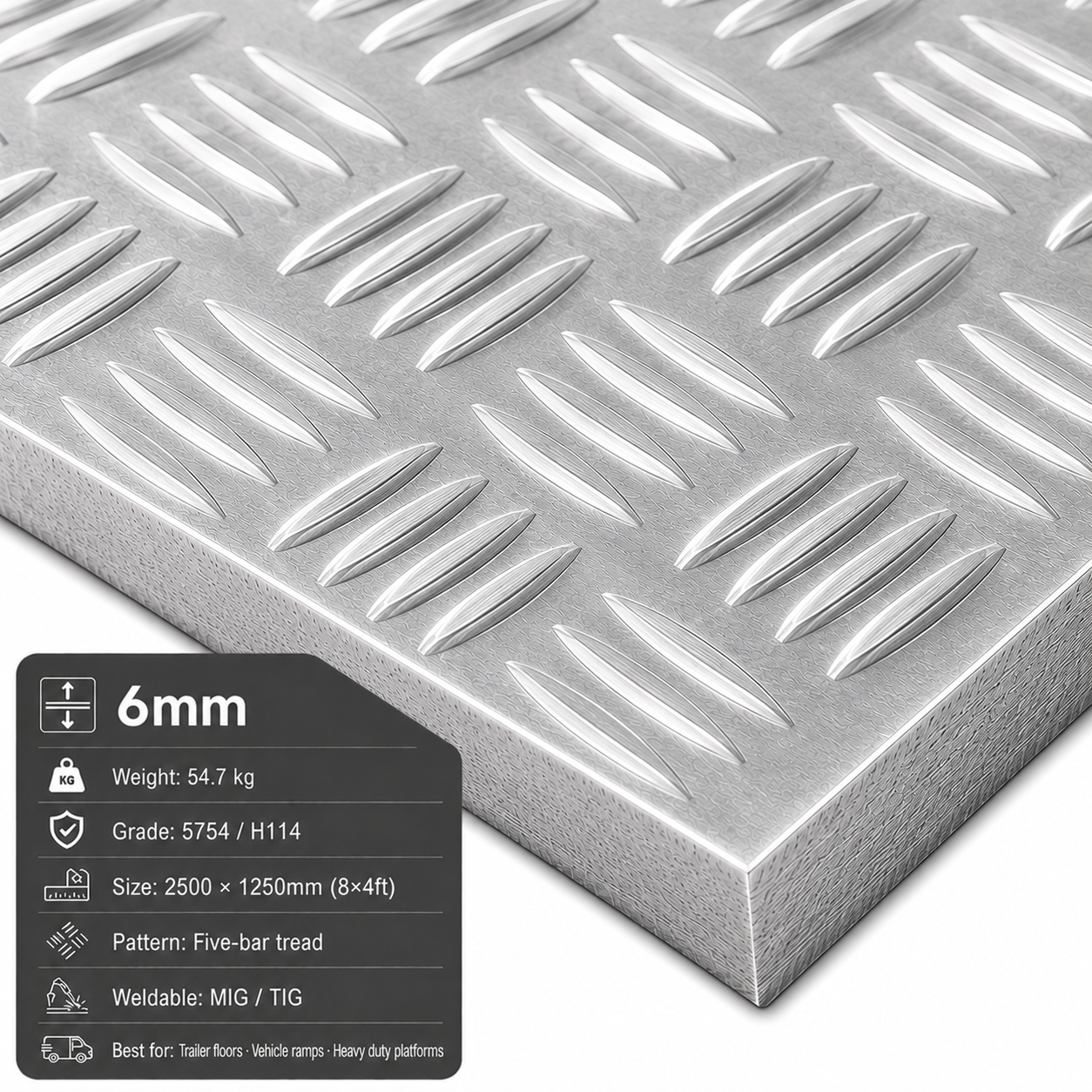

Weight Approx. 13.7 kg (1.5mm) to 54.7 kg (6mm) per sheet
Finish Mill finish bright aluminium
Corrosion resistance Excellent - suitable indoor and outdoor
Weldability Good - suitable for MIG and TIG welding
Workability Cuts, drills and fabricates with standard tools
Lead time 3-5 working days (mainland UK; up to 10 to remote areas)

Common Uses

5754 aluminium chequer plate is widely used for trailer and van floors, vehicle lining, toolboxes, loading ramps, stair treads, kick plates, wall and corner protection, workshop and garage flooring, shop fitting and decorative interior applications. Its low weight relative to steel makes it ideal where weight saving and corrosion resistance matter.

Aluminium Chequer Plate vs Steel Durbar Plate

Aluminium chequer plate is significantly lighter than steel and naturally corrosion-resistant, making it the right choice for vehicle, marine, decorative and weight-sensitive applications. Mild steel durbar plate is stronger and heavier, better suited to heavy-duty structural flooring and high-traffic industrial use. Choose aluminium for weight saving and corrosion resistance, or steel durbar where load-bearing strength is the priority.

Cutting and Fabrication

Aluminium chequer plate can be cut, drilled, shaped and fabricated using standard metalworking tools. It is lighter and easier to handle than steel of equivalent size, and requires no protective coating for most applications thanks to its natural corrosion resistance.

Delivery Information

Lead times are currently 3-5 working days for mainland UK, with a maximum of 10 working days to remote areas. Mainland UK delivery only. Larger sheets may require assistance with unloading depending on order size.



View full details

FREQUENTLY ASKED QUESTIONS

What size is the 8x4 aluminium chequer plate?
The 8x4 aluminium chequer plate measures 2500 x 1250mm. It is supplied in 5754 grade with a raised five-bar tread pattern.

What thicknesses is the 8x4 aluminium chequer plate available in?
The 8x4 (2500 x 1250mm) aluminium chequer plate is available in 1.5mm, 2mm, 3mm, 4.5mm and 6mm. Thickness refers to the base sheet, measured excluding the raised five-bar tread pattern.

What grade is your aluminium chequer plate?
Our aluminium chequer plate is supplied in 5754 grade aluminium (H114 temper) with a raised five-bar tread pattern. 5754 offers excellent corrosion resistance, good strength and reliable weldability, suitable for transport, marine, flooring and industrial use in both indoor and outdoor environments.

What is the difference between aluminium chequer plate and steel durbar plate?
Aluminium chequer plate is significantly lighter than steel and naturally corrosion-resistant, ideal for vehicle, marine, decorative and weight-sensitive applications. Mild steel durbar plate is stronger and heavier, better suited to heavy-duty structural flooring and high-traffic industrial use. Choose aluminium for weight saving and corrosion resistance, steel durbar for load-bearing strength.

What are the delivery lead times?
Lead times are currently 3-5 working days for mainland UK, with a maximum of 10 working days to remote areas. Mainland UK delivery only. Larger sheets may require assistance with unloading depending on order size.
