Playground Surfacing: The Complete UK Guide
Playground surfacing is the impact-absorbing layer under and around play equipment that cushions falls and helps prevent serious injury. Getting it right means matching the surface — rubber mulch, wet pour, tiles, grass mats or loose fill — to the height of your equipment, so it meets the safety standard. This complete UK guide explains the types of playground surfacing, the BS EN 1177 safety rules, how deep each needs to be, and what they cost in 2026.
Why Playground Surfacing Matters
Most serious playground injuries are caused by falls onto a hard surface. The job of playground safety surfacing is impact attenuation — softening the landing so a fall from the equipment doesn't cause a serious head injury. Grass and bare ground harden over time and don't reliably absorb impacts, which is why dedicated safety surfacing is used wherever children can fall from height.
The Safety Standard: BS EN 1177
UK playground surfacing is governed by BS EN 1177 (Impact Attenuating Playground Surfacing). It sets out how a surface is tested to determine its Critical Fall Height (CFH) — the maximum height from which a fall onto that surface keeps the impact within safe limits (a Head Injury Criterion, HIC, below 1000 and peak deceleration below 200g). Equipment is also covered by BS EN 1176. In short: the surface's CFH must be equal to or greater than the free height of fall of your equipment.
What Is Critical Fall Height?
Critical Fall Height is the single most important number in playground surfacing. If a climbing frame has a 1.5m fall height, you need a surface tested to a CFH of at least 1.5m. The CFH depends on the surface type and its depth or thickness — deeper loose fill and thicker tiles protect from greater heights. Always check the CFH rating against your equipment before choosing.
Types of Playground Surfacing

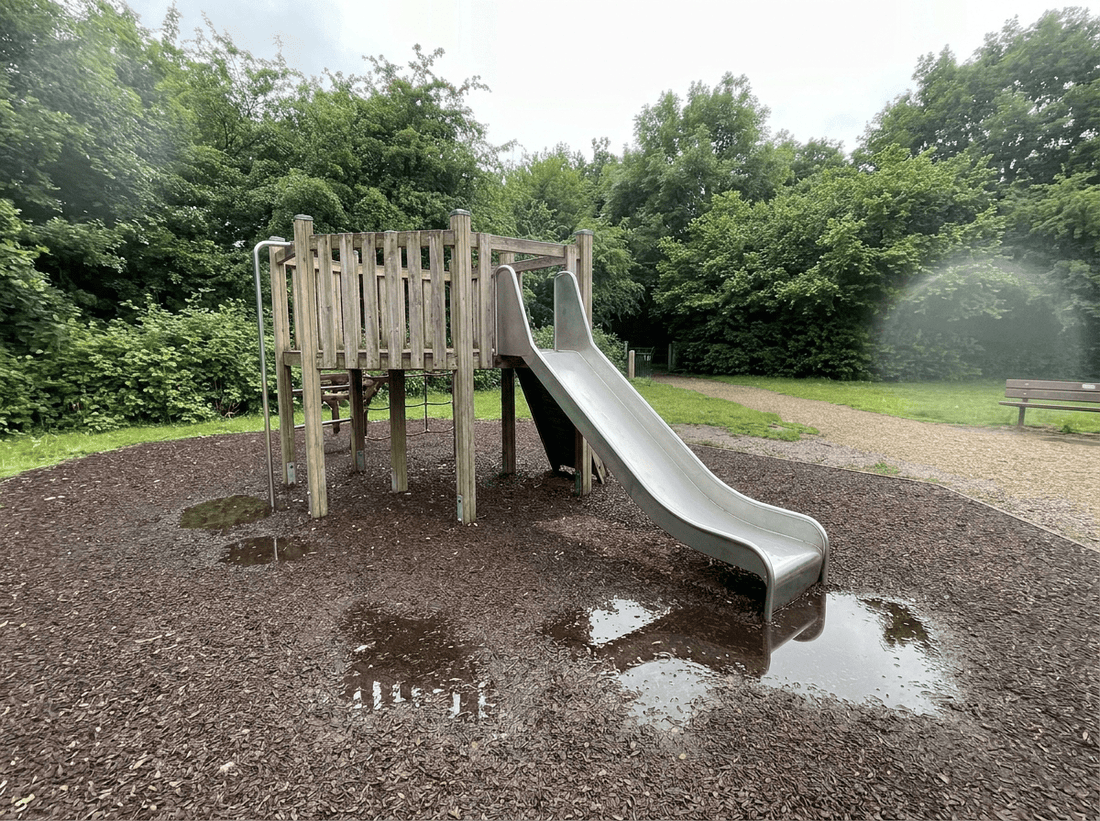

1. Rubber Mulch / Rubber Chippings
Rubber mulch (also called rubber chippings or play bark) is shredded recycled rubber used as a loose-fill or bonded safety surface. It is natural-looking, permeable, low-maintenance, and excellent at absorbing impacts. As a loose fill it typically needs a depth of around 250–300mm to achieve a useful CFH, and installers often lay 350–400mm initially so it stays compliant as it settles. It is one of the most cost-effective safety surfaces and a popular choice for play areas, pathways and muddy ground. See how to install rubber chippings and how long they last.
2. Wet Pour Rubber
Wet pour is a seamless, in-situ surface made from recycled rubber crumb (often an EPDM top layer) bound with polyurethane and trowelled on site. It gives the cleanest appearance, the most design freedom (colours, graphics), good wheelchair access, and high CFH for its depth. It is the premium option, costing more than loose fill and requiring professional installation.
3. Rubber Safety Tiles
Interlocking rubber tiles (usually 500 × 500mm) are a modular safety surface laid over a prepared base. Their CFH depends on thickness — as a rough guide:
| Tile thickness | Approx. critical fall height |
|---|---|
| 40 mm | up to ~1.0–1.2 m |
| 50 mm | up to ~1.5–1.8 m |
| 65 mm | up to ~2.0–2.5 m |
| 80 mm | up to ~3.0 m |
Tiles are hard-wearing and easy to repair (swap a damaged tile), but pricier than loose fill and only as good as the base beneath them.
4. Rubber Grass Mats
Rubber grass mats are perforated mats laid over existing grass; the grass grows through for a natural look while the mat provides impact protection, typically to a CFH of around 1.0–1.3m. They suit lower equipment and keep a green appearance, but offer less protection than deep mulch, wet pour or thick tiles.
5. Bark and Wood Chip
Loose bark or wood chip is a cheap, natural loose fill. It can achieve a reasonable CFH at depth, but it decomposes, scatters, harbours debris, holds water and needs regular topping up — so its real-world safety performance drops without maintenance. See our comparison of rubber chippings vs bark.
6. Sand and Gravel
Loose sand or rounded pea gravel are traditional loose fills that absorb impact at sufficient depth. They are inexpensive but migrate, compact, hide hazards, and need regular raking and topping up. Gravel is unsuitable for younger children. For gardens, see rubber chippings vs gravel.
Playground Surfacing Compared
| Surface | Typical CFH | Indicative cost | Maintenance |
|---|---|---|---|
| Rubber mulch / chippings | High (at 250–300mm+) | £40–£100/m² | Low |
| Wet pour rubber | High (by depth) | £30–£90/m² | Low |
| Rubber tiles | 1.0–3.0m (by thickness) | Mid–high | Low (swap tiles) |
| Rubber grass mats | ~1.0–1.3m | Low–mid | Low |
| Bark / wood chip | Moderate (at depth) | Low | High |
| Sand / gravel | Moderate (at depth) | Low | High |
How Much Surfacing Do You Need?
For loose fills like rubber mulch, work out the area to cover and the required depth (around 250–300mm for fall protection, less for paths and landscaping), then calculate the volume and weight. Our rubber chippings coverage calculator does the maths for you and tells you how many bulk bags you need.
Cost of Playground Surfacing
As a 2026 guide, wet pour runs around £30–£90 per m² and rubber mulch around £40–£100 per m² installed, with tiles and grass mats varying by thickness and specification. Loose fills like bark, sand and gravel are cheapest up front but cost more over time in topping up and maintenance. Rubber chippings strike a strong balance of low cost, low maintenance and good impact protection, which is why they're so popular for play areas and gardens.
How to Choose Playground Surfacing
Start with your equipment's fall height and pick a surface and depth with a CFH that meets or exceeds it. Then weigh budget (loose fills cheapest, wet pour/tiles dearer), look (natural mulch and grass mats vs colourful wet pour), access (wet pour and tiles are best for wheelchairs and buggies), and maintenance (rubber options beat bark and sand). For home and community play areas, rubber chippings are usually the most practical all-rounder.
Buy Playground Rubber Chippings at Rackerman
Rackerman supplies playground rubber chippings (rubber mulch / play bark) in bulk bags, plus coloured rubber chippings for brighter play areas — both clean, long-lasting and low-maintenance. Browse the full rubber chippings range, work out quantities with our coverage calculator, and read how to prepare and install them.
Browse playground rubber chippings at Rackerman →
Frequently Asked Questions
What is the best surface for a playground?
There's no single best surface — it depends on the equipment's fall height, budget and look. Rubber mulch, wet pour and thick rubber tiles all provide high impact protection. Rubber mulch (chippings) is the most popular all-rounder for cost, low maintenance and good fall protection at the right depth.
What is the safety standard for playground surfacing?
UK playground surfacing must meet BS EN 1177, which tests impact attenuation and sets each surface's Critical Fall Height. The surface's CFH must equal or exceed the free height of fall of the equipment, with equipment itself covered by BS EN 1176.
What is critical fall height?
Critical Fall Height (CFH) is the maximum height from which a fall onto a surface keeps the impact within safe limits under BS EN 1177. It depends on the surface type and its depth or thickness, and must be at least as high as your equipment's fall height.
How deep should rubber mulch be for a playground?
As a loose-fill safety surface, rubber mulch typically needs a depth of around 250–300mm to achieve a useful Critical Fall Height, and installers often lay 350–400mm so it stays compliant as it settles and compacts. Shallower depths suit paths and landscaping rather than fall protection.
How thick do rubber playground tiles need to be?
It depends on the fall height: roughly 40mm tiles for up to about 1.0–1.2m, 50mm for up to 1.5–1.8m, 65mm for up to 2.0–2.5m and 80mm for up to about 3.0m. Always match the tile's rated CFH to your equipment.
How much does playground surfacing cost?
As a 2026 guide, wet pour costs around £30–£90 per m² and rubber mulch around £40–£100 per m² installed, with tiles and grass mats varying by thickness. Loose bark, sand and gravel are cheaper up front but cost more in maintenance over time.
Are rubber chippings safe for playgrounds?
Yes. Rubber chippings (rubber mulch) are a recognised impact-absorbing playground surface that, at the right depth, provide a high Critical Fall Height under BS EN 1177. They are permeable, low-maintenance and don't rot or scatter like bark, making them a popular safe surfacing choice.
Is rubber mulch better than bark for play areas?
Generally yes. Rubber mulch lasts far longer, doesn't decompose or hold water, scatters less and needs little maintenance, whereas bark rots, compacts and must be topped up regularly. Bark is cheaper initially but rubber mulch usually wins over its lifetime.
Can you put playground surfacing over grass?
Rubber grass mats are designed to lay over existing grass, which grows through for a natural look while the mat adds impact protection to around 1.0–1.3m CFH. For higher equipment, a prepared base with mulch, wet pour or thicker tiles is needed.
How long does rubber playground surfacing last?
Quality rubber surfacing lasts many years — rubber chippings and wet pour are made from durable recycled rubber that resists rot and weathering. Lifespan depends on use and maintenance; see our guide on how long rubber chippings last for detail.
