5-bar rubber garage flooring — by the metre
A heavy-duty rubber matting roll with a raised 5-bar (five-line) tread, cut to length from a 1.5m-wide roll. Turns cold, dusty concrete into a clean, grippy, hard-wearing floor for garages, home gyms, workshops, vans and utility rooms — resisting oil, water and daily wear.
How much do you need?
Pick your floor area and we'll work out exactly what to order, and the price. Larger areas are made up from more than one roll, laid end-to-end.
✓ Free UK delivery — already included in the price
Length is rounded up to the next whole metre. Larger areas are supplied as more than one roll, laid end-to-end — the price shown is the exact total. Add a little extra for trimming and joins.

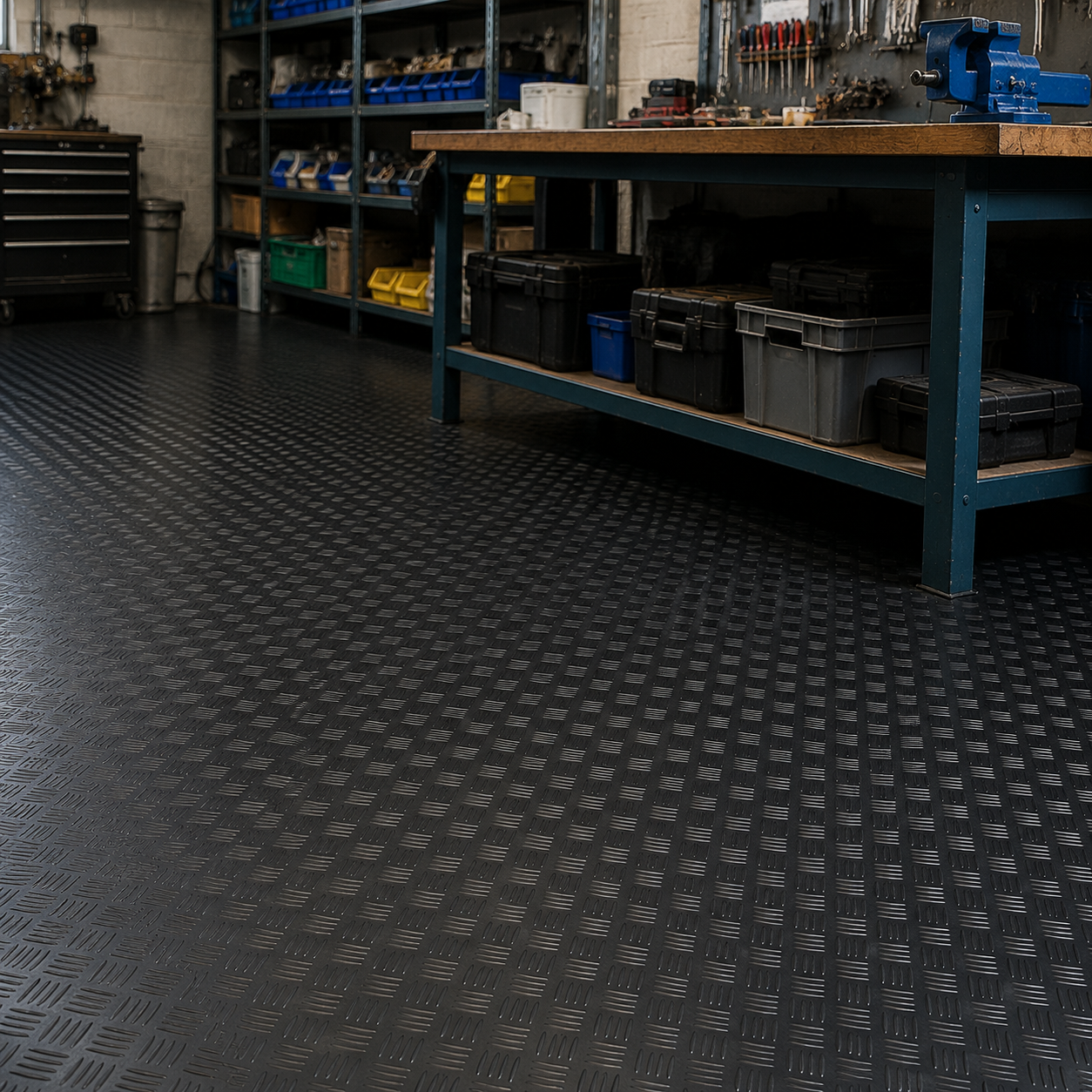

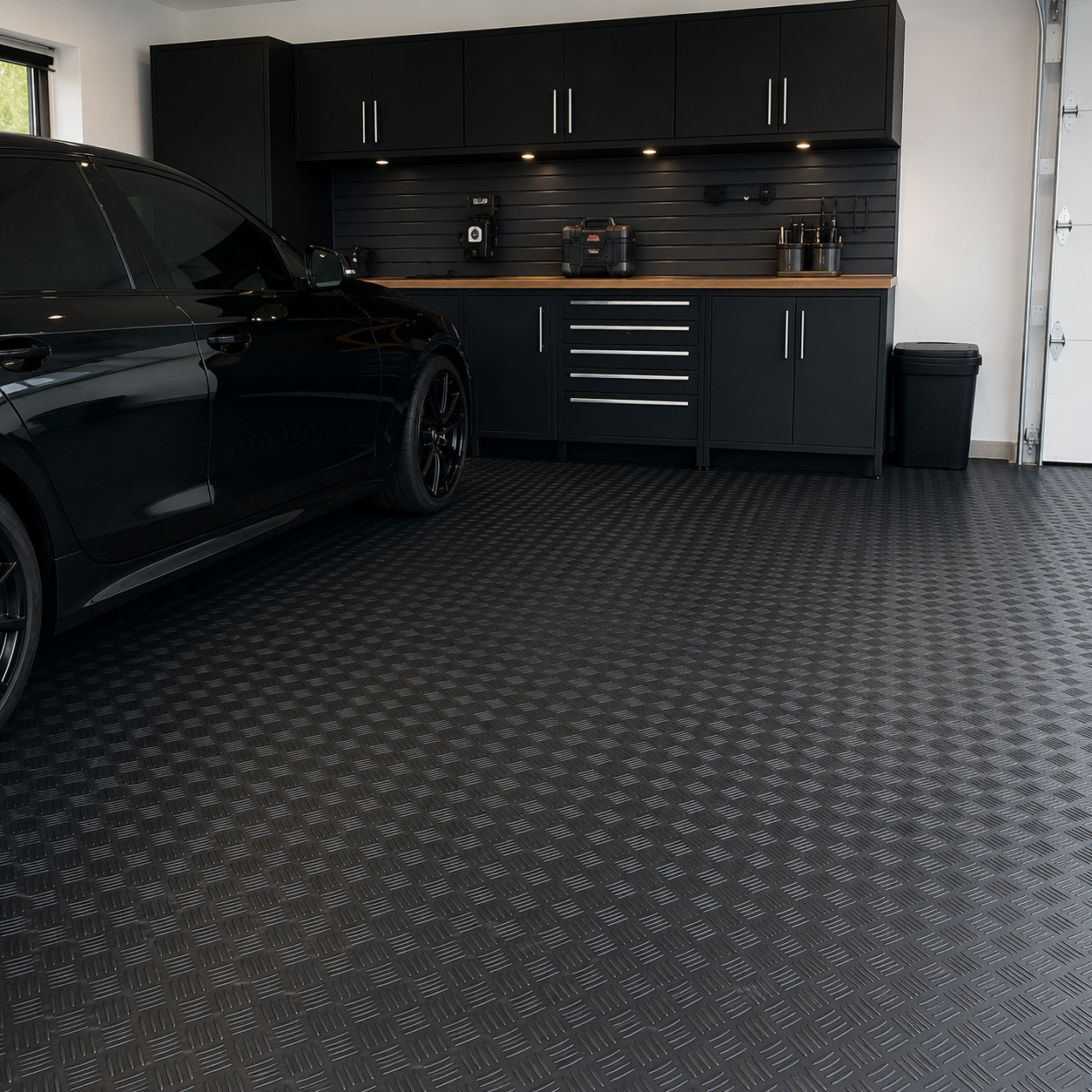

Where it's used
One tough floor for the spaces that take a beating — swipe through real settings.
Rubber roll vs interlocking tiles vs mats
For covering a whole garage floor, a roll is the fastest, cheapest, seam-free option.
| Rubber roll | Interlocking tiles | Loose mats | |
|---|---|---|---|
| Coverage speed | Fast — roll it out | Slower — clip each tile | Spot coverage only |
| Joins / seams | Few — full-width sheet | Many tile seams | Lots of edges |
| Cost to cover a garage | Lowest | Higher | N/A for full floors |
| Best for | Full garage, gym & workshop floors | Small / awkward spaces | Workbenches, doorways |
Which surface do you need?
See every finish — coin, smooth, diamond checker and 5-bar — in our rubber garage flooring collection.
Specification
- Type: Heavy-duty rubber matting roll (garage / gym flooring)
- Thickness: Heavy-duty
- Width: 1.5m (1500mm) — sold by the linear metre

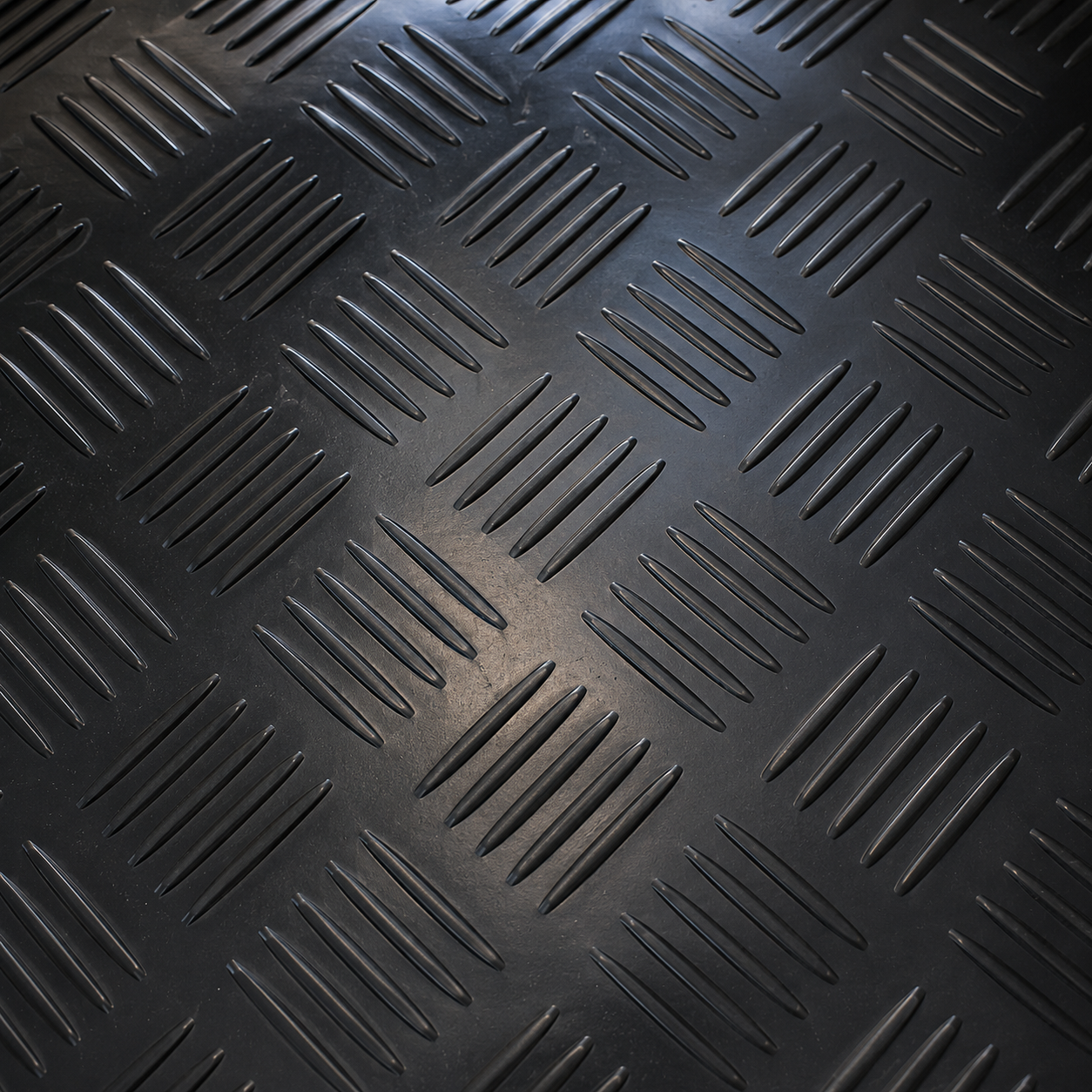

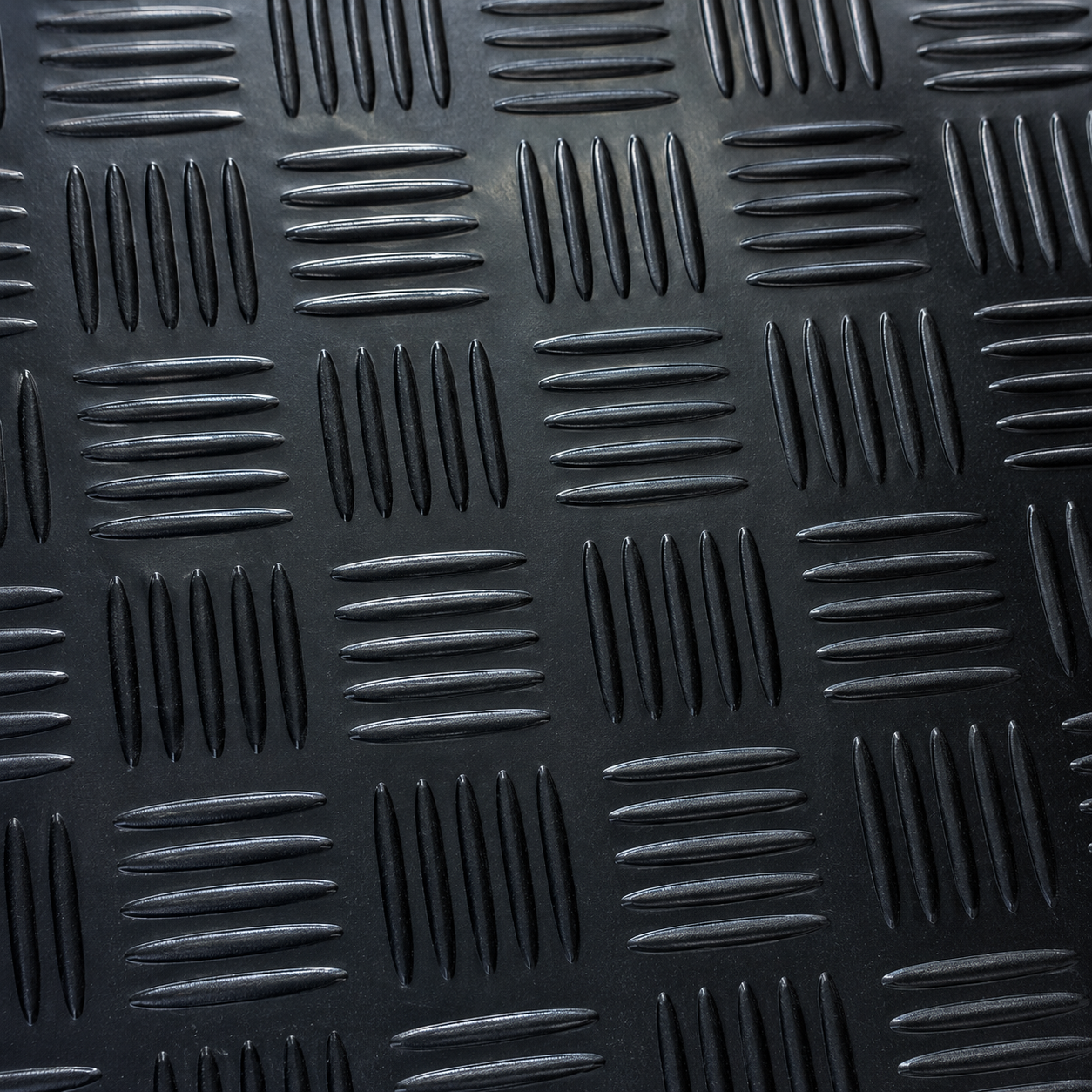

- Surface: Raised 5-bar (five-line) tread
- Colour: Black
- Approx weight: ~4 kg per m²

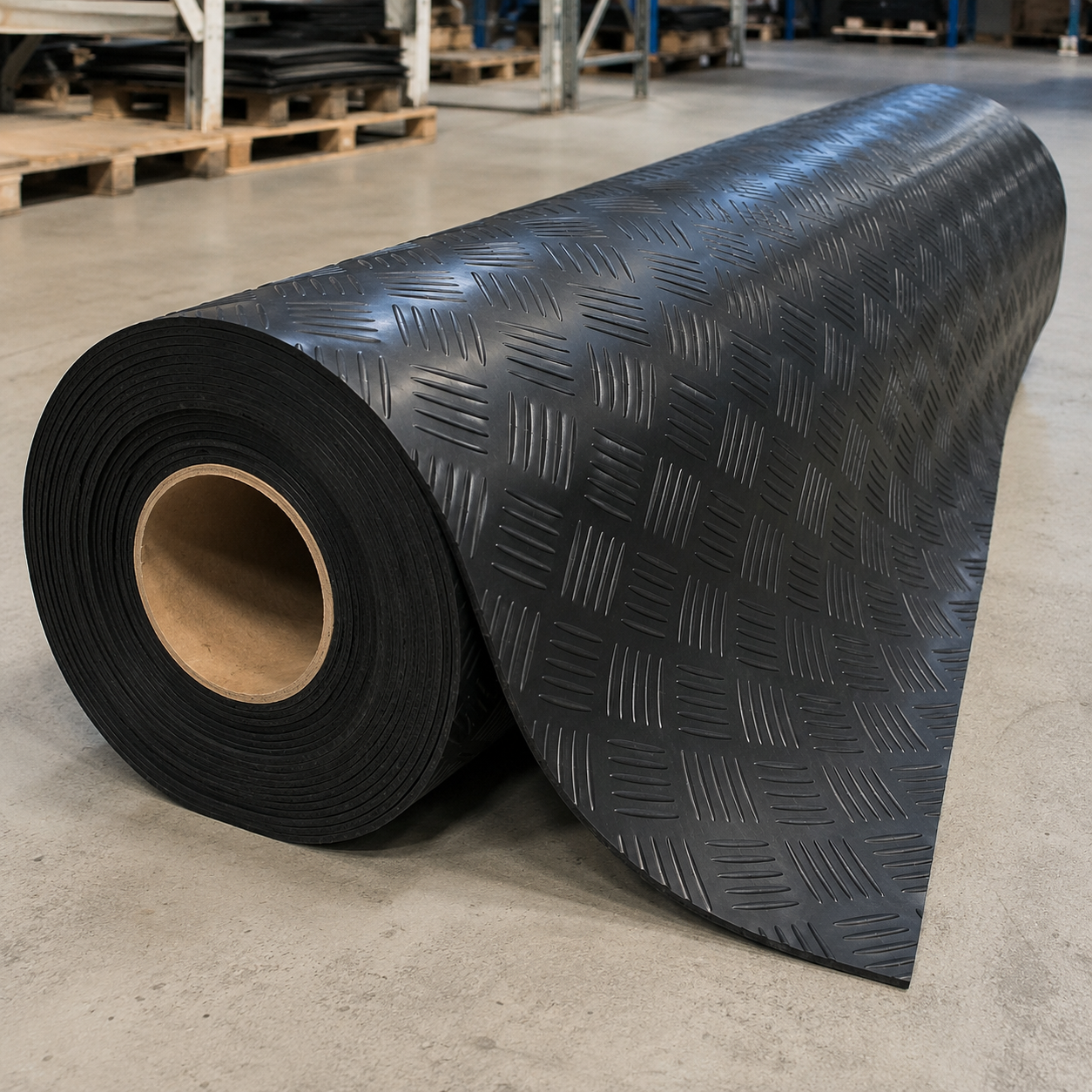

- Format: Cut from a continuous roll to your length; lengths sit edge-to-edge
- Fitting: Loose-lay or bond with adhesive / double-sided tape; trims with a sharp knife
Good to know
1.5m wide rubber garage flooring roll in 3mm thickness with a five-bar checker plate surface pattern for anti-slip grip. Supplied in a continuous roll — order the length you need and cut to fit on site.
Designed for garages, workshops, utility rooms, vans, trailers, commercial spaces and any concrete floor where protection from oil, grease, impact and daily wear is needed. The raised checker plate pattern gives grip in wet and oily conditions.
Specification
| Width | 1.5m |
|---|---|
| Thickness | 3mm |
| Pattern | Five-bar checker plate (Durbar style) |
| Material | Rubber |
Installation
Roll out on a clean, dry concrete floor. The weight of the rubber holds it flat in most applications. For vehicle traffic or high-footfall areas, secure the perimeter with double-sided flooring tape or contact adhesive. Cut to length with a sharp Stanley knife — score the back and snap for straight cuts.
Oil and Chemical Resistance
Rubber flooring resists oil, fuel, grease and most automotive chemicals. Spills wipe up without staining the floor beneath. The impervious surface prevents oil and fluids from reaching the concrete.
