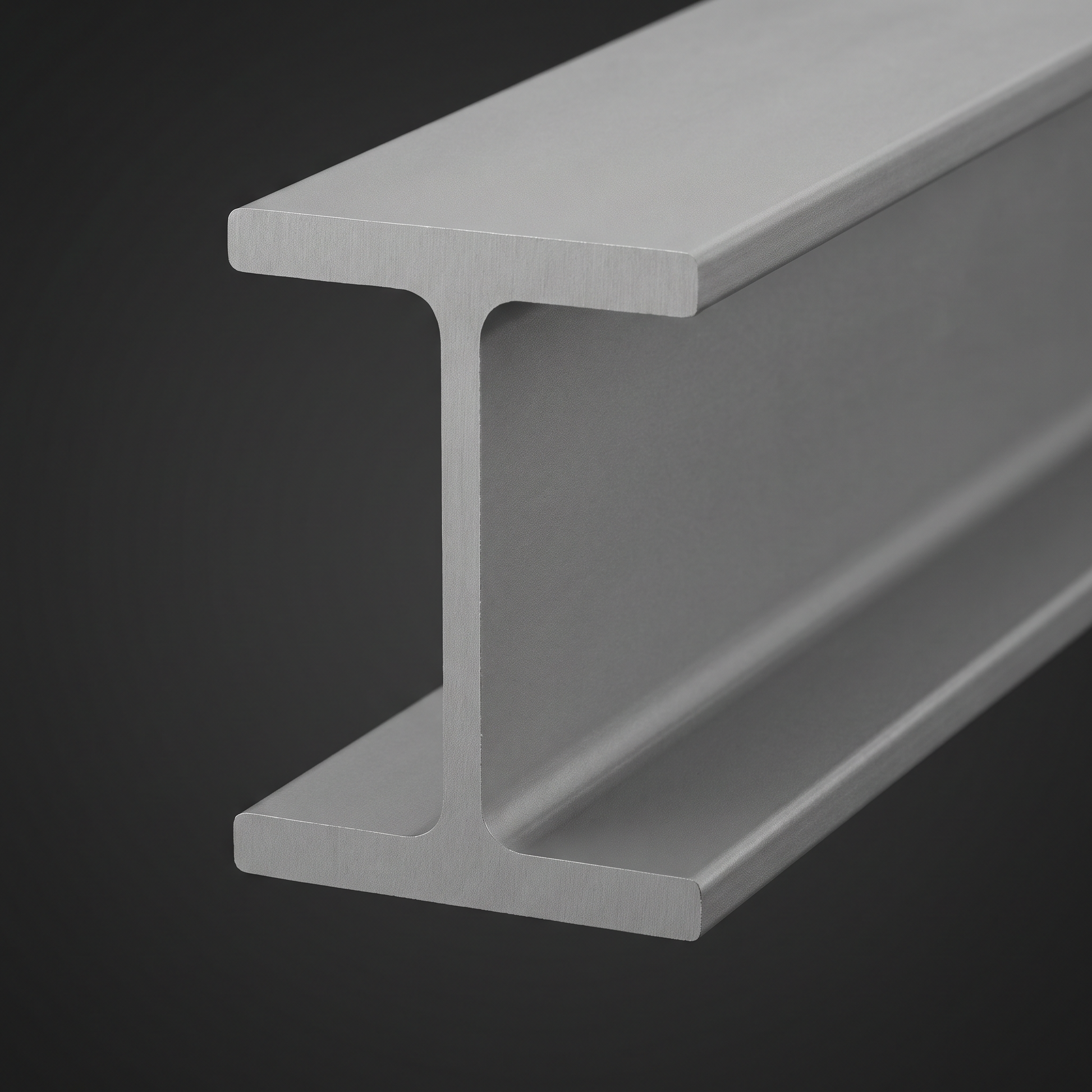

  • 152 x 89 UB16 rolled steel joist, I-section profile, S355J0 grade

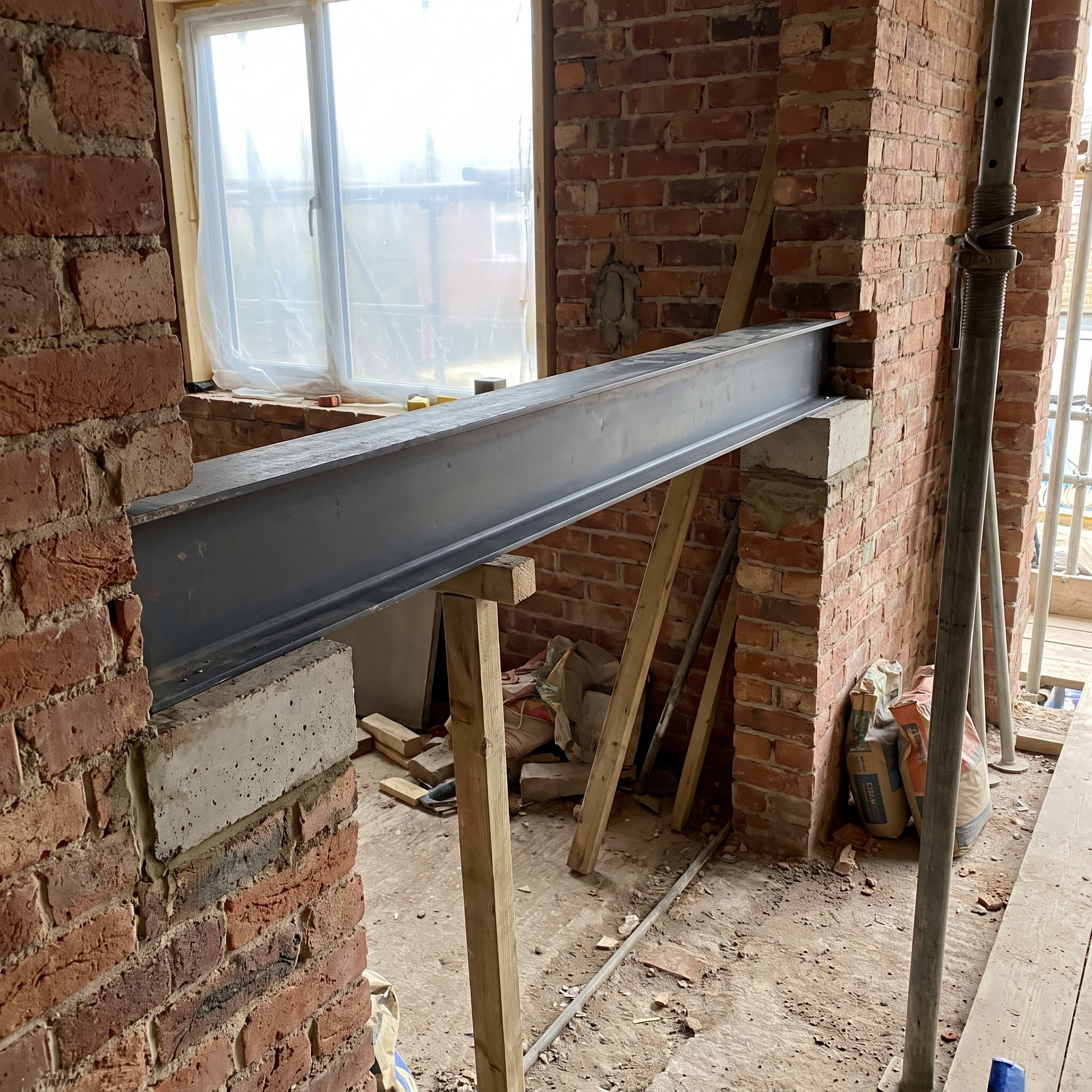

  • 152 x 89 UB16 universal beam for lintels and load-bearing wall openings
  • 152 x 89 UB16 steel beam RSJ cut to length, plus or minus 3mm tolerance
  • 152 x 89 UB16 S355J0 structural steel beam, flange and web detail
  • 152 x 89 UB16 universal beam RSJ for loft conversions and extensions
  • 152 x 89 UB16 mild steel universal beam to BS EN 10025-2, grade S355J0
  • 152 x 89 UB16 steel beam RSJ, cut to size with free UK mainland delivery
1 10

152 x 89 UB16 Steel Beam RSJ – S355J0 Universal Beam & Rolled Steel Joist, Cut to Size to Any Length, Structural Lintel for Load-Bearing Walls

152 x 89 UB16 Steel Beam RSJ – S355J0 Universal Beam & Rolled Steel Joist, Cut to Size to Any Length, Structural Lintel for Load-Bearing Walls

★★★★★
Excellent Read our reviews on Trustpilot
£49.95 GBP
£49.95 GBP
£49.95/m
(£41.63 ex VAT) Sale Sold out
Taxes included. Shipping calculated at checkout.
Cut-to-Size Calculator ✓ Free cutting
152 x 89 UB16 · cut to your exact length · delivered free
Enter cut length (mm)
Length (mm)Qty
No cuts added yet — enter a length above and click Add Cut
Delivery in 5-10 working days
Estimated: Wed 29 Jul – Wed 5 Aug
Free UK mainland delivery Flat-bed lorry — customer offload
View full delivery policy
View full details

Not sure what size you need? View our RSJ Beam Size Guide — span guidance, section comparisons and planning advice for all standard UK sections.

The 152 x 89 UB16 is an S355J0 structural steel universal beam (RSJ) weighing 16 kg per metre. Available in mill finish or red oxide primer, cut to your exact required length from 1m to 12m using our online cut-to-size calculator. Commonly specified for building openings, domestic and light commercial steelwork, secondary beam supports, mezzanine structures and fabricated steel frames where this section has been confirmed by a structural engineer.

Steel Grade and Specification

Supplied in S355J0 structural steel conforming to BS EN 10025-2, with a minimum yield strength of 355 MPa. The section designation 152 x 89 UB16 refers to a nominal depth of 152.4mm, nominal flange width of 88.7mm and a linear mass of 16 kg/m. Full section properties are published under BS EN 10365:2017. See our steel grades and standards guide for more on S275 and S355.

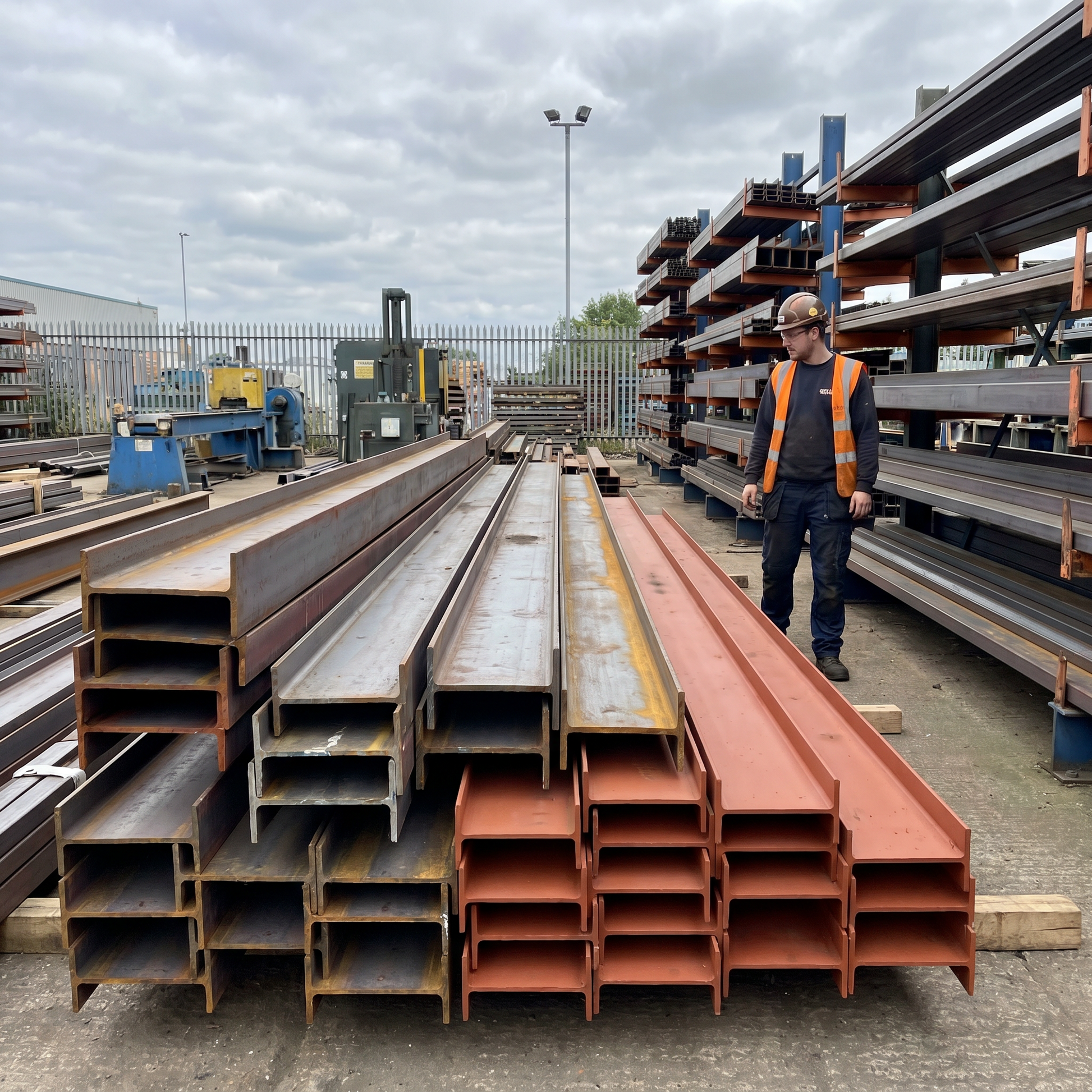

Available Finishes

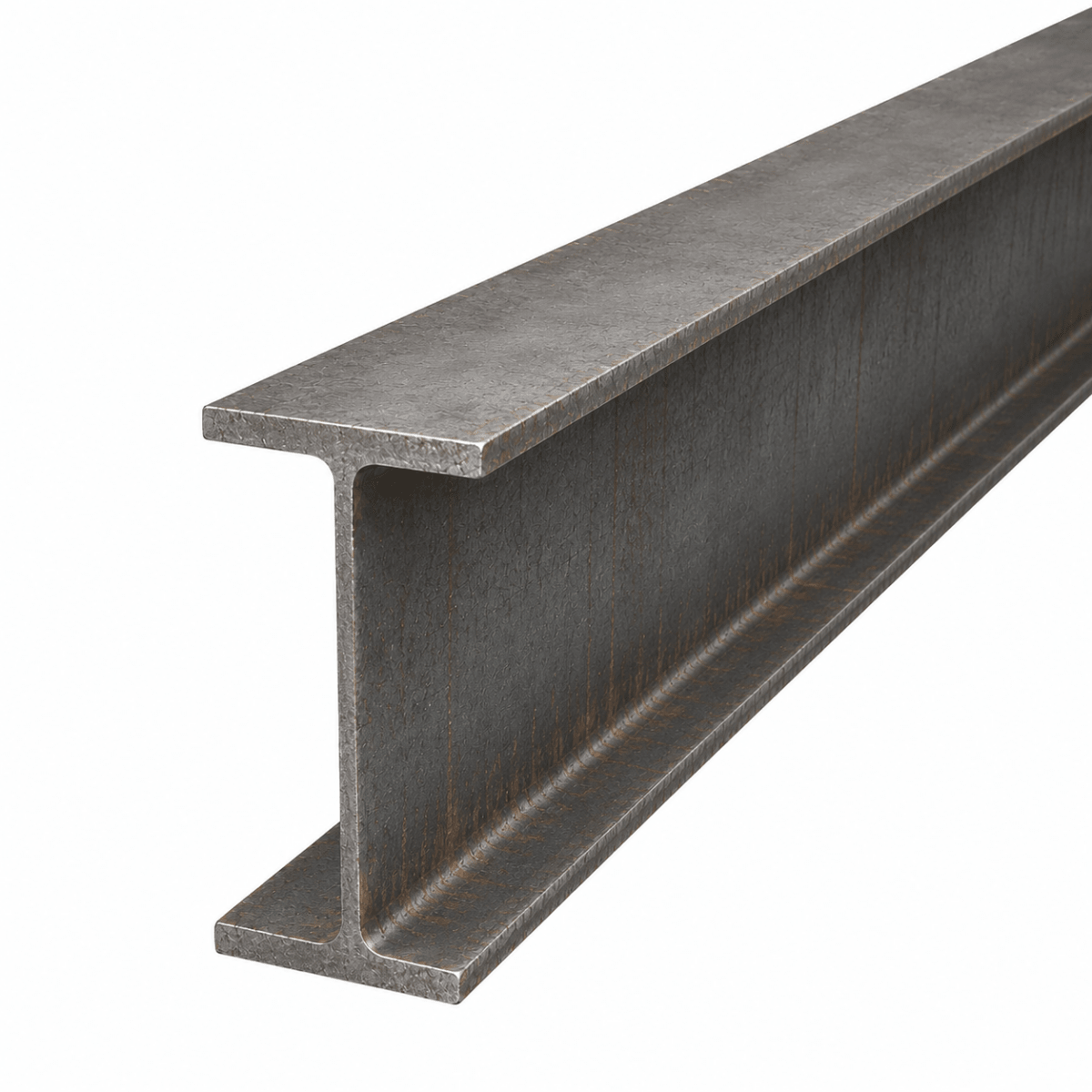

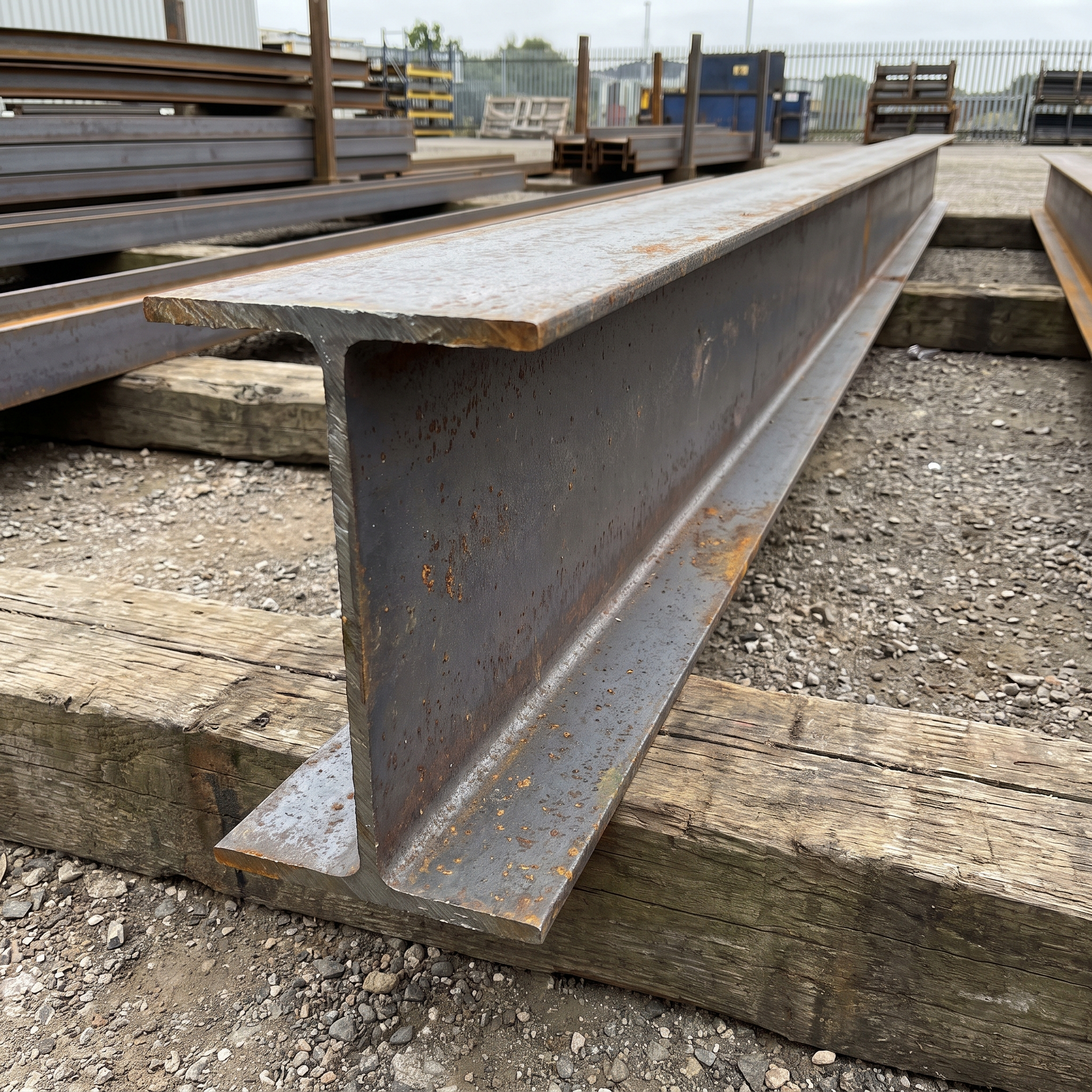

Mill finish is supplied as-rolled with natural mill scale — the standard untreated surface straight from manufacture. Suitable for internal structural use where a protective coating will be painted or applied on site.

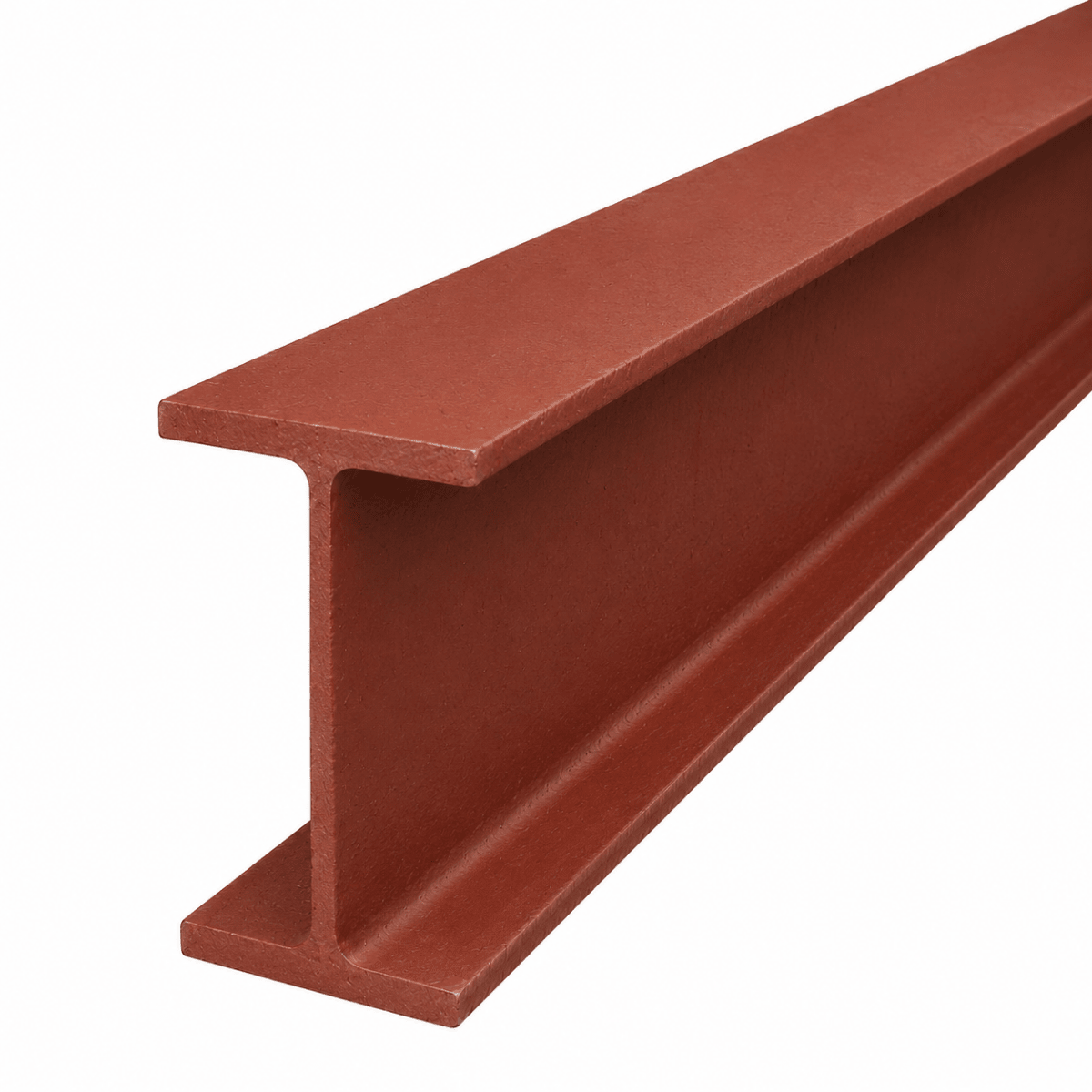

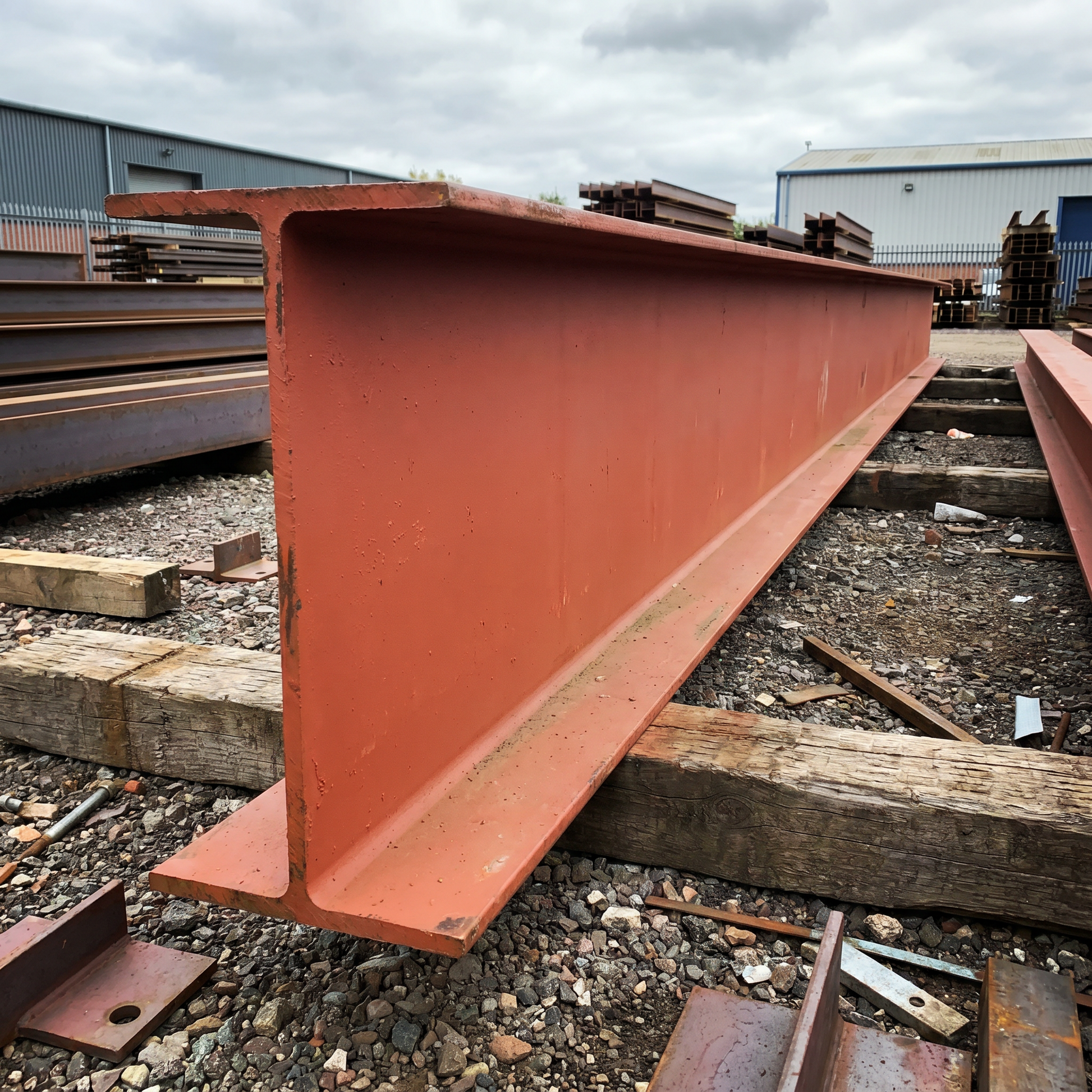

Red oxide primer provides a shop-applied primer coat offering temporary corrosion protection during transport, storage and installation. Both finishes are structurally identical — the choice depends on your project specification and site requirements.

Cut to Size

Use our cut-to-size calculator above to enter your exact required length in mm. Steel is supplied in whole metres, so we add up everything you need and round the total up to the next full metre — two 4.2m cuts use 8.4m of steel and are billed as 9m, not 10m. The cutting itself is free of charge. Multiple cuts and quantities can be added in a single order, and all cuts are to +/- 3mm tolerance. Maximum single length is 12m. Cut-to-length steel is made to your specification and is non-returnable unless faulty or supplied incorrectly.

Section Dimensions

Depth (h): 152.4mm | Width (b): 88.7mm | Web thickness (s): 4.5mm | Flange thickness (t): 7.7mm | Root radius (r): 7.6mm | Depth between fillets (d): 121.8mm | Mass: 16.0 kg/m

152 × 89 UB16 — S355J0 Universal Beam 152.4mm depth, h 88.7mm · width, b 121.8mm between fillets, d 7.7mm flange, t r 7.6mm root radius 4.5mm web, s

Section Properties (to BS EN 10365)

Published section properties for the 152 x 89 x 16 UB. Figures are nominal and for reference only — your structural engineer will confirm the values used in design.

Property Axis y-y (major) Axis z-z (minor)
Second moment of area, I 834 cm4 89.8 cm4
Radius of gyration, i 6.41 cm 2.10 cm
Elastic section modulus, Wel 109 cm3 20.2 cm3
Plastic section modulus, Wpl 123 cm3 31.2 cm3

Cross-sectional area: 20.3 cm2 | Torsion constant, IT: 3.56 cm4 | Mass: 16.0 kg/m

Structural Engineer Notice

The 152 x 89 UB16 must be specified by a qualified structural engineer before ordering. Rackerman does not provide structural design advice and cannot confirm suitability for any specific opening, span or load condition. Building regulations approval is required for all structural alterations.

Delivery Information

Lead times are currently 5–10 working days. Delivery is kerbside only — our vehicles do not carry HIAB or lifting equipment. Suitable offloading labour or equipment must be arranged on site. Some postcode exclusions apply. See how our RSJ steel beams are delivered for full details.

Related Sections

Need a different size? Browse related universal beams:

FREQUENTLY ASKED QUESTIONS

What is a 152x89 UB16 steel beam used for?

The 152x89 UB16 is a Universal Beam (UB) weighing 16 kg per metre, used for spanning horizontal loads such as wall openings, lintels and floor supports. At 152mm deep with 89mm flanges, it is commonly specified for domestic extensions, loft conversions, wall removals and light commercial steelwork. It is supplied in S355J0 grade to BS EN 10025-2.

How much does a 152x89 UB16 weigh?

The UB16 weighs 16 kg per metre. A 3m length weighs 48 kg, a 5m length weighs 80 kg, and a 6m length weighs 96 kg. Factor in the beam weight when planning delivery access and lifting on site — beams over 4m typically need two people or mechanical lifting.

Can the 152x89 UB16 be cut to a specific length?

Yes. This beam is supplied cut to your required length from 1m to 10m using the calculator on the product page. Enter the length in mm and the price adjusts automatically. Cuts are to +/- 3mm tolerance. The beam is supplied in mill finish and red oxide.

What is the difference between mill finish and red oxide on the UB16?

Mill finish is the raw steel surface as it comes from the rolling mill — dark grey with mill scale. Red oxide primer is a protective coating applied over the steel to prevent surface rust during storage and transit. Mill finish suits jobs where the beam will be painted, fire-protected or enclosed. Red oxide gives temporary corrosion protection for exposed steelwork awaiting permanent coating.

What is the delivery time for the 152x89 UB16?

Steel beams are delivered on a flatbed lorry within 5-10 working days to mainland UK. The customer is responsible for offloading — beams of this size typically require two people or a forklift. Ensure site access is suitable for a full-size flatbed vehicle.
