Where it's used
One versatile sheet for fabrication, construction and repairs — swipe through real settings for S275 mild steel sheet.
Which thickness do you need?
Twelve gauges from 0.8mm to 10mm. Tap a range to see what it's built for.
Sheet weight calculator
Steel is heavy — check the weight before it arrives so you can arrange offload.
Calculated for S275 mild steel (density 7.85 g/cm³). Weights are approximate. The 3000 × 1500mm size is stocked in 1.5mm and 3mm.
Thickness & weight chart
| Thickness | Weight (kg/m²) | 8×4 sheet | 2m × 1m sheet |
|---|---|---|---|
| 0.8mm | 6.3 | ~19.6 kg | ~12.6 kg |
| 1.5mm | 11.8 | ~36.8 kg | ~23.6 kg |
| 2mm | 15.7 | ~49.1 kg | ~31.4 kg |
| 3mm | 23.6 | ~73.6 kg | ~47.1 kg |
| 4mm | 31.4 | ~98.1 kg | ~62.8 kg |
| 6mm | 47.1 | ~147.2 kg | ~94.2 kg |
| 8mm | 62.8 | ~196.3 kg | ~125.6 kg |
| 10mm | 78.5 | ~245.3 kg | ~157.0 kg |
- Grade: S275 mild steel — 275 N/mm² minimum yield strength
- Thicknesses: 0.8, 1, 1.2, 1.5, 2, 2.5, 3, 4, 5, 6, 8 and 10mm
- Sizes: 2500 × 1250mm (8×4ft), 2000 × 1000mm (2m × 1m) & 3000 × 1500mm — supplied as full sheets
- Finish: Mill finish (untreated) — paint, prime or galvanise for outdoor use
- Cutting: Sold as full fixed sheets — not cut to size. Cuts, drills and welds with standard tools
Mild steel vs galvanised vs stainless
Mild steel is the cost-effective structural choice — here's how it compares.
| Feature | Mild Steel S275 | Galvanised | Stainless |
|---|---|---|---|
| Cost | Lowest | Mid | Highest |
| Strength / structural | High | High | High |
| Weldability | Excellent | Good (fumes) | Specialist |
| Corrosion resistance | Low (untreated) | Good | Excellent |
| Best for | Fabrication, base plates, structural | Outdoor / exposed | Hygiene, marine, finish |
Need corrosion resistance? See our galvanised steel sheet range.
Common uses

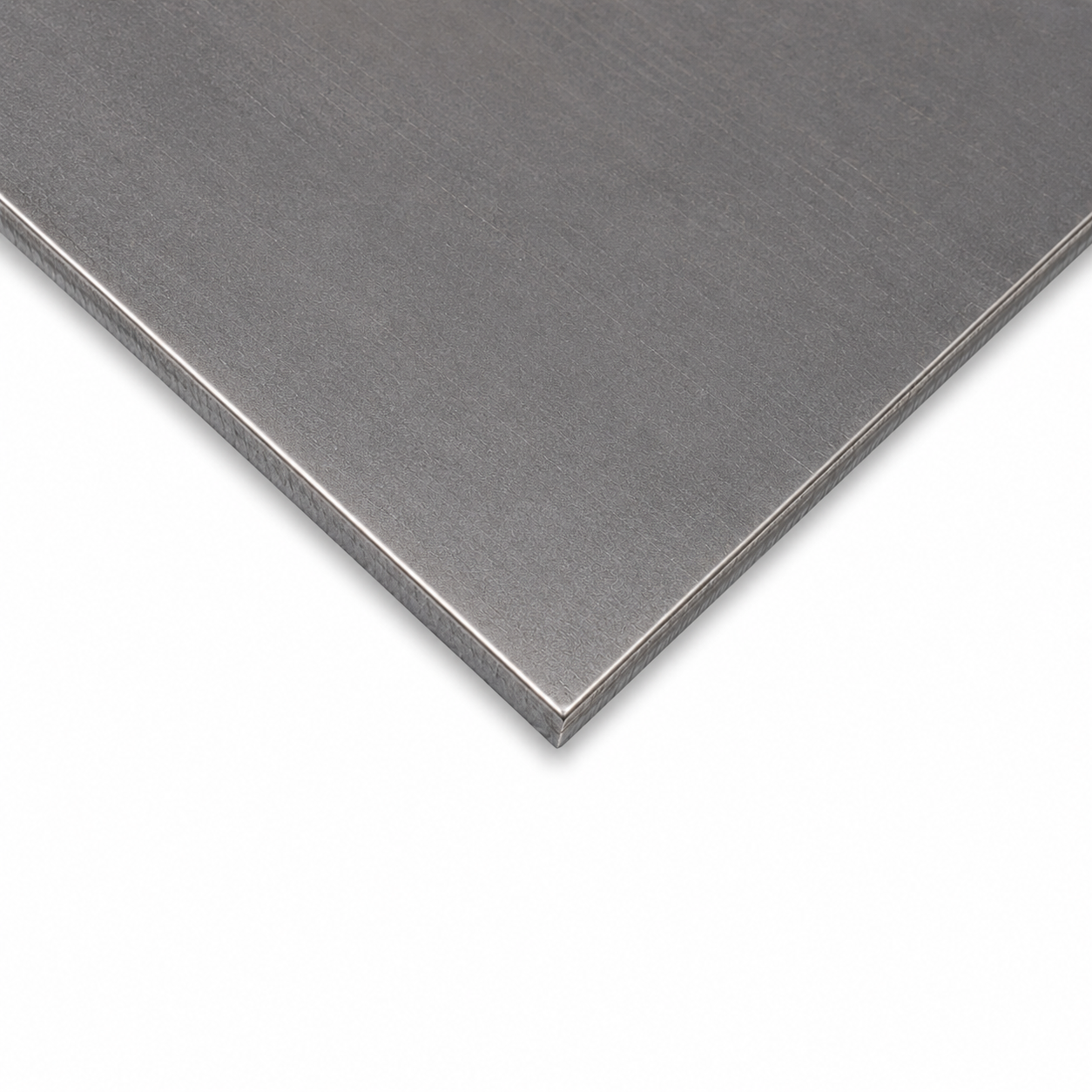

Our 2000 x 1000mm (2m x 1m) mild steel sheet — also known as mild steel plate, steel plate or sheet steel — is supplied in S275 grade across twelve thicknesses from 0.8mm to 10mm. This hot-rolled steel sheet and plate suits everything from light sheet-metal panels through to heavy structural plate, in a metre-wide size that's easy to handle and cut.
Technical Specification
| Material | S275 mild steel (hot-rolled) |
| Minimum yield strength | 275 N/mm2 |
| Sheet size | 2000 x 1000mm (2m x 1m) |
| Thicknesses available | 0.8mm - 10mm |
| Density | 7,850 kg/m3 |
| Weight | Approx. 12.56 kg (0.8mm) to 157 kg (10mm) per sheet |
| Finish | Mill finish (untreated) |
| Weldability | Good - suitable for standard MIG/MAG, MMA and TIG welding |
| Machinability | Good - drills, cuts and laser/plasma cuts cleanly |
| Formability | Good cold-forming in thinner gauges; thicker plate suits hot forming |
| Corrosion resistance | Low untreated - paint, prime or galvanise for outdoor use |
| Lead time | 3-5 working days (mainland UK; up to 10 to remote areas) |
Thickness Options and Weights
Available thicknesses and approximate full-sheet weights:
0.8mm - approx 12.56 kg per sheet
1mm - approx 15.7 kg per sheet
1.2mm - approx 18.84 kg per sheet
1.5mm - approx 23.55 kg per sheet
2mm - approx 31.4 kg per sheet
2.5mm - approx 39.25 kg per sheet
3mm - approx 47.1 kg per sheet
4mm - approx 62.8 kg per sheet
5mm - approx 78.5 kg per sheet
6mm - approx 94.2 kg per sheet
8mm - approx 125.6 kg per sheet
10mm - approx 157 kg per sheet
Popular gauges include 2mm and 3mm mild steel sheet for general fabrication, and 3mm, 5mm and 6mm steel plate for brackets and base plates. Finish: mill finish (untreated steel).
Common Uses
S275 mild steel sheet and plate is used across fabrication, construction and general engineering. Common applications include base plates, gusset plates, brackets, machine guards, fabrication blanks, repair plates, infill panels, gate and railing work, and general metalwork. The 2000 x 1000mm size suits general workshop and fabrication use where a metre-wide sheet is convenient to handle and cut.

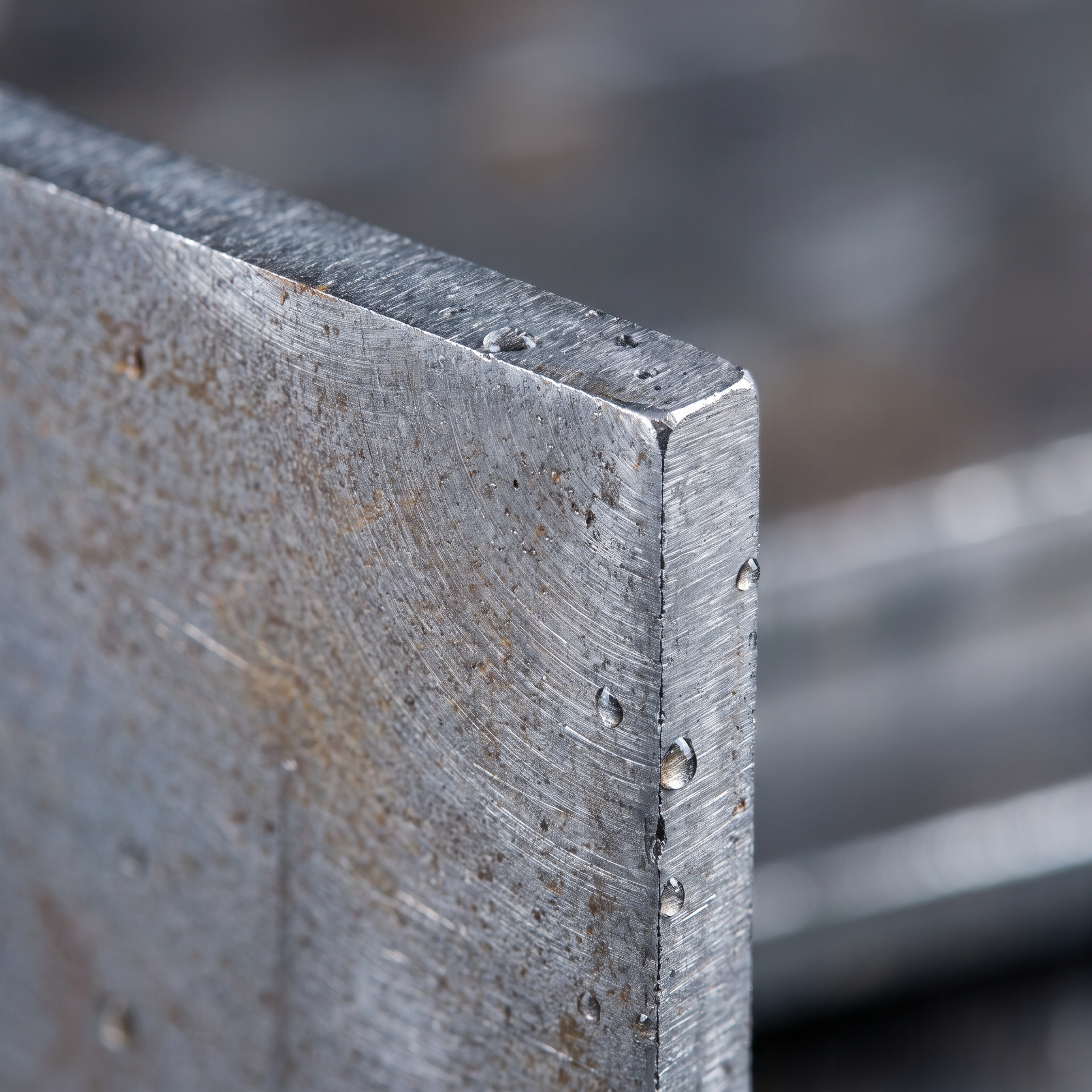

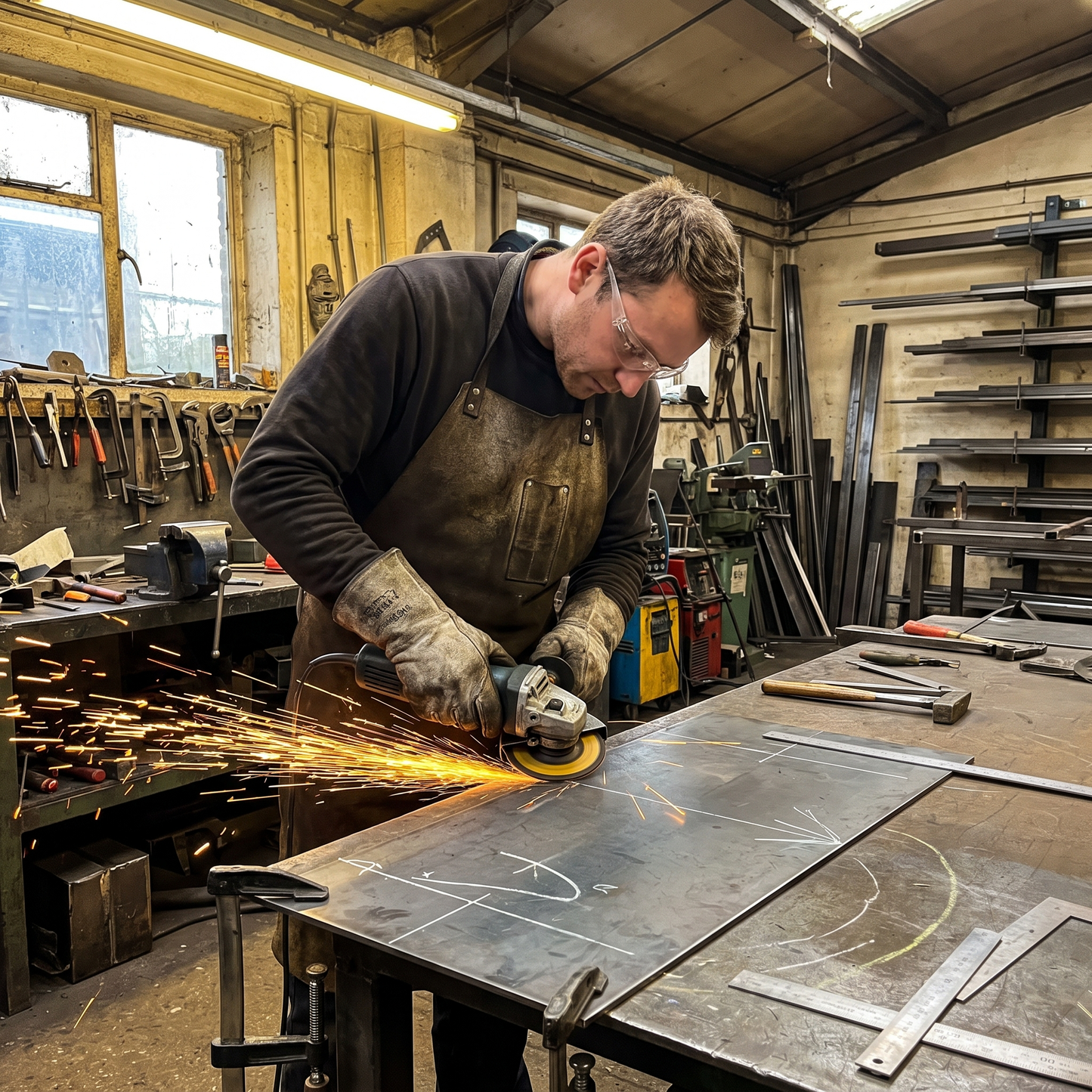

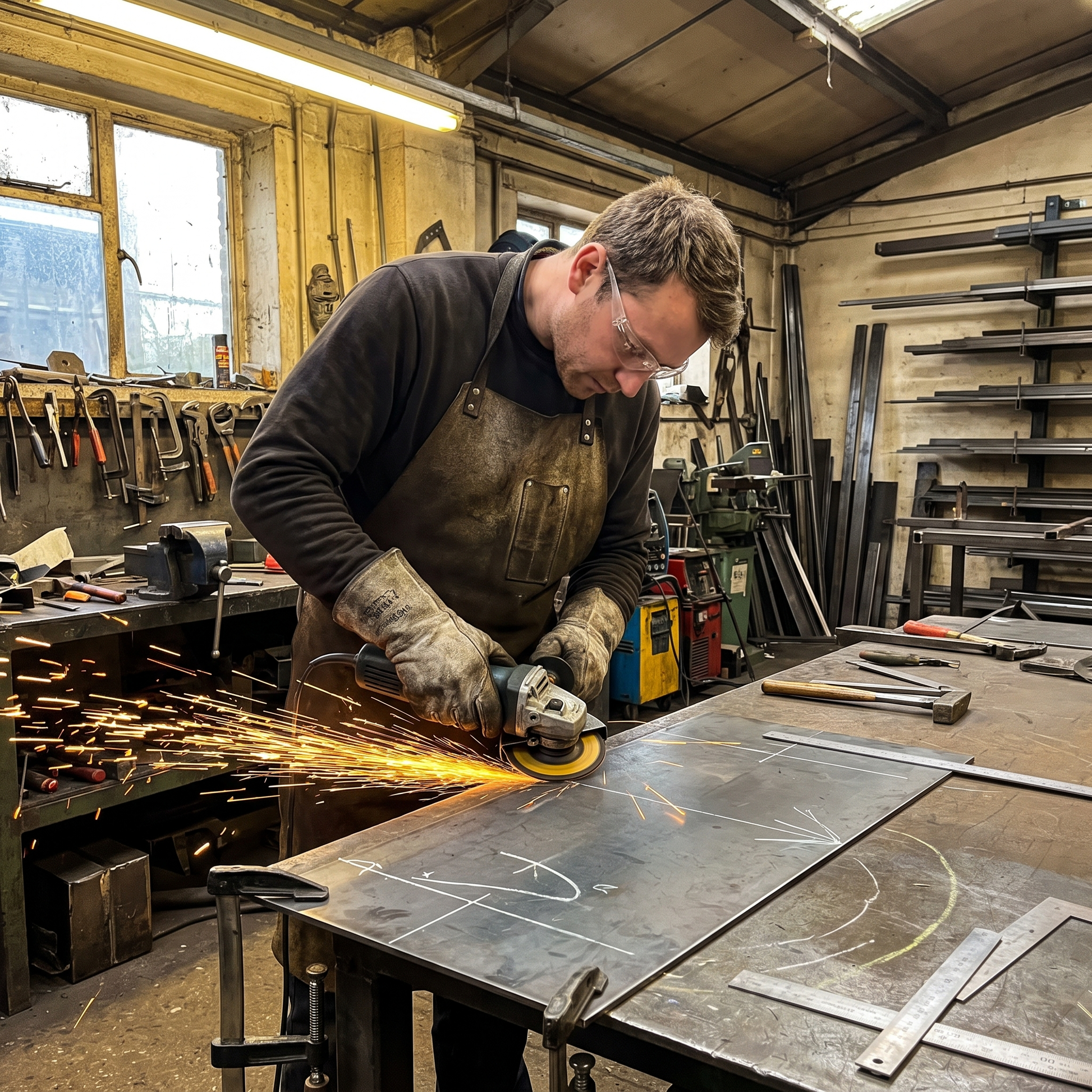

Workability
S275 mild steel sheet and plate can be cut, drilled, bent, welded and fabricated using standard steelwork methods. It is suitable for painting, priming or galvanising after fabrication where corrosion protection is required.
Mild Steel Sheet and Plate vs Other Materials
S275 mild steel offers strength and weldability at low cost, making it the standard choice for structural and fabrication work. Where corrosion resistance is the priority, galvanised steel sheet or stainless steel may be more suitable. Aluminium is lighter but weaker and is not a like-for-like substitute for structural applications.
Delivery Information
Lead times are currently 3-5 working days for mainland UK, with a maximum of 10 working days to remote areas. Mainland UK delivery only. Sheets are heavy items - please ensure suitable access is available for delivery at your site.
