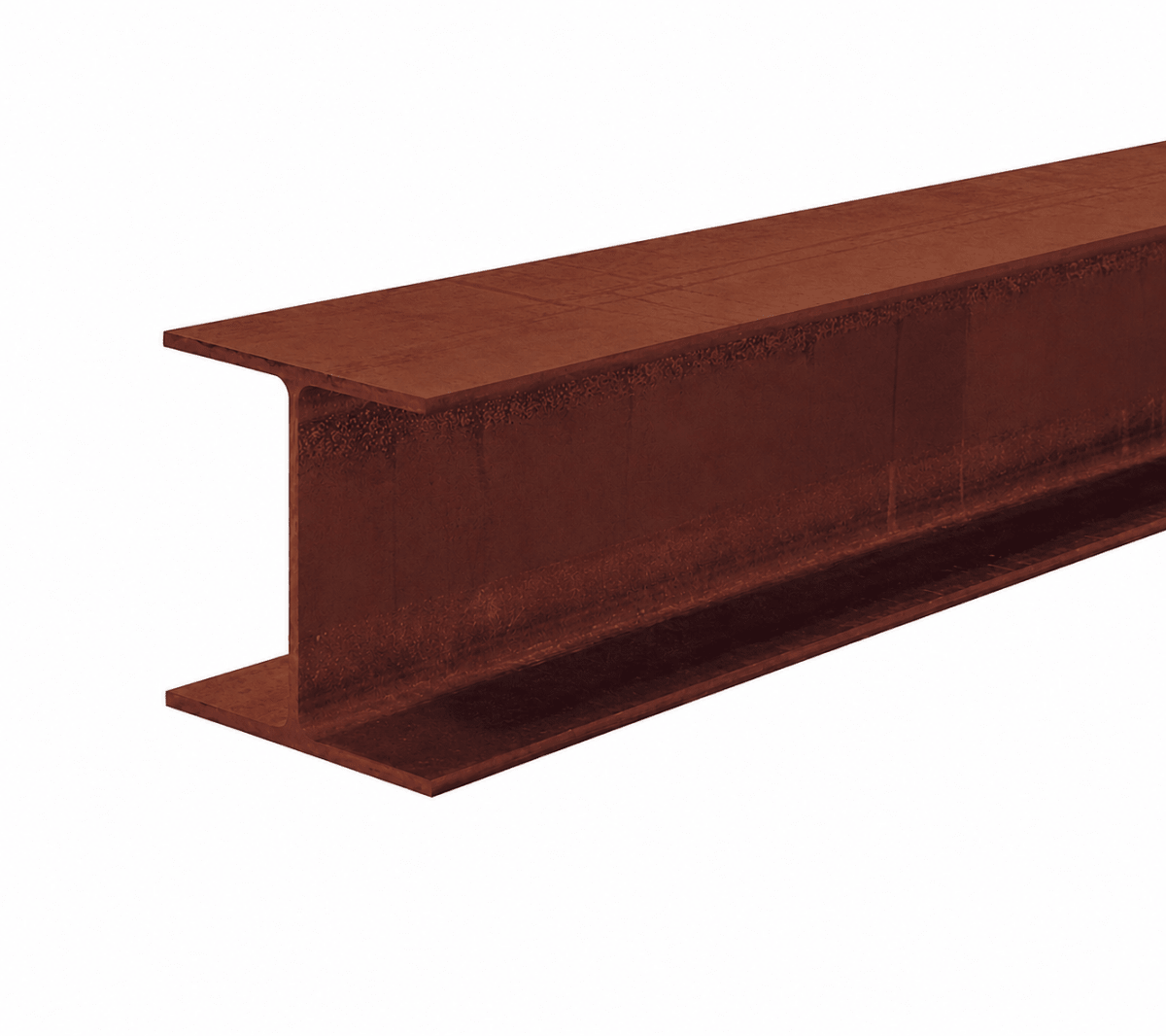

The 203 x 203 UC52 universal column is the second section in the 203 x 203 range and one of the most commonly specified columns in UK light-commercial and larger residential steelwork. At 52kg per metre with a 12.5mm flange, it carries meaningfully more than the UC46 while sharing the same 203mm nominal footprint — so it is often the straight substitution when a design comes back short. Rolled to S355J0 and supplied cut free to any length from 1m to 12m in mill finish or red oxide primer, with free UK mainland delivery included in the price.
Steel grade — S355J0 to BS EN 10025-2
This column is rolled in S355J0: a 355 N/mm² minimum yield structural steel with impact toughness certified at 0°C. S355 is the grade UK structural engineers design to by default, carrying roughly 29% more yield strength than the older S275 material some merchants still stock. If your engineer has calculated to S275, an S355 section of the same size will always satisfy that design — but never substitute in the opposite direction without going back to them first.
For a fuller comparison see our guide to S275 vs S355 steel, or the steel grades & standards reference for the full specification we supply against.
The easiest upgrade in the range
Because the UC46 and UC52 share the same serial size, swapping between them changes very little on the drawing. Depth goes 203.2mm to 206.2mm and width 203.6mm to 204.3mm — a 3mm difference that base plates, padstones and cladding details will almost always absorb without redesign.
What changes is the steel: the flange thickens from 11mm to 12.5mm, lifting minor-axis stiffness from 1,548 cm⁴ to 1,777 cm⁴ and the plastic modulus about the weak axis from 230.8 cm³ to 264.2 cm³. That is roughly 15% more capacity for 13% more weight, with no practical change to how the column is built in.
Where a UC46 has come back marginal, this is almost always a cheaper answer than moving to 254 x 254 — that jump means new base plates, bigger padstones and a visibly larger column. See UB vs UC, what UK builders actually specify, and the UK steel beam size chart for every size with weights.
Where the UC52 is typically used

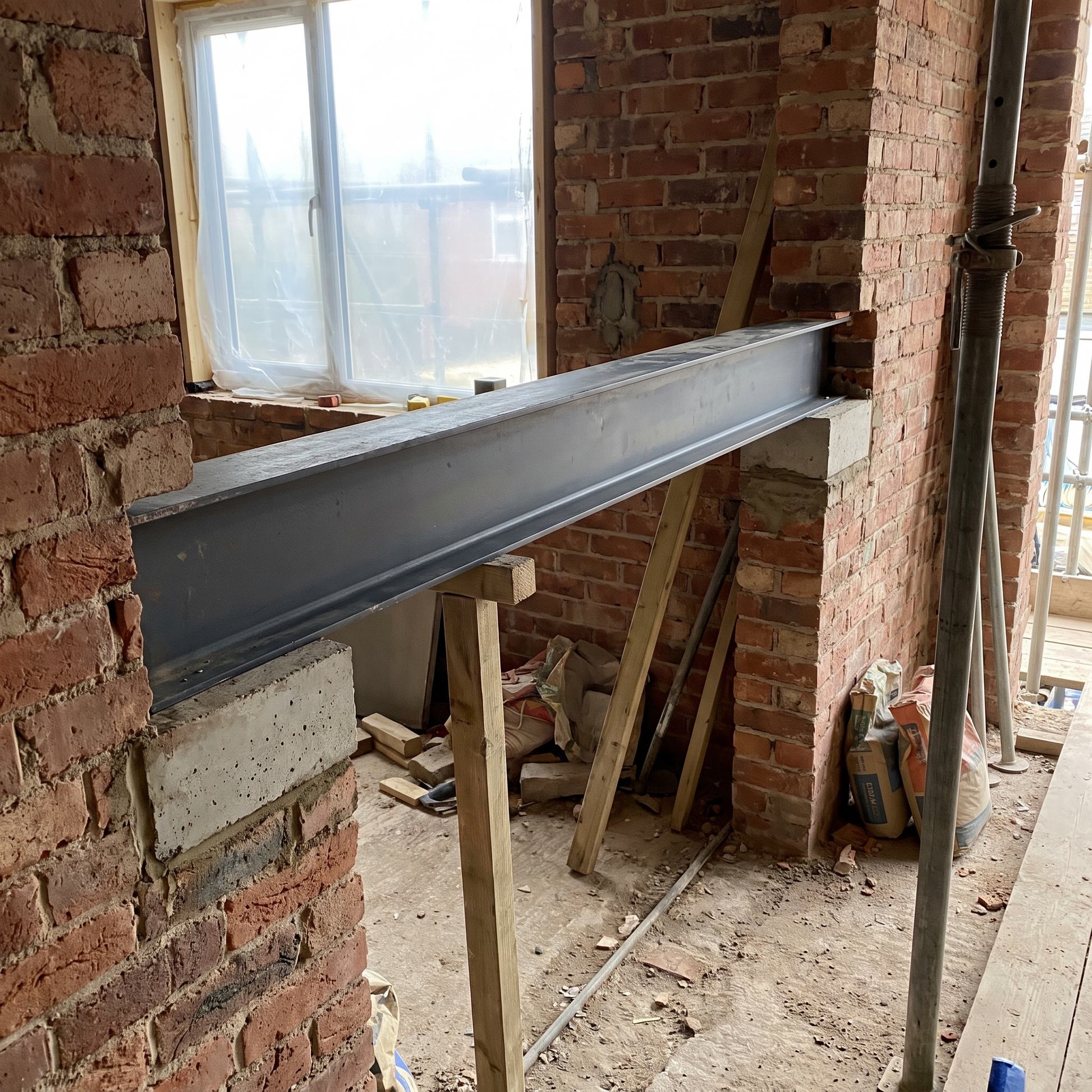

Multi-storey posts in steel-framed extensions, mezzanine and warehouse racking support frames, columns carrying two beams at a corner junction, and the main uprights in open-sided structures such as car ports and canopies. It also appears in whole-width load-bearing wall removals where the column takes load from the storey above as well as the beam it supports.

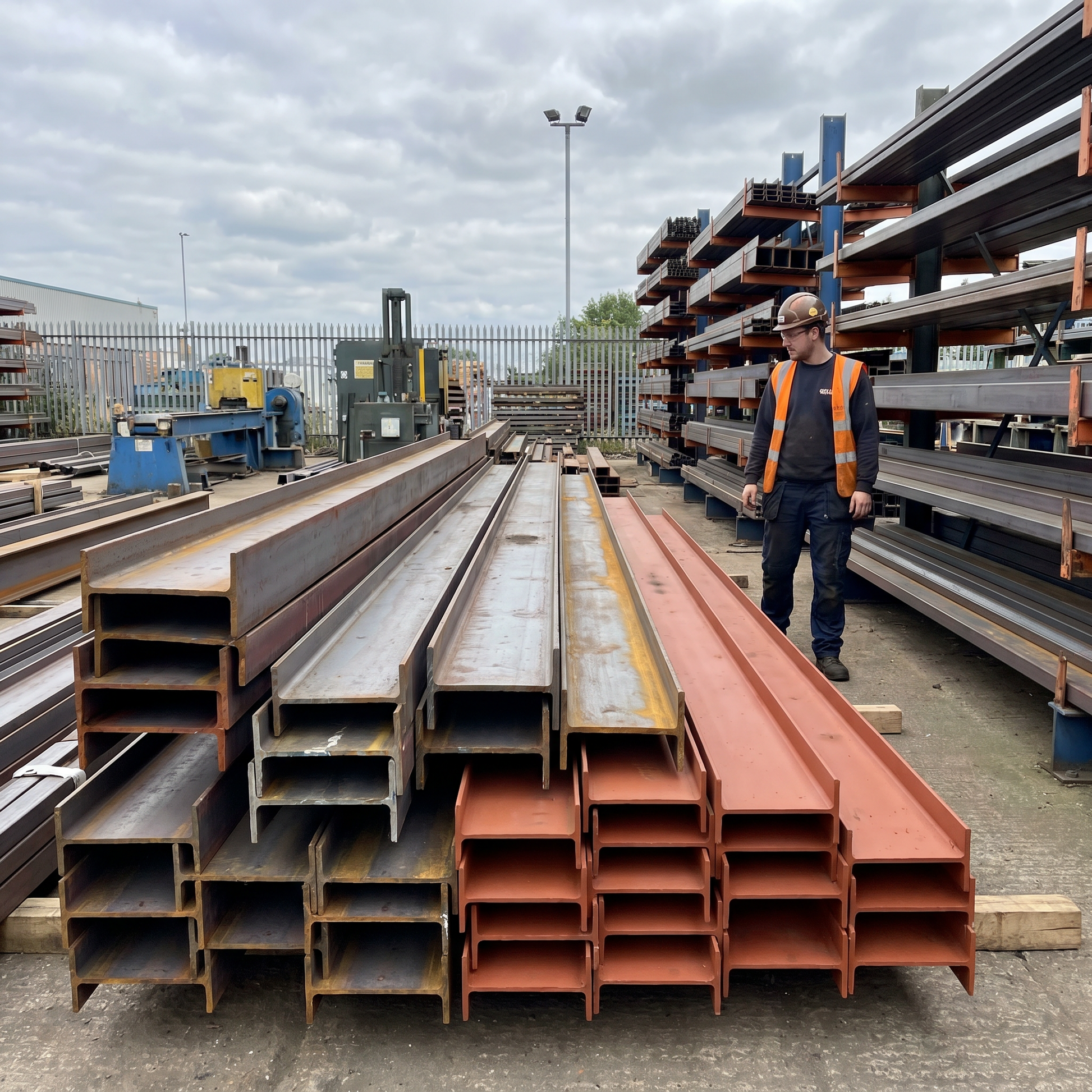

Available finishes

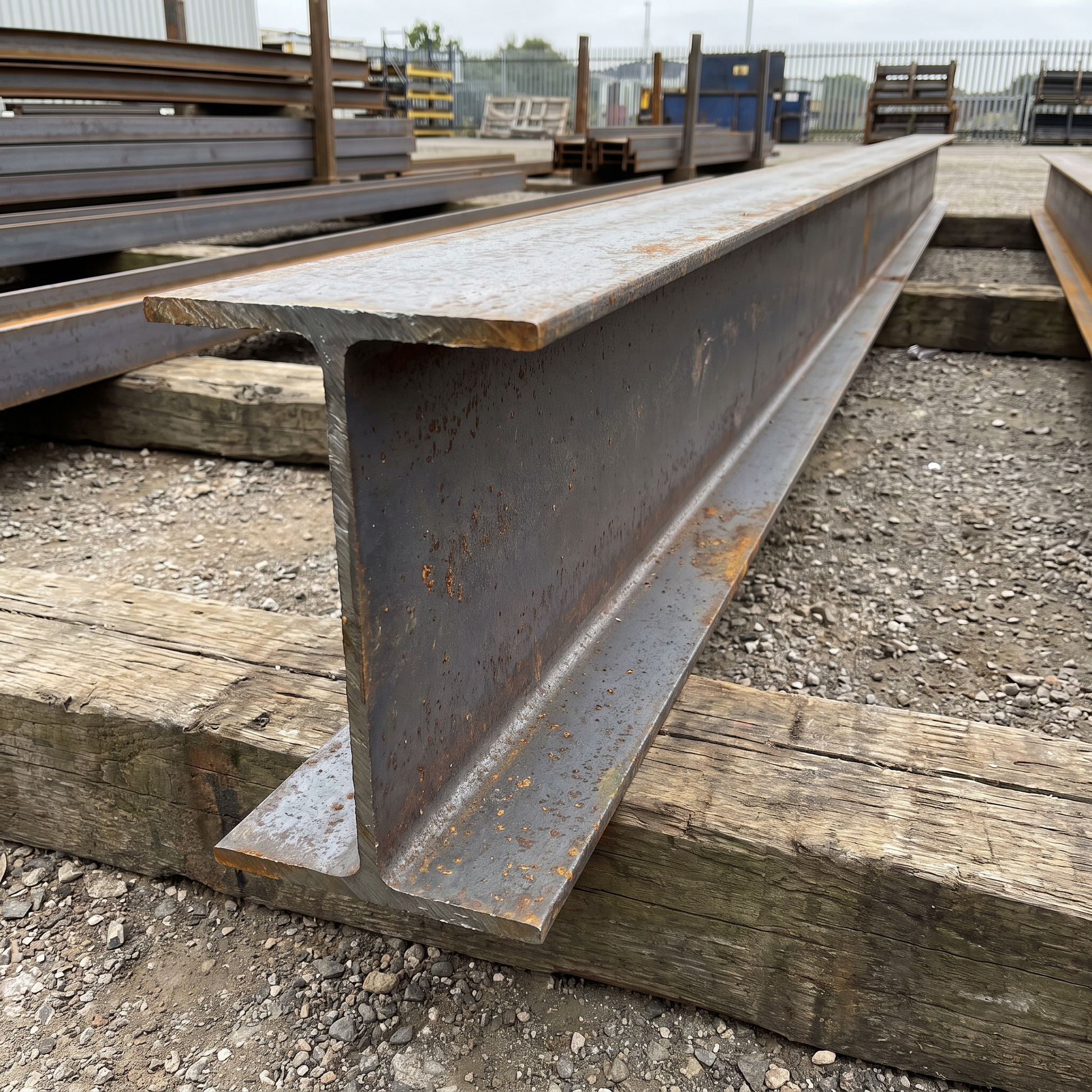

Mill finish is the column exactly as it leaves the rolling mill: bare structural steel carrying the usual blue-grey mill scale. It suits any job where the column will be encased, boxed in, fire-protected or painted on site — see our guide to boxing in steelwork, or whether structural steel needs painting at all.

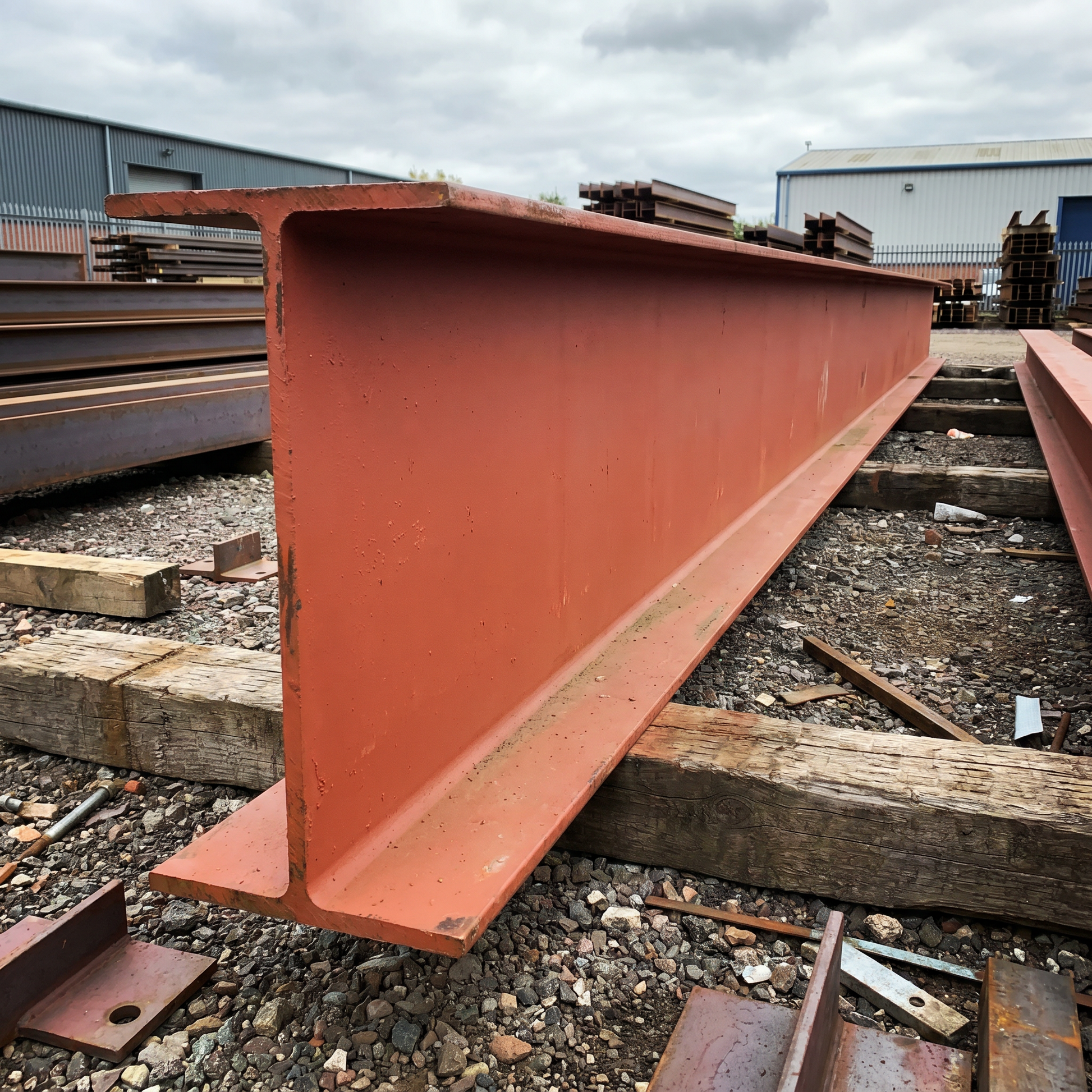

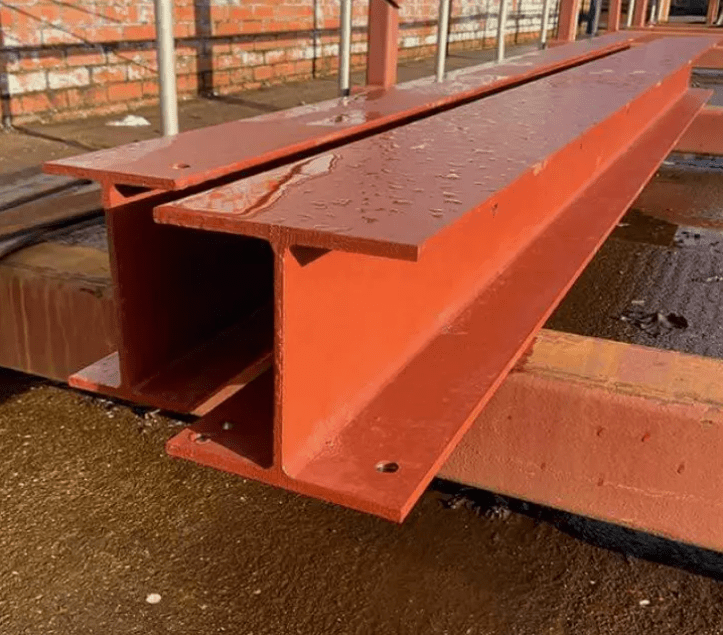

Red oxide primer is a factory-applied anti-corrosive coating, shot blasted and painted, that protects the steel while it stands on site before the building is closed in. At this size the column is usually erected as part of a frame and left exposed for weeks, so primer is worth taking — and on this section it costs very little more. It is a primer rather than a topcoat, designed to be overpainted, and not a substitute for intumescent fire protection or galvanising outdoors. More in what red oxide primer actually means.
Cut to size — free, to the millimetre
Tell us the length you need and we cut it. There is no charge for cutting and no minimum order beyond a single metre. Enter your dimensions in the calculator above — you can specify several cut lengths on one order and the tool works out what you need. Steel is supplied and billed in whole metres, so a 2.7m requirement is charged as 3m; where you order more than one cut in the same finish, the total is rounded once rather than cut by cut, which matters when a frame needs four or six posts.
Cut tolerance is ±3mm on length. Tell us if your head detail is critical, and confirm the base plate, padstone and holding-down bolt arrangement with your engineer before ordering. More on what lengths structural steel comes in.

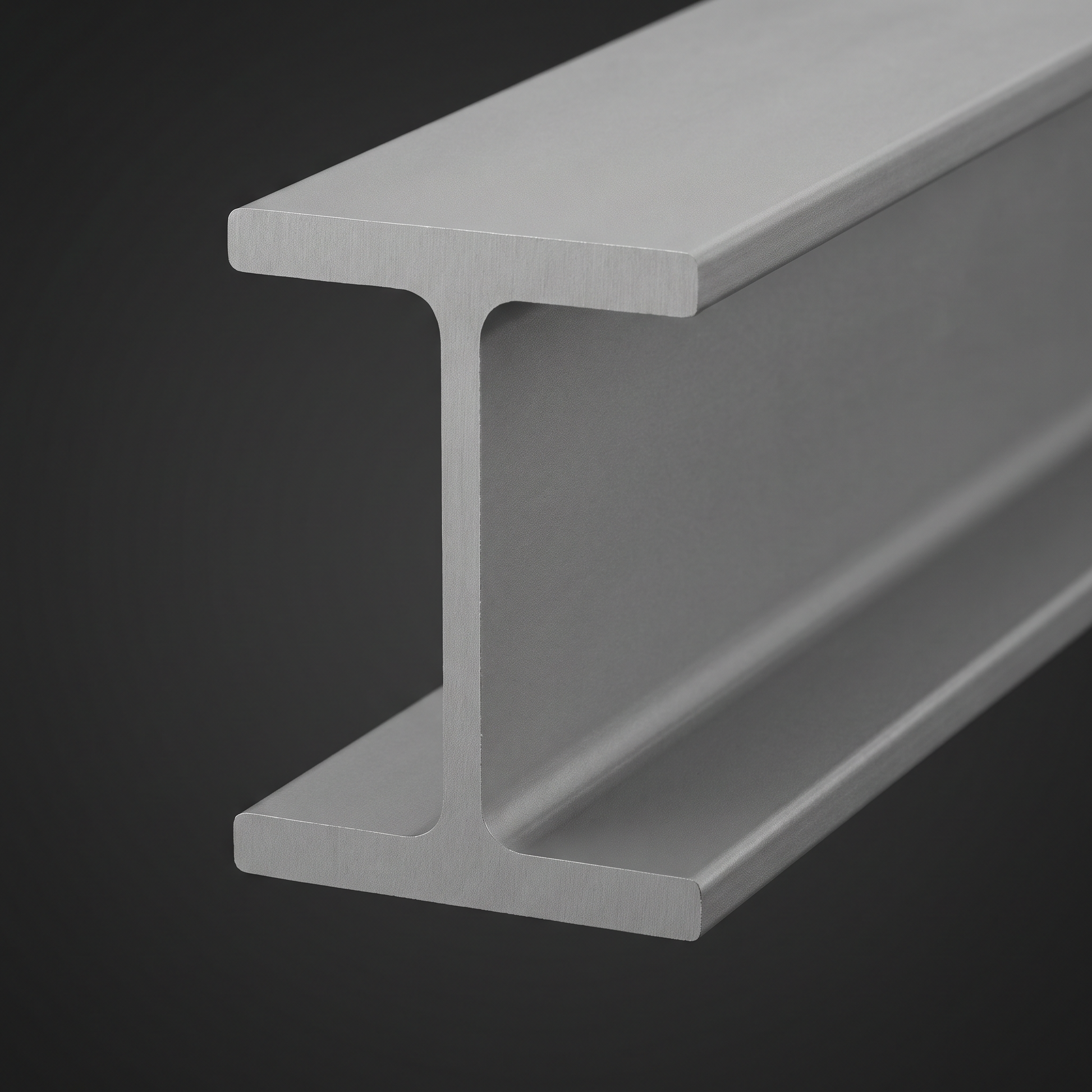

Section dimensions
| Depth of section (h) | 206.2 mm |
| Width of section (b) | 204.3 mm |
| Web thickness (s) | 7.9 mm |
| Flange thickness (t) | 12.5 mm |
| Root radius (r) | 10.0 mm |
| Depth between fillets (d) | 161.2 mm |
| Mass per metre | 52.0 kg/m |
| Cross-sectional area | 66.3 cm² |
| Surface area per metre | 1.197 m²/m |
Section properties
| Second moment of area, y-y (Iy) | 5,256 cm⁴ |
| Second moment of area, z-z (Iz) | 1,777 cm⁴ |
| Elastic modulus, y-y (Wel,y) | 509.8 cm³ |
| Elastic modulus, z-z (Wel,z) | 174.0 cm³ |
| Plastic modulus, y-y (Wpl,y) | 567.0 cm³ |
| Plastic modulus, z-z (Wpl,z) | 264.2 cm³ |
| Radius of gyration, y-y (iy) | 8.9 cm |
| Radius of gyration, z-z (iz) | 5.1 cm |
Nominal dimensions and properties to BS EN 10365. Figures are published for reference only.
Structural engineer notice
Column sizing cannot be taken from a table. Capacity depends on the axial load, the effective length between restraints, the end fixity, any bending applied at the connections, and the base and head details — all of which must be calculated by a qualified structural engineer, and in most cases will form part of your building control submission. Base plates, padstones and holding-down bolts are part of that design. We supply steel to the specification you give us; we do not provide structural design.
Delivery — plan the lift
Cut-to-size steel is dispatched on a 5–10 working day lead time, with free delivery to UK mainland addresses included in the price — no carriage is added at checkout.
At 52kg per metre a 3m post is 156kg and a 5m post is 260kg. Deliveries are kerbside and offloading assistance is required — our vehicles do not carry lifting equipment. At this size a telehandler, forklift or crane is strongly recommended. See how structural steel is delivered, or our delivery & lead times page. Ordering a full frame? Trade discounts are available.
