Interlocking garage floor tiles — 12mm heavy-duty PVC
Turn cold, stained concrete into a clean, drive-on floor in an afternoon. Each garage floor tile slots together like a jigsaw — no adhesive, no underlay — and is ready to park and work on straight away. Choose black or grey in a coin-stud or checker-plate finish for garages, workshops, home gyms and showrooms.
Where they're used
One tough tile for every space that takes a beating — swipe through where it's used.
How many tiles do you need?
Pick your colour, pattern and floor area — we'll work out the exact number of tiles and the price.

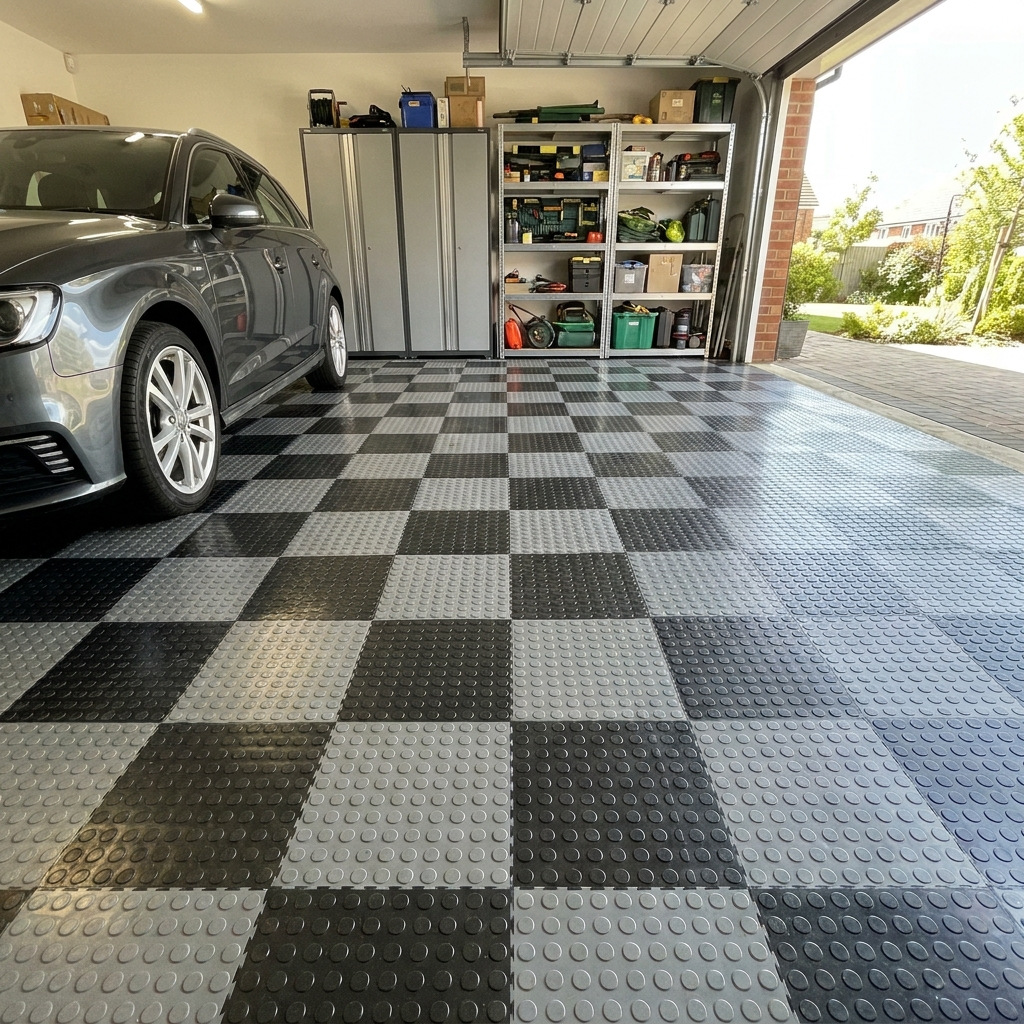

Choose Mix for the popular black & grey checkerboard — you'll get half black, half grey tiles.
Tip: measure width × depth in metres. A single garage is roughly 3m × 5m = 15m².
✓ Free UK delivery on all orders
- 1 ramp fits 1 tile side. Each strip is 470mm — the length of one tile edge — so count the exposed tile edges to get how many ramps you need.
- Only open edges need them. Ramp the sides facing a doorway, walkway or open floor; edges tight against a wall are left as they are.
- Male or female? Every tile has male teeth (pegs) on two sides and female sockets on the other two. A ramp fits the opposite type — a tile edge showing pegs takes a female ramp, one showing sockets takes a male ramp — so most floors use a mix of both.
- Corners: cut one male and one female ramp in half at 45° and butt them together for a neat mitre.
- Colour: black or grey to blend in, or hi-vis yellow for a clear safety edge. Grab 1–2 spares for cuts.
Interlocking tiles vs epoxy paint vs bare concrete
For a fast, clean, removable garage floor, interlocking tiles win on every practical measure.
| Interlocking tiles | Epoxy / floor paint | Bare concrete | |
|---|---|---|---|
| Fitting time | An afternoon — walk on it straight away | Days incl. prep & curing | — |
| Mess & downtime | None — no grinding or fumes | Grinding, fumes, 24–72h cure | Dusty, cold |
| Removable / re-usable | Yes — lift, re-lay, take with you | No — permanent | — |
| Hides cracks & stains | Yes — instantly | No — shows every flaw | No |
| Non-slip when wet | Yes — textured surface | Can be slippery | No |
| Best for | Garages, gyms, workshops, showrooms | Permanent pro finish | — |
Coin or checker plate?
Both come in black and grey — mix them for a checkerboard or a bordered car bay. See the whole range in our garage flooring collection.
Specification
- Type: Interlocking PVC garage floor tile
- Thickness: 12mm heavy-duty
- Tile size: 50 × 50cm nominal — covers an effective 47 × 47cm (≈0.22m²) once interlocked
- Coverage: ≈4.5 tiles per m²
- Material: Recycled PVC
- Surface: Coin-stud or checker-plate — textured, non-slip
- Colour: Black or Grey (or mix for a checkerboard)
- Approx weight: ~1.7 kg per tile
- Fitting: Interlocking loose-lay, no adhesive; cuts with a jigsaw, saw or sharp knife
- Suitable for: Garage, workshop, home gym, showroom, shed, utility room
- Warranty: 1 year
Good to know
Our interlocking garage floor tiles transform cold, stained concrete into a clean, hard-wearing floor in an afternoon — no glue, no specialist tools. Each 12mm PVC garage floor tile simply slots together like a jigsaw and is ready to drive, park and work on straight away. Choose black or grey in a coin-stud or checker-plate finish for garages, workshops, home gyms and showrooms, with fast, free UK delivery.
Heavy-duty garage floor tiles that fit in an afternoon

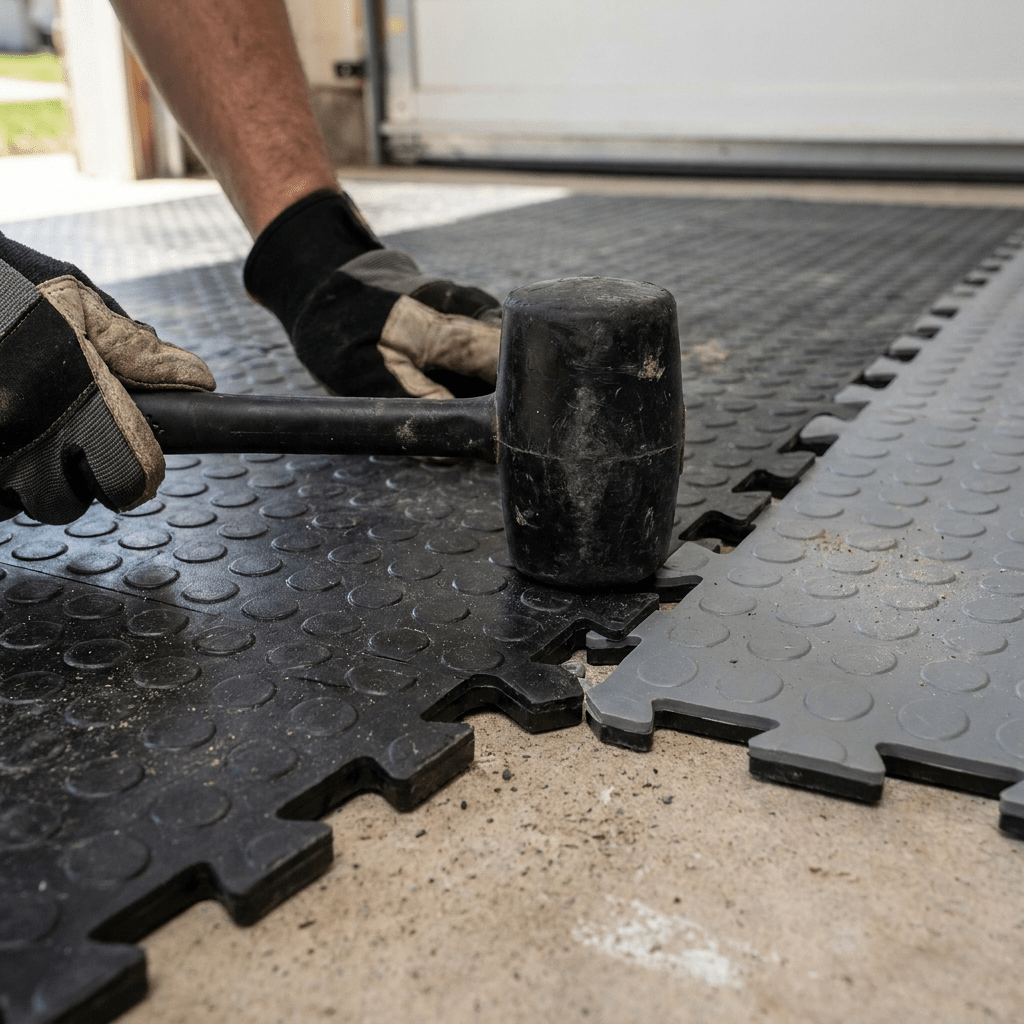

These are proper heavy-duty garage floor tiles — 12mm thick recycled PVC that shrugs off tyres, trolley jacks, dropped tools, oil and water. There is no adhesive and no underlay: the interlocking teeth click together with a few taps of a rubber mallet, so a single garage can be covered in well under an hour. Because they're loose-laid, they protect the concrete beneath and can be lifted, re-laid or taken with you if you move.
Coin or checker plate, black or grey

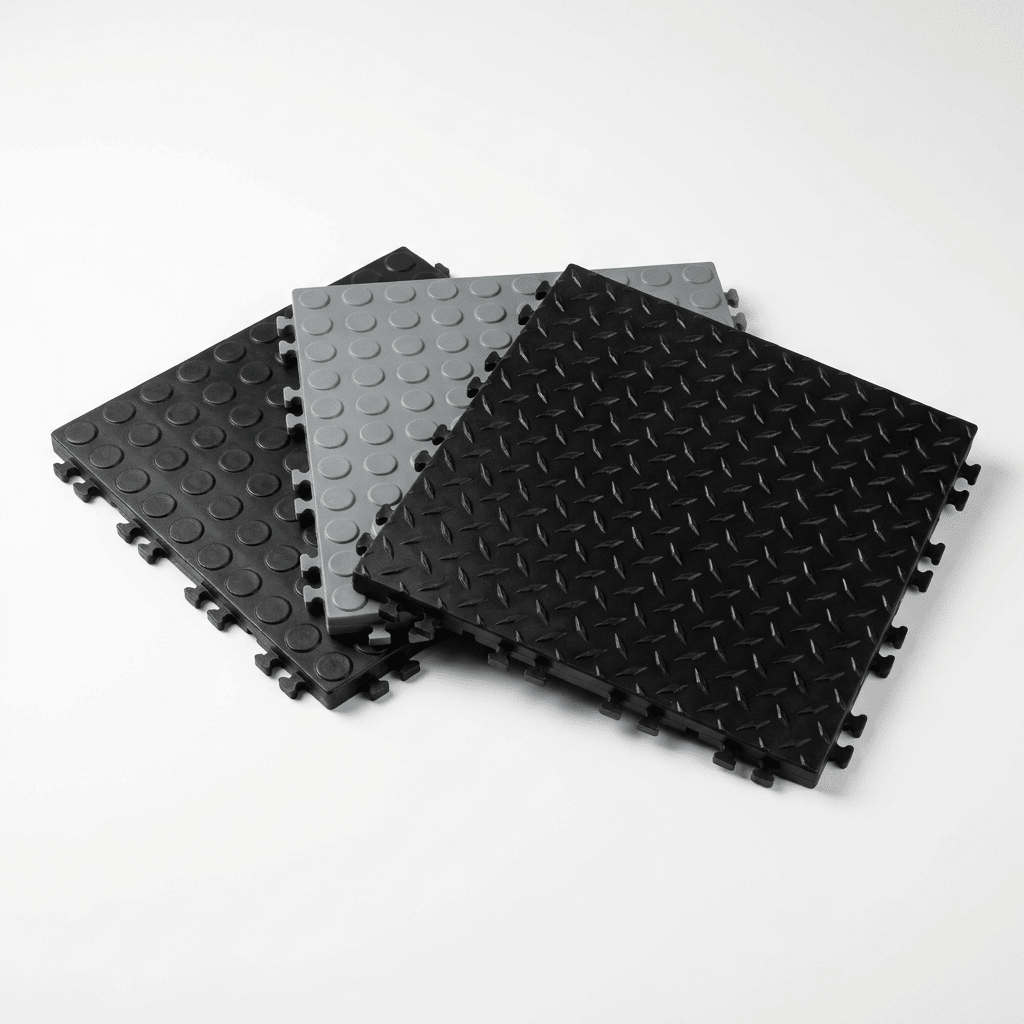

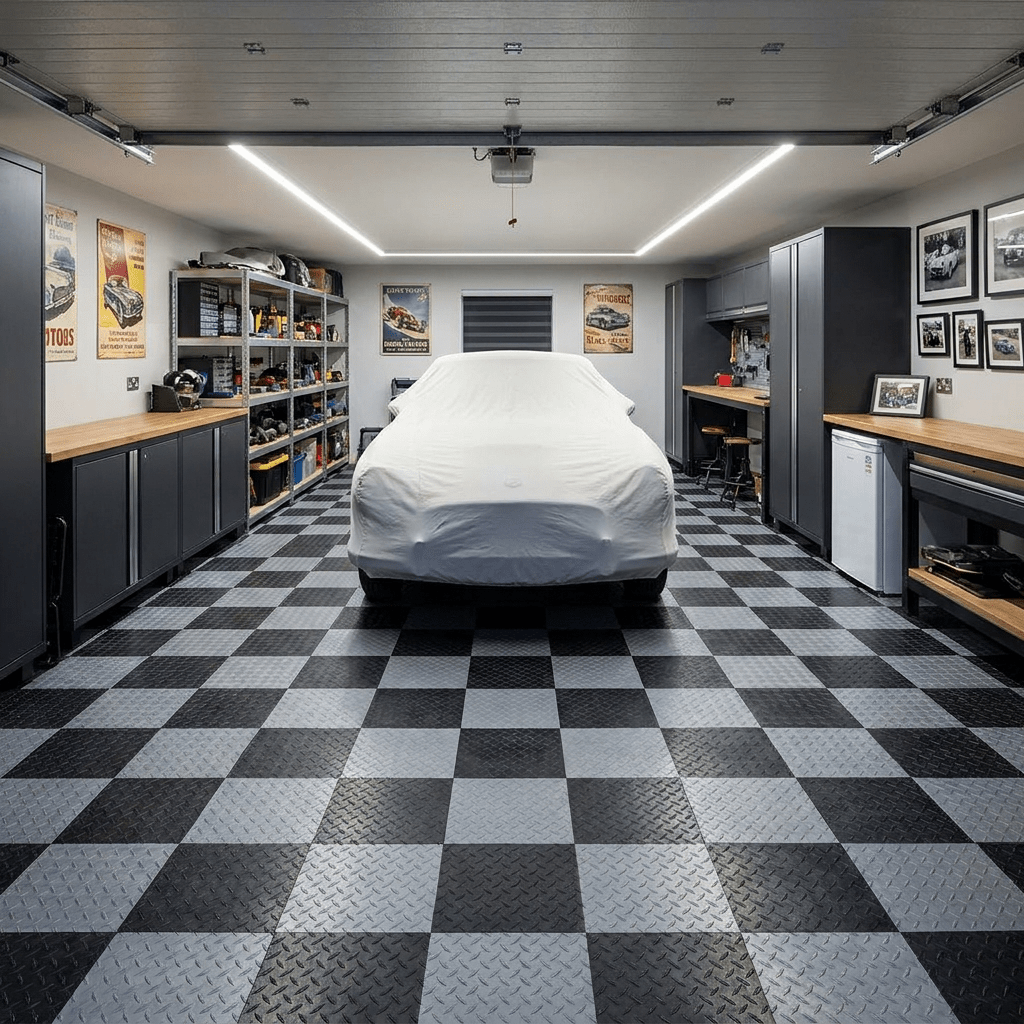

Pick the look that suits the space. The coin-stud finish gives an all-over grippy, classic garage-showroom look that hides dust and tyre marks; the checker-plate finish gives a raised industrial workshop tread. Both come in black and grey, and because they're modular you can mix the two into a checkerboard or a bordered "island" for a car bay.
Built for garages, workshops, gyms and showrooms

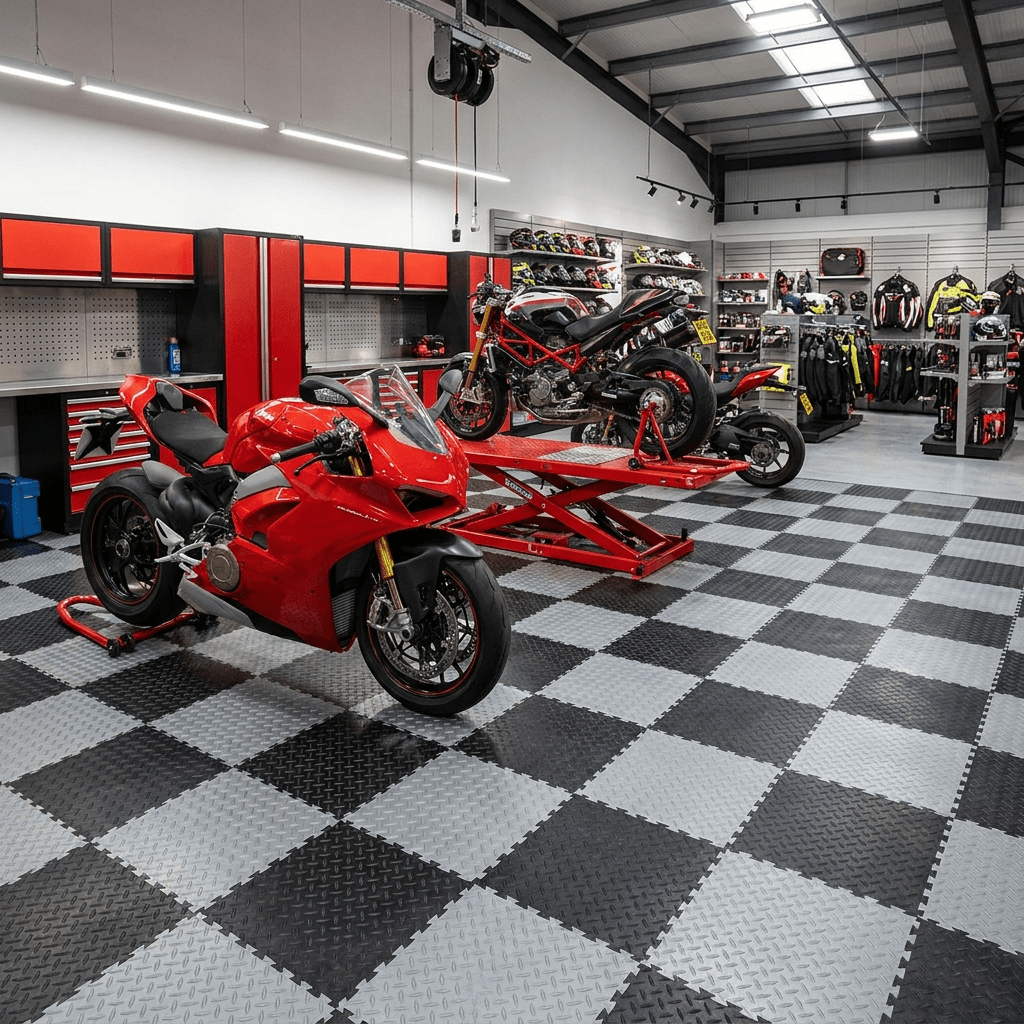

As interlocking floor tiles for garages they're a favourite for home garages and man caves, but the same tile works hard as workshop floor tiles, home-gym flooring, valeting bays, retail and motorcycle showroom floors, sheds and utility rooms. The textured surface is non-slip even when wet, and the PVC is chemical, stain and moisture resistant — so spills wipe up and the floor stays looking sharp.
Tile size & coverage
Each tile has a nominal size of 50 × 50cm, but because the interlocking teeth overlap when the tiles are joined, each laid tile covers an effective 47 × 47cm — about 0.22m². In practice that's roughly 4.5 tiles per square metre. Not sure how many you need? Use the coverage calculator on this page — enter your floor area and it works out the exact number of tiles (and the price) for you, already allowing for the overlap.
Finish the edges neatly
Where the floor meets an open doorway or sits as an island in the middle of a space, our matching ramp edges give a tidy, trip-free bevelled edge. They're sold separately and add a neat, professional finish to any exposed edge.
Delivery & guarantee
All tiles are brand new and dispatched quickly from the UK, with free UK delivery on all orders (typically 3–5 working days). Every tile is backed by a manufacturer's warranty. Buy a couple of spares — they store flat and are handy for future repairs.
