6063 Aluminium Box & Rectangle Section – Aluminium Square Tube, 5m Lengths & Cut to Size, Architectural Box Section for Frames & Fabrication
6063 Aluminium Box & Rectangle Section – Aluminium Square Tube, 5m Lengths & Cut to Size, Architectural Box Section for Frames & Fabrication
Couldn't load pickup availability

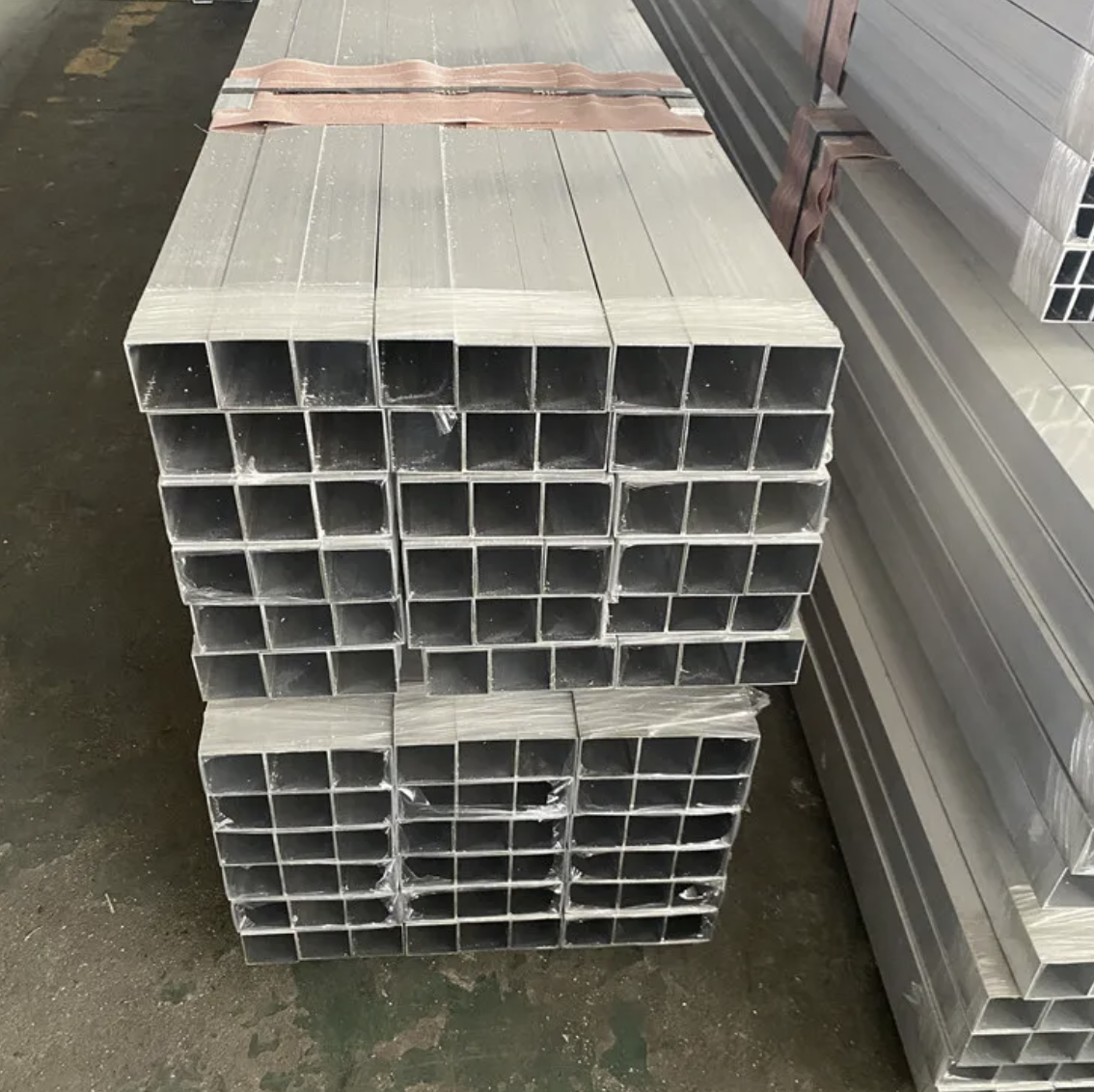

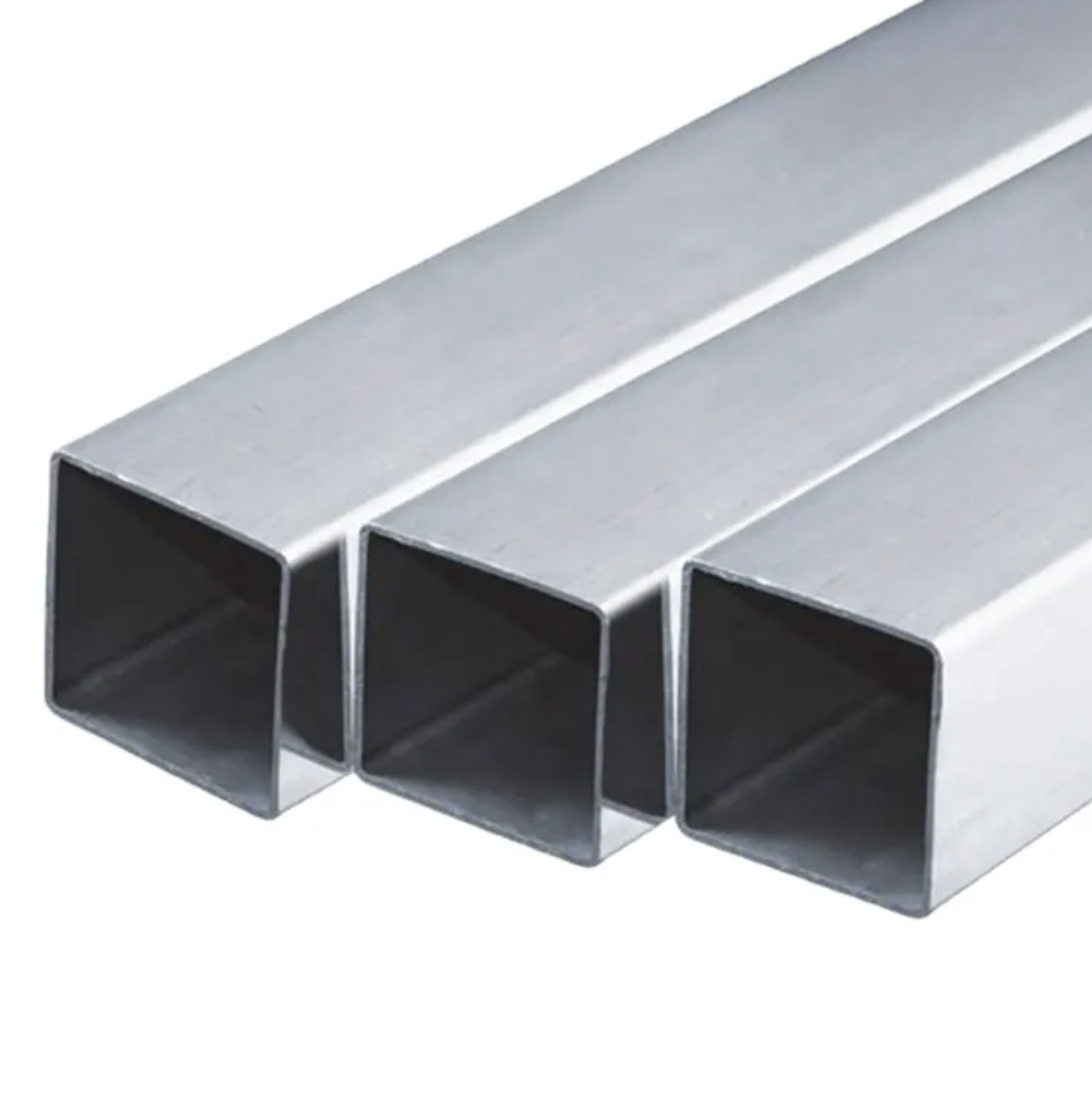

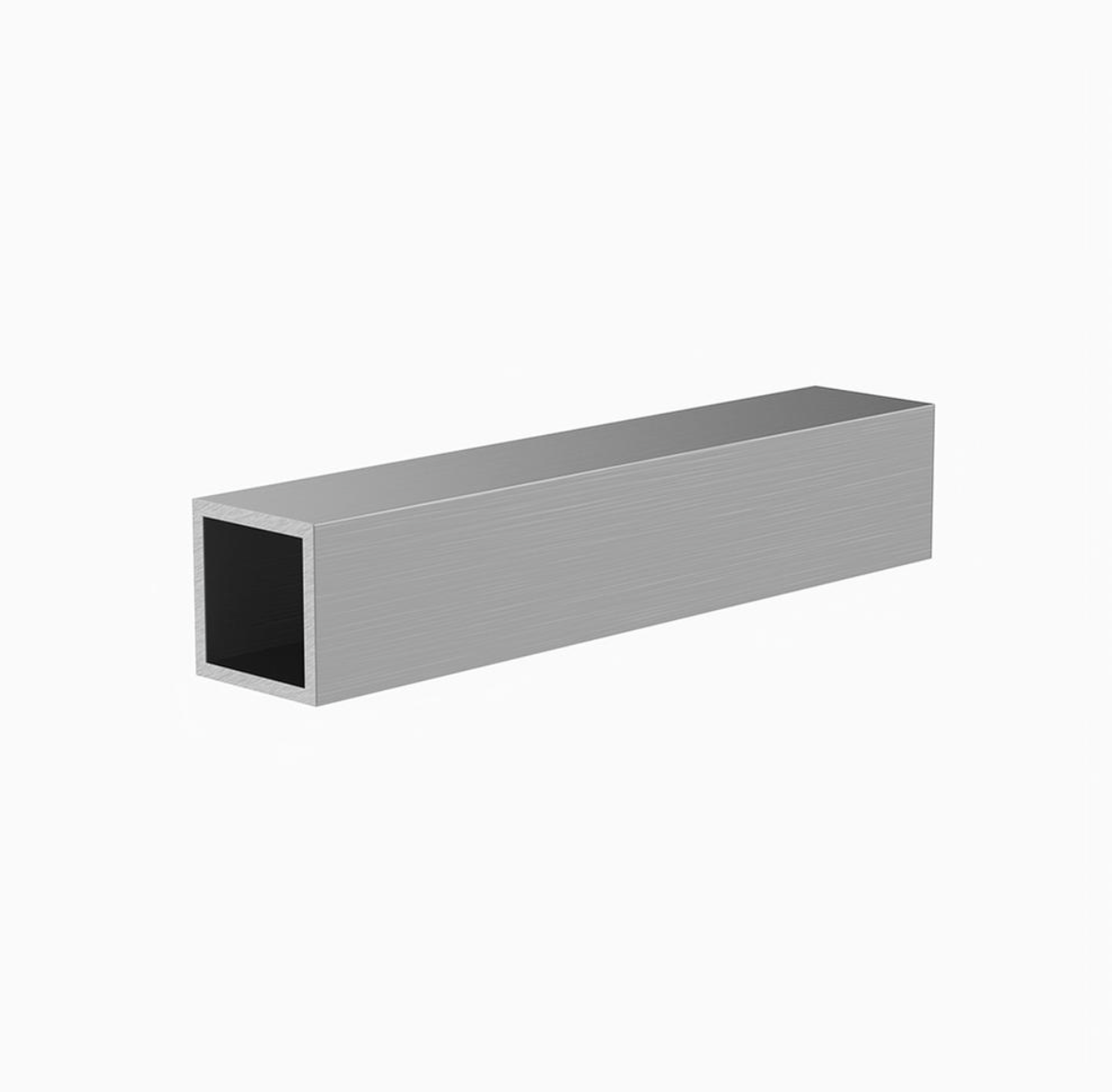

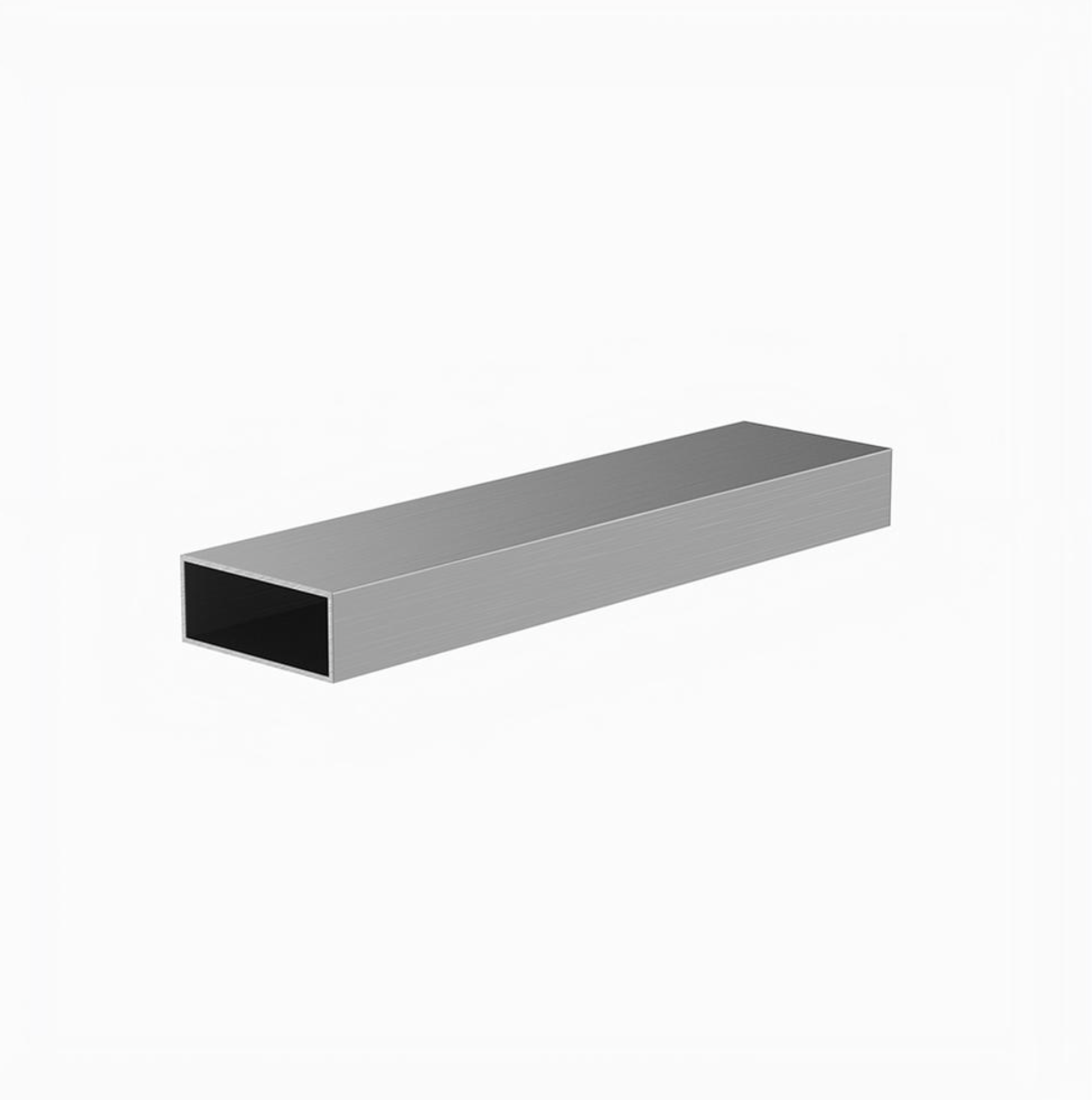

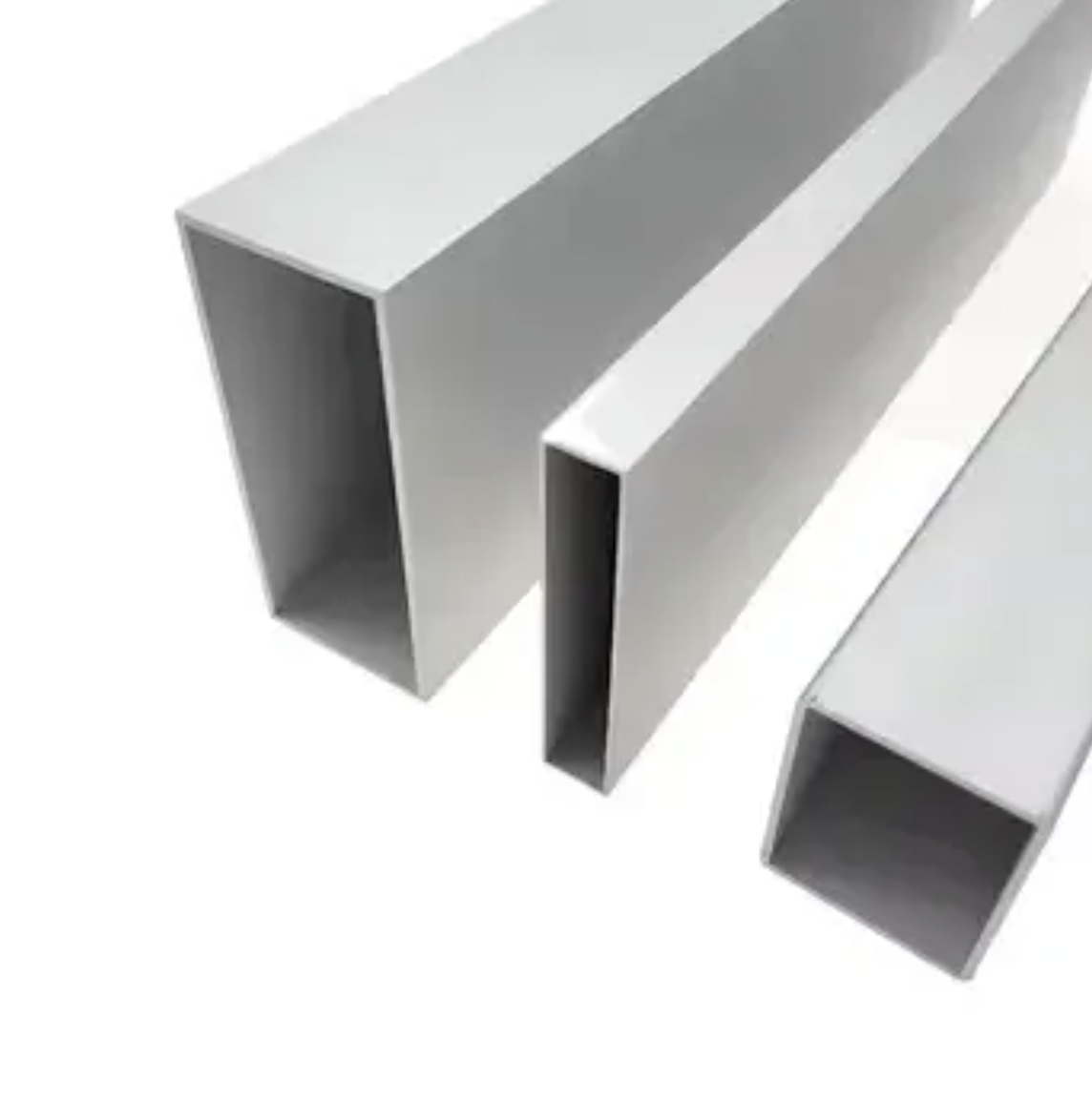

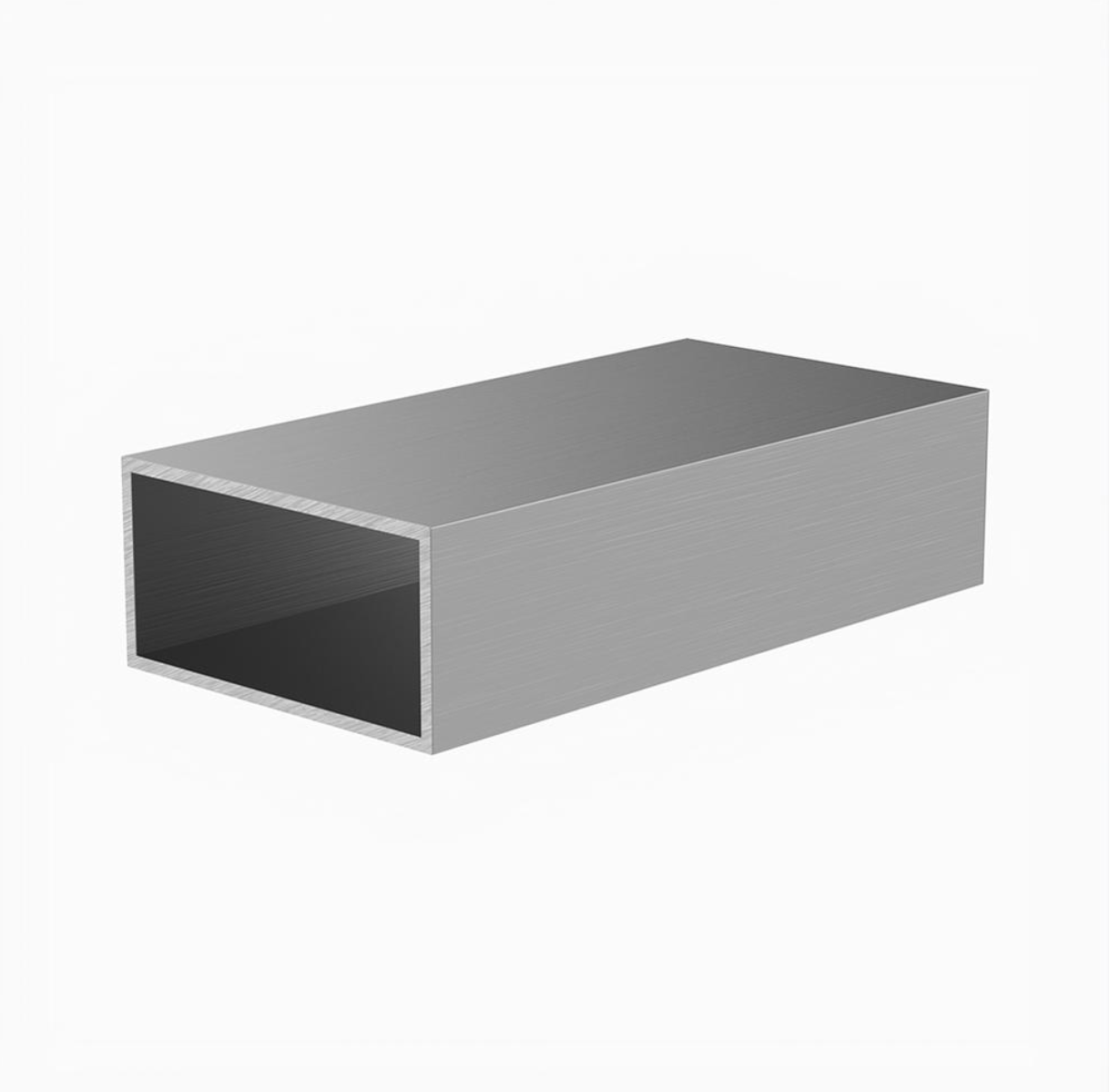

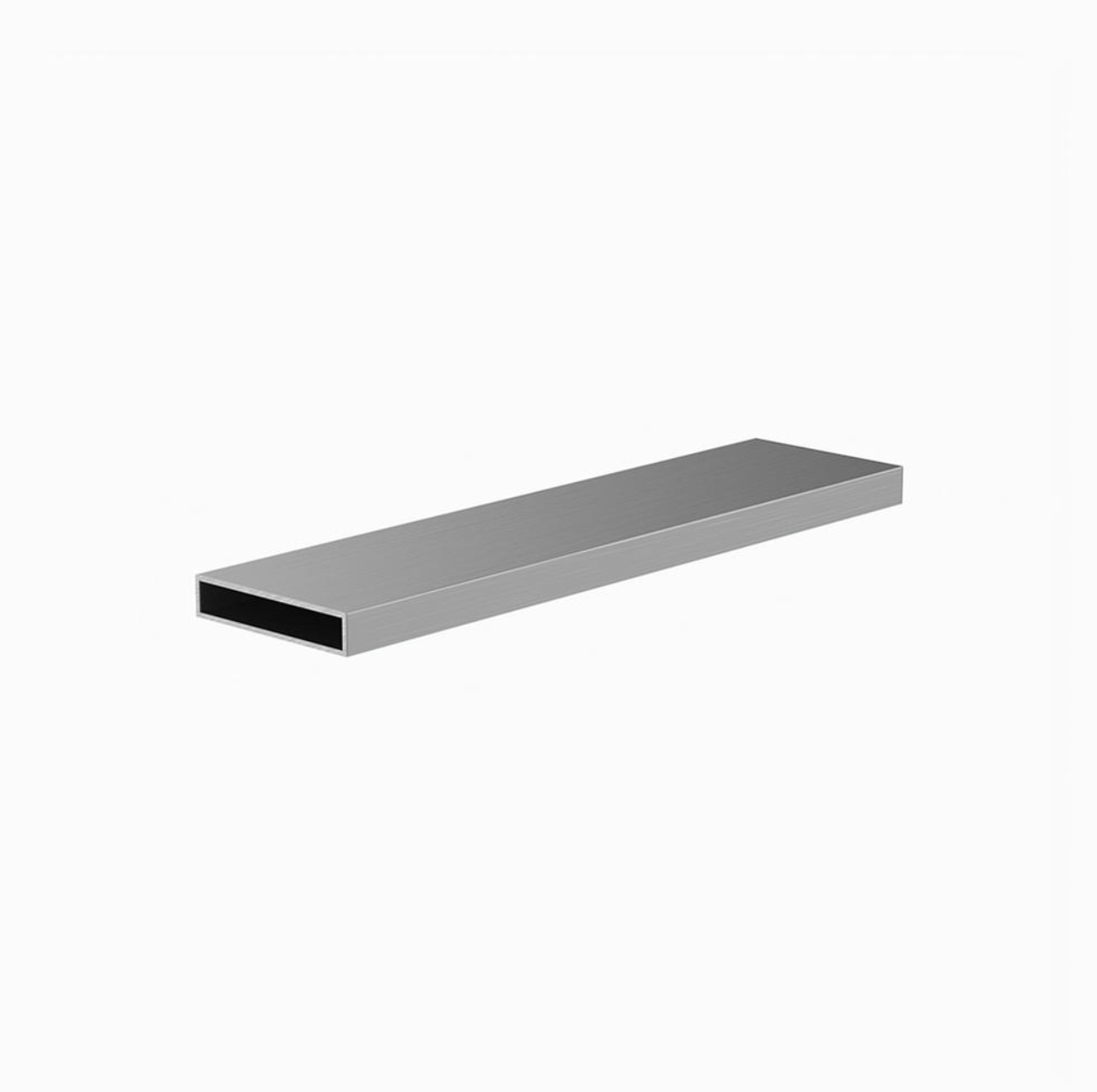

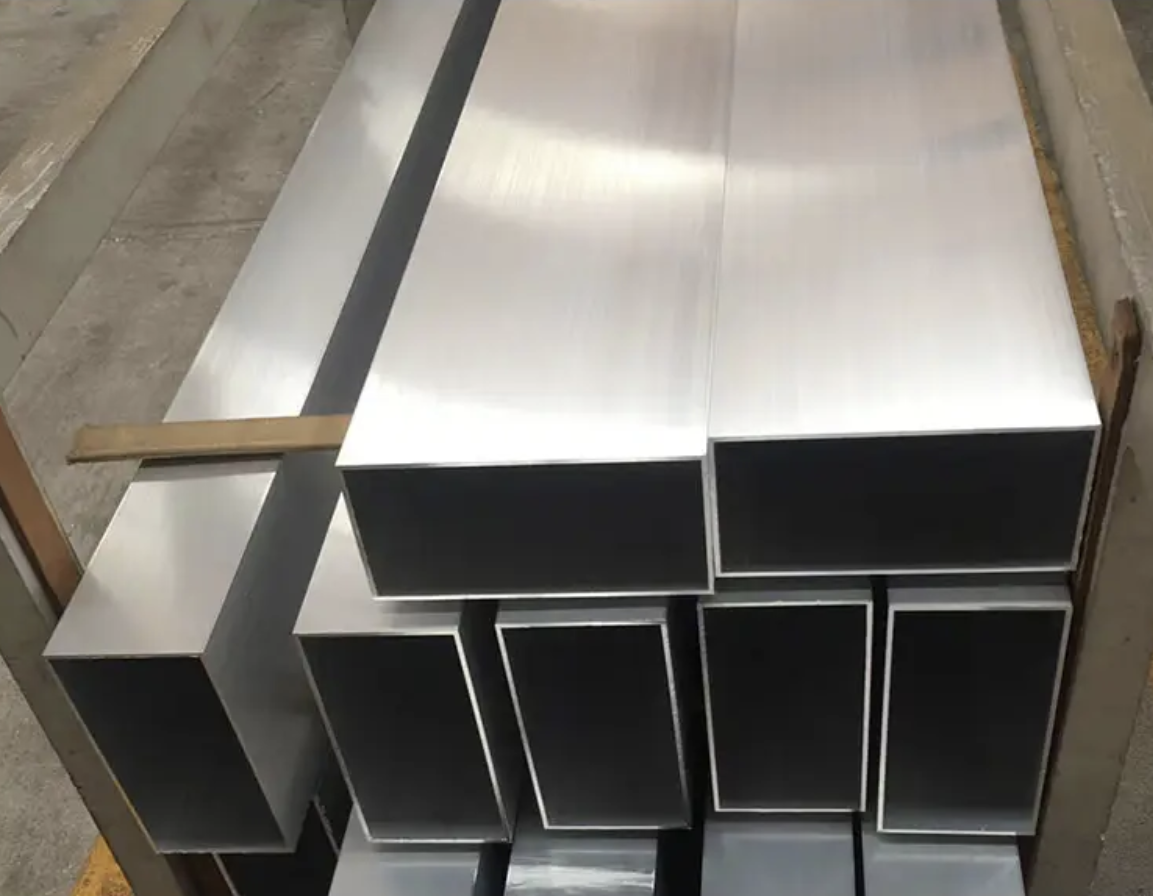

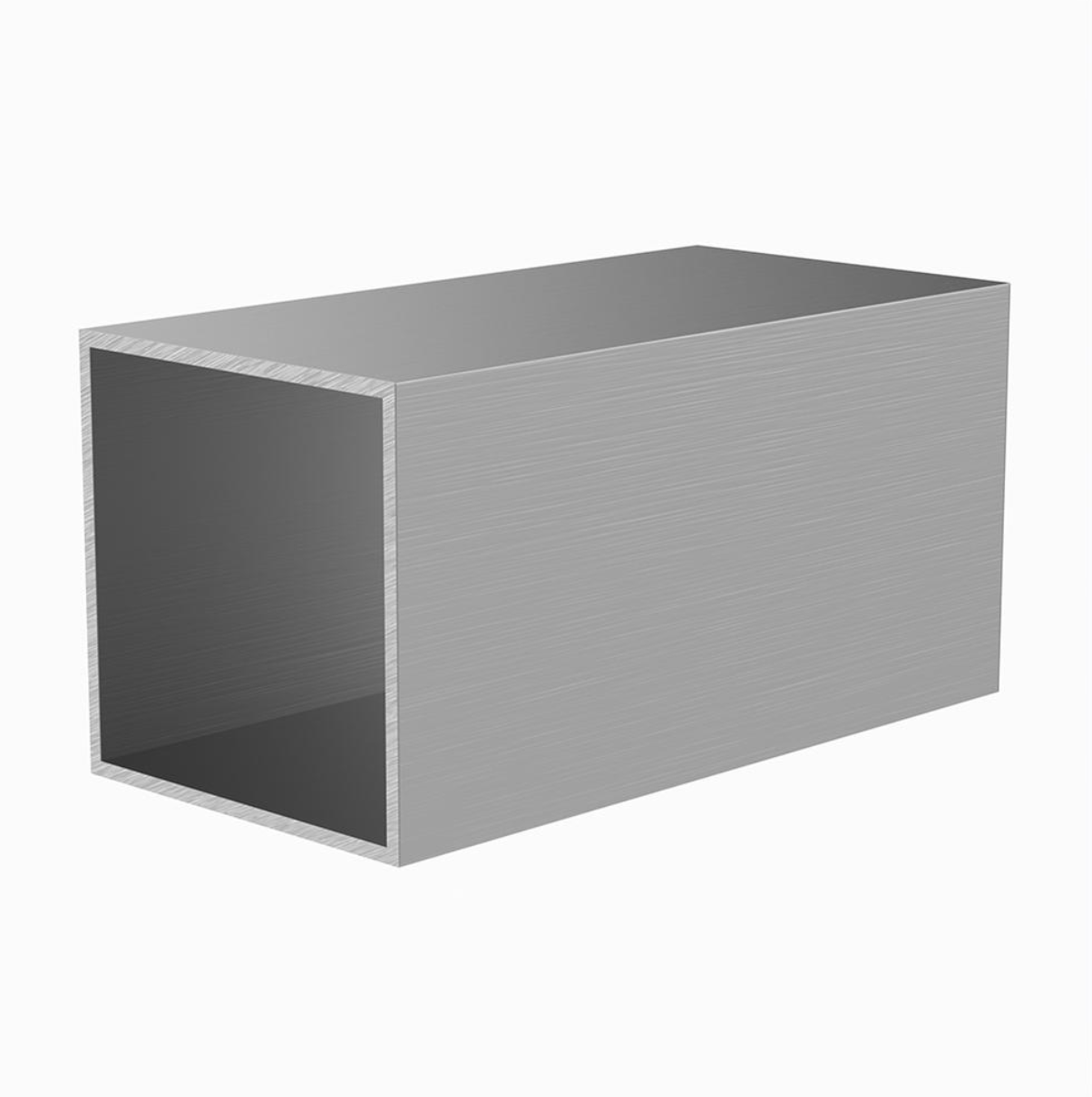

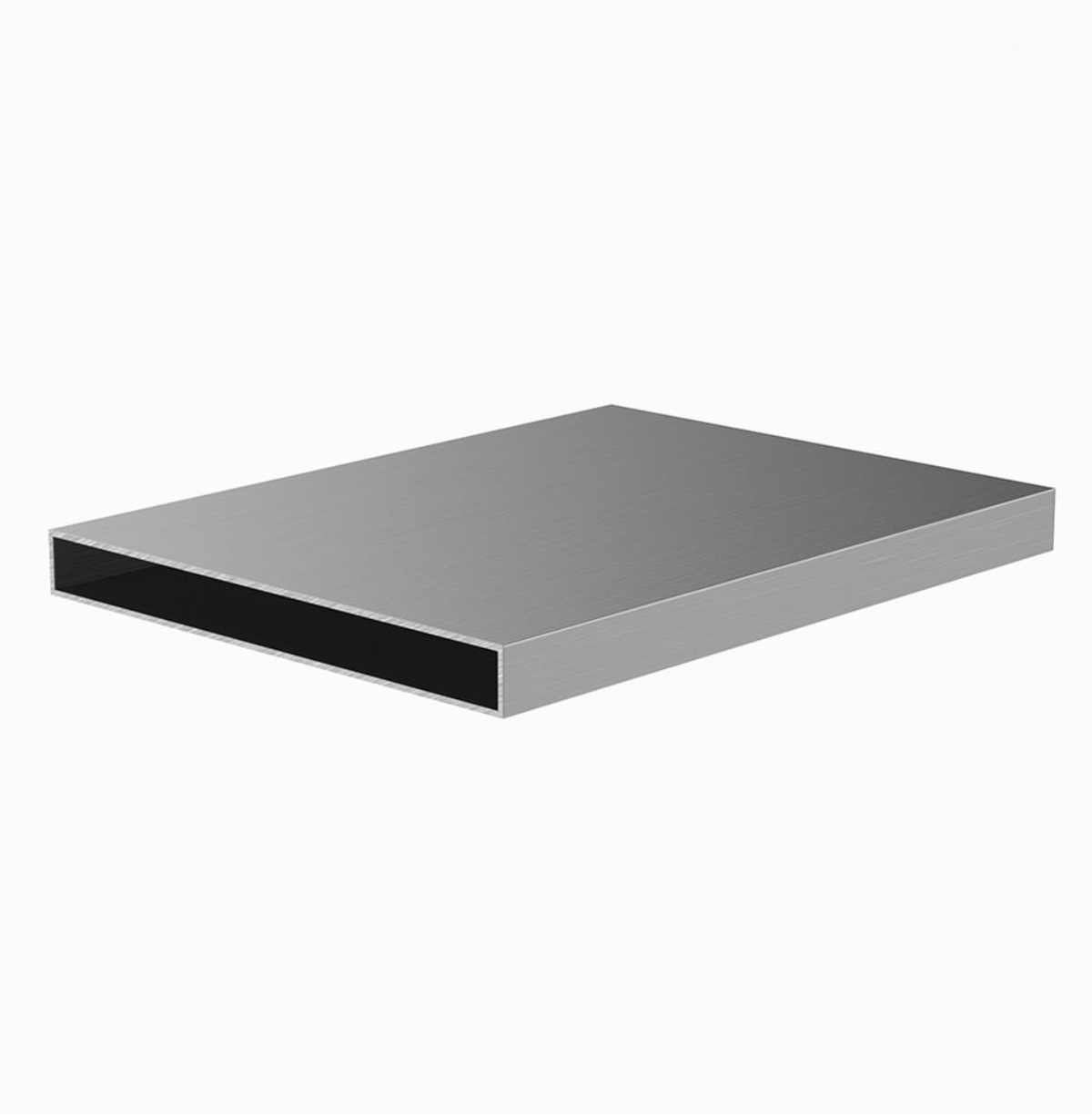

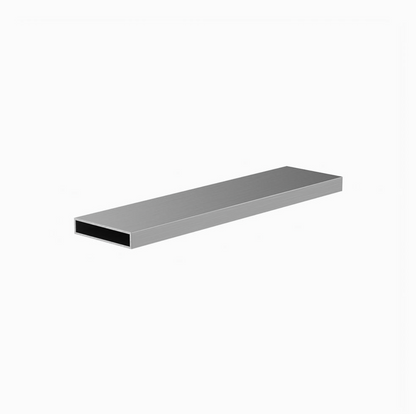

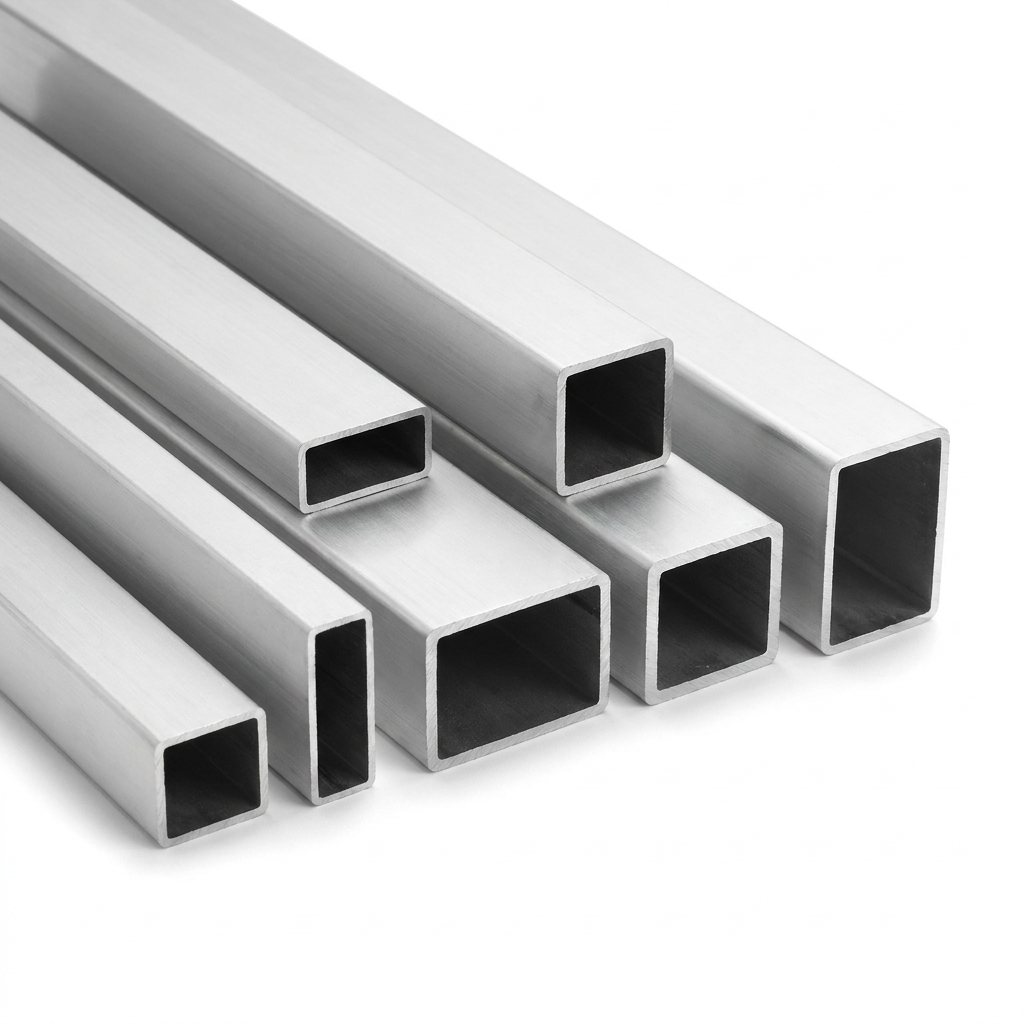

6063 T6 aluminium box section and rectangular section — also called aluminium square tube or aluminium hollow section — in 5m lengths or cut to size on request, covering square (SHS) and rectangular (RHS) profiles. Lightweight, corrosion-resistant and easy to machine, with a clean mill finish suited to architectural and fabrication work.
Used for lightweight frames, shopfitting, display structures, greenhouse frames, curtain walling, signage, furniture, marine fabrication, vehicle bodywork and any application where weight and corrosion resistance matter more than maximum strength.
Material and Grade
6063 is an architectural aluminium alloy with excellent corrosion resistance and a smooth extruded finish. T6 temper means it has been solution heat-treated and artificially aged for the highest strength in the alloy. The natural mill finish can be left as-is, anodised or powder coated.
Aluminium Box Section Sizes & Weight Chart
6063 T6 aluminium box and rectangular section size chart with approximate weight per metre. All sizes in 5m lengths or cut to size.
| Size | Profile | Approx. weight (kg/m) |
|---|---|---|
| 25 x 25 x 1.6mm | Square (SHS) | 0.40 |
| 25 x 25 x 3.25mm | Square (SHS) | 0.76 |
| 40 x 40 x 1.5mm | Square (SHS) | 0.62 |
| 40 x 40 x 2mm | Square (SHS) | 0.82 |
| 50 x 50 x 3.25mm | Square (SHS) | 1.64 |
| 75 x 75 x 2mm | Square (SHS) | 1.58 |
| 75 x 75 x 3.25mm | Square (SHS) | 2.52 |
| 100 x 100 x 3.5mm | Square (SHS) | 3.65 |
| 38 x 16 x 1.2mm | Rectangular (RHS) | 0.33 |
| 38 x 25 x 3.25mm | Rectangular (RHS) | 0.99 |
| 50 x 10 x 1.2mm | Rectangular (RHS) | 0.37 |
| 50 x 21 x 1.2mm | Rectangular (RHS) | 0.44 |
| 50 x 25 x 3.25mm | Rectangular (RHS) | 1.20 |
| 50 x 38 x 3.25mm | Rectangular (RHS) | 1.43 |
| 75 x 25 x 3.25mm | Rectangular (RHS) | 1.64 |
| 75 x 38 x 3.25mm | Rectangular (RHS) | 1.87 |
| 80 x 16 x 1.2mm | Rectangular (RHS) | 0.61 |
| 100 x 21 x 1.8mm | Rectangular (RHS) | 1.14 |
| 100 x 25 x 3.25mm | Rectangular (RHS) | 2.08 |
| 100 x 50 x 3.25mm | Rectangular (RHS) | 2.52 |
| 150 x 16 x 1.4mm | Rectangular (RHS) | 1.23 |
| 150 x 20 x 1.5mm | Rectangular (RHS) | 1.35 |
Popular aluminium box section sizes include 25x25, 40x40, 50x50 and 75x75 box section up to 100x100, plus a range of rectangular aluminium box section sizes. Weights are approximate, calculated from the section dimensions at 2,700 kg/m³ — for an exact figure use our metal weight calculator.
Rackerman is a UK metal supplier: buy 6063 aluminium box section — also known as aluminium square tube, aluminium hollow section or aluminium box tube — online with fast mainland UK delivery and cut-to-size service, a convenient alternative to a local metal stockholder near you.
Weight Advantage
Aluminium weighs roughly one-third of steel for the same section dimensions. A 5m length of aluminium box section is significantly lighter than the equivalent steel, making it easier to handle, transport and install — particularly on overhead or elevated work.
Fabrication
6063 T6 cuts cleanly with a fine-tooth chop saw or mitre saw. It welds with TIG or MIG using aluminium filler rod and argon gas. It can be drilled, tapped and machined with standard tooling.
Compare Our Full Box & Rectangle Section Range
Prefer steel? Match the section to your job: S235 square box section (SHS), 3m box section, rectangular hollow section (RHS), ERW box & rectangle, galvanised box section and 304 stainless box section. Browse the full hollow section collection.
Related Guides
Read more in our guides: aluminium grades explained (1050 vs 6063 vs 6082), steel vs aluminium and the metal weight calculator.
Delivery Information
Lead times are currently 3-5 working days to mainland UK. Sections are supplied in 5m lengths, so suitable delivery access is required and offloading assistance may be needed on arrival.
Collapsible content
FREQUENTLY ASKED QUESTIONS
Q: What lengths are the aluminium box and rectangle sections available in?
A: All sections come in a standard 5-metre length. However, we offer cut-to-size services to suit your exact requirements – just let us know your desired dimensions when ordering.
Q: Can I request custom lengths for my project?
A: Yes! We’re happy to cut the aluminium to your specified size. This helps reduce waste and makes handling and installation easier for you.
Q: What alloy is used in these sections?
A: Our box and rectangle sections are made from 6063 aluminium, a versatile alloy known for its excellent corrosion resistance, smooth finish, and suitability for anodizing.
Q: What are the typical uses for 6063 aluminium box and rectangle sections?
A: These profiles are widely used in architectural framing, fabrication, supports, display structures, and more. They're ideal where appearance and resistance to the elements are important.
Q: Can I weld or machine these sections?
A: Absolutely. 6063 aluminium offers excellent weldability and machinability, making it ideal for custom fabrication and assembly.
Q: Are these sections suitable for outdoor use?
A: Yes, 6063 aluminium is highly resistant to corrosion, making it well-suited for both indoor and outdoor applications.
