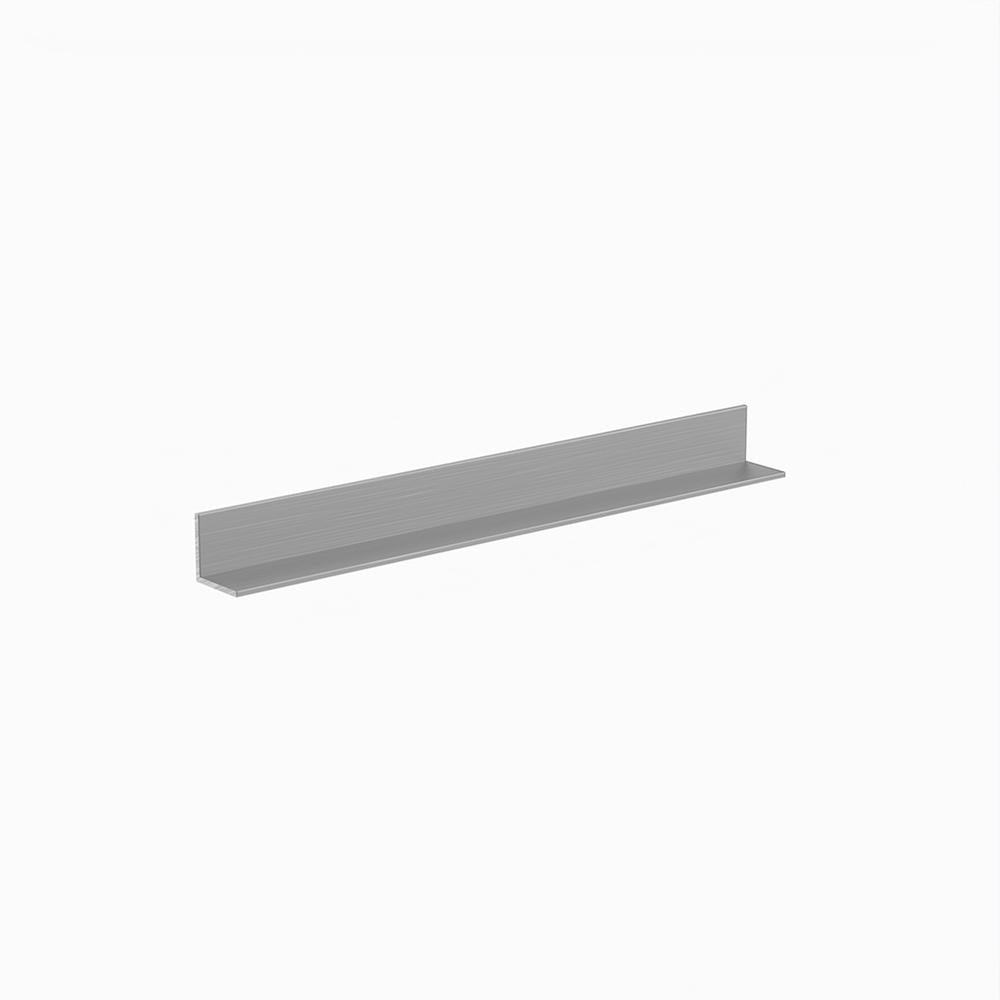

6063 Aluminium Equal Angle – T6 Architectural L Section, 5m Lengths & Cut to Size, Aluminium Angle Bar for Edging, Frames & Fabrication
6063 Aluminium Equal Angle – T6 Architectural L Section, 5m Lengths & Cut to Size, Aluminium Angle Bar for Edging, Frames & Fabrication
Couldn't load pickup availability
Buy our 6063 T6 aluminium equal angle in full 5m lengths - a strong, lightweight and highly corrosion-resistant architectural-grade section — also called aluminium angle, aluminium L angle or aluminium angle bar — ideal for fabrication, construction, framing, edging, brackets and trims. Available in a range of sizes with cut-to-size available on request and fast UK delivery.

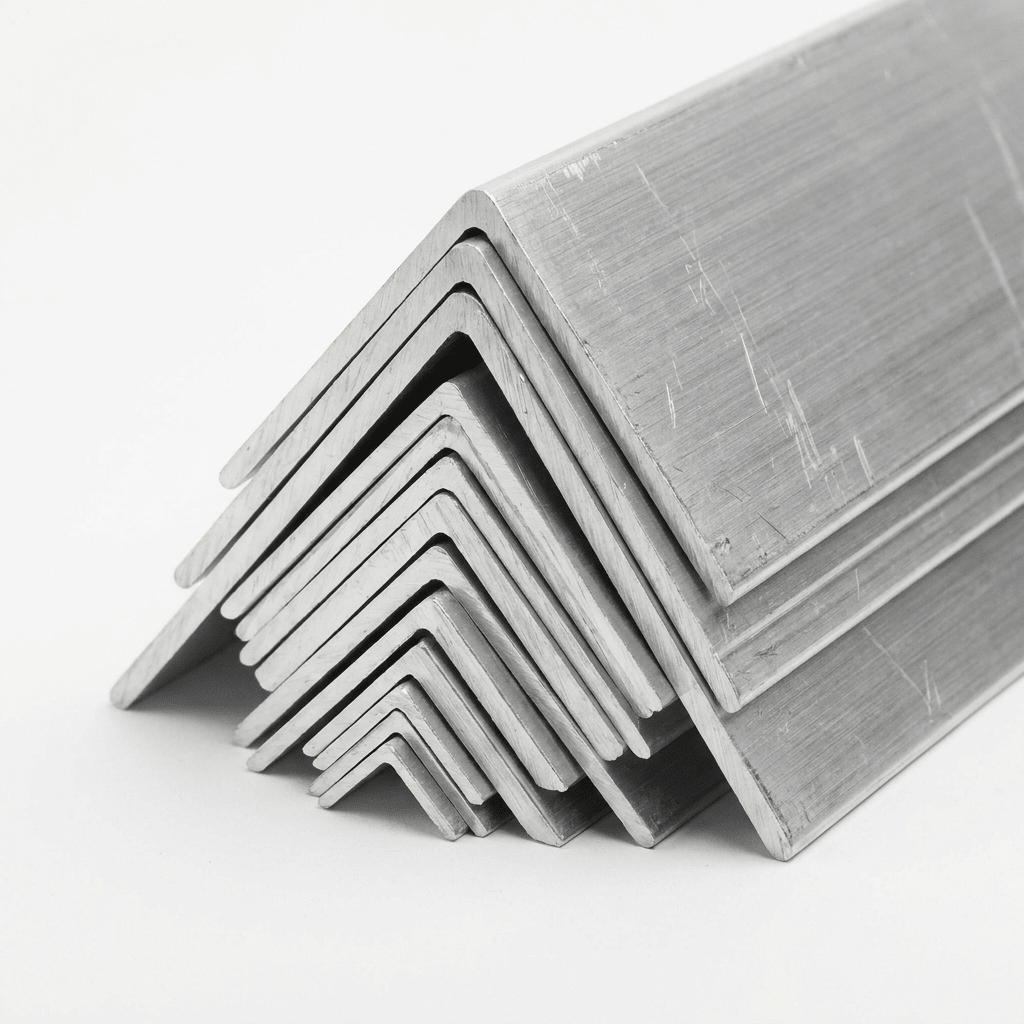

Aluminium Angle Sizes & Weight Chart
6063 T6 aluminium equal angle size chart with approximate weight per metre. All sizes in 5m lengths or cut to size.
| Size (mm) | Imperial | Approx. weight (kg/m) |
|---|---|---|
| 12 x 12 x 3mm | 1/2 x 1/2 x 1/8" | 0.17 |
| 19 x 19 x 1.6mm | 3/4 x 3/4 x 1/16" | 0.16 |
| 19 x 19 x 3mm | 3/4 x 3/4 x 1/8" | 0.28 |
| 25 x 25 x 1.6mm | 1 x 1 x 1/16" | 0.21 |
| 25 x 25 x 3mm | 1 x 1 x 1/8" | 0.38 |
| 25 x 25 x 6mm | 1 x 1 x 1/4" | 0.71 |
| 38 x 38 x 3mm | 1.1/2 x 1.1/2 x 1/8" | 0.59 |
| 38 x 38 x 6mm | 1.1/2 x 1.1/2 x 1/4" | 1.13 |
| 50 x 50 x 3mm | 2 x 2 x 1/8" | 0.79 |
| 50 x 50 x 6mm | 2 x 2 x 1/4" | 1.52 |
| 75 x 75 x 3mm | 3 x 3 x 1/8" | 1.19 |
| 75 x 75 x 6mm | 3 x 3 x 1/4" | 2.33 |
| 100 x 100 x 6mm | 4 x 4 x 1/4" | 3.14 |
Sizes are shown in mm with the imperial equivalent. All lengths are 5m. Popular aluminium angle sizes include 25mm, 38mm and 50mm aluminium angle up to 100x100, in both fine edging gauges and heavier structural sections. Weights are approximate, calculated at 2,700 kg/m³ — for an exact figure use our metal weight calculator. Cut to size is available on request - contact us before ordering with your required lengths.
Rackerman is a UK metal supplier: buy 6063 aluminium equal angle — also known as aluminium angle bar, aluminium L angle or aluminium angle iron — online with fast mainland UK delivery and cut-to-size service, a convenient alternative to a local metal stockholder near you.
Key Features
- Grade 6063 T6 aluminium - excellent corrosion resistance and surface finish
- Full 5m lengths - fewer joins on larger projects
- Lightweight yet strong - easy to handle, transport and install
- Ideal for welding, drilling, cutting and machining
- Suitable for indoor and outdoor use, including architectural, marine and transport applications
- Cut to size available on request
About 6063 T6 Aluminium
6063 T6 is a medium-strength architectural alloy known for its clean surface finish, high corrosion resistance and excellent workability. It is readily welded, drilled, cut and anodised, making it a popular choice for both structural and decorative fabrication.
Aluminium Angle for Trim & Edging

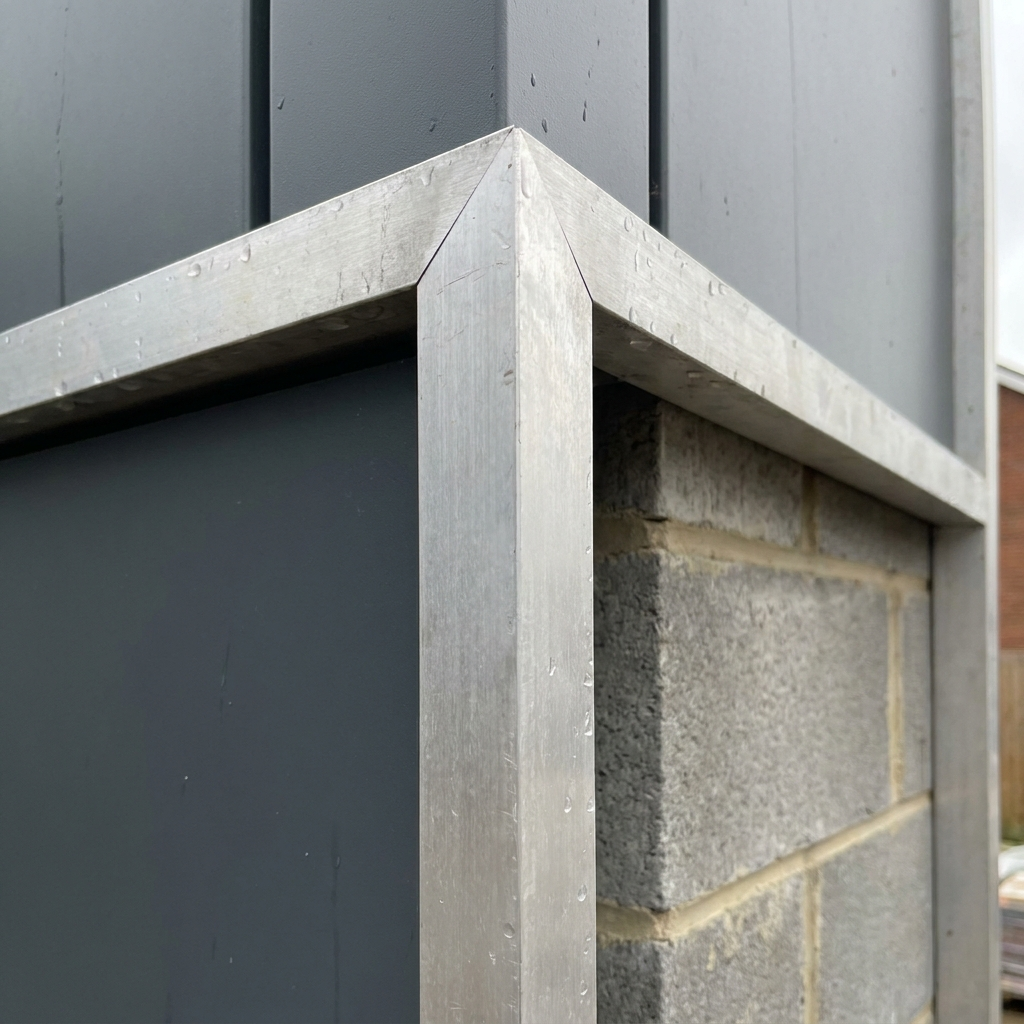

As well as structural framing, 6063 aluminium equal angle is widely used as aluminium angle trim and edging — corner protection, worktop and panel edging, tile and step edge trim, shelf lips and frame edging. The clean extruded L-section gives a neat finished edge, and the natural mill finish can be left bare or anodised or powder coated to a black, polished or coloured trim finish to match your project. For fine edge trims choose a thin-wall small size such as 12x12mm, 19x19mm or 25x25mm; for structural framing and brackets step up to 50mm and larger sections.
Equal vs Unequal Angle
An equal angle has two legs of the same width (for example 50 x 50mm), giving a symmetrical L-section. If you need legs of different widths, see our aluminium unequal angle range.
Common Uses
Structural and architectural framing, edging and trims, brackets and supports, vehicle and trailer bodywork, joinery and shopfitting, and general fabrication and DIY.
Compare Our Full Angle Range
Prefer steel? Compare our other angle sections: mild steel equal angle, mild steel unequal angle, galvanised steel angle and 304 stainless steel angle. Browse the full steel angle collection.
Related Guides
Learn more in our guides: aluminium grades explained (1050 vs 6063 vs 6082), steel vs aluminium and the metal weight calculator.
Delivery Information
Lead times are currently 3-5 working days. Angles are supplied in 5m lengths, so suitable delivery access is required. If your order is long or heavy, please ensure someone is available to help with offloading on arrival.
Collapsible content
FREQUENTLY ASKED QUESTIONS
What grade is the aluminium angle?
Our aluminium equal angle is grade 6063 T6, a medium-strength architectural alloy with high corrosion resistance and an excellent surface finish, ideal for welding, drilling and fabrication.
What length are the angles?
All sizes are supplied in full 5m lengths. Cut to size is available on request - contact us before ordering with your required lengths.
What is the difference between equal and unequal angle?
An equal angle has two legs of the same width, while an unequal angle has legs of different widths. See our unequal angle range for different leg widths.
Can the angle be used outdoors?
Yes - 6063 T6 aluminium is highly corrosion-resistant and suitable for indoor and outdoor use, including architectural, marine and transport applications.
What are the delivery lead times?
Lead times are currently 3-5 working days. Angles are supplied in 5m lengths, so please ensure suitable delivery access.
