Convex Bar Handrail Ends & Corners

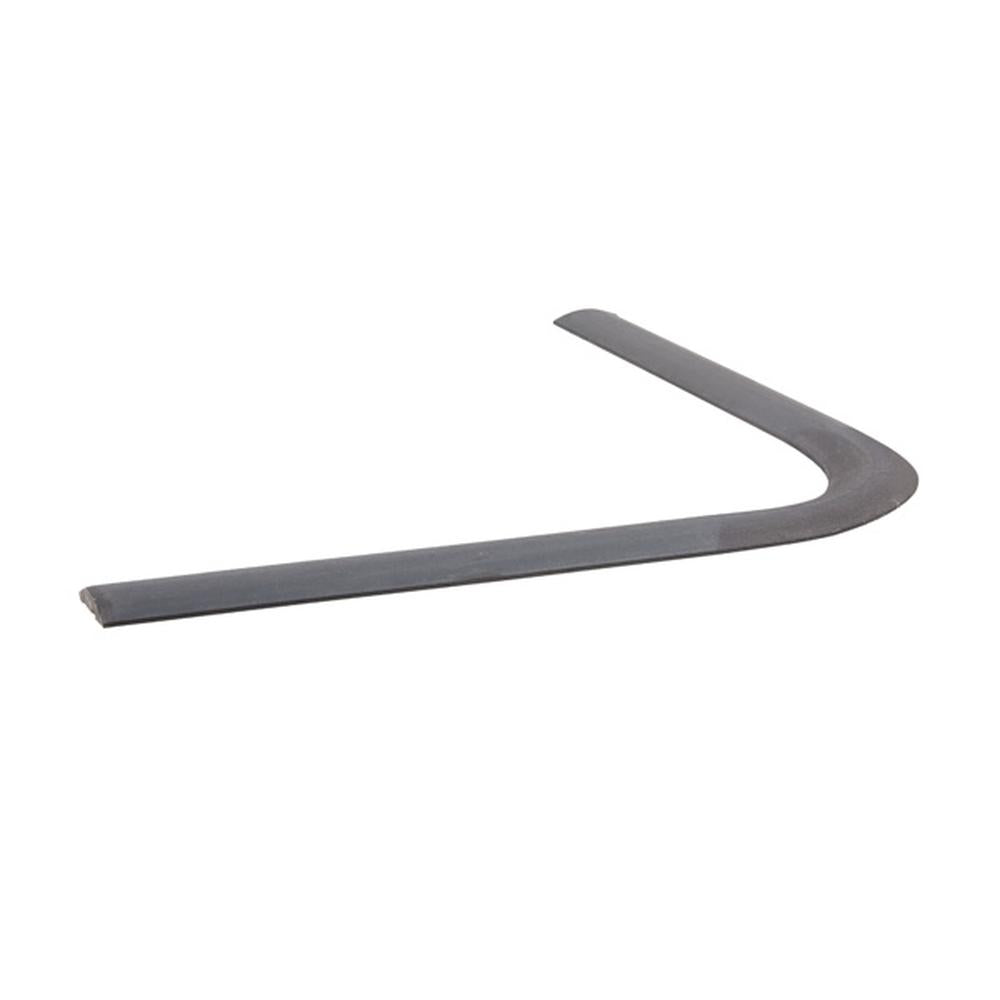

Pre-formed handrail ends and corners for convex bar (feather edge) handrails. Finish off a handrail run with a neat curved return, or turn a corner cleanly, without hand-fabricating the detail. Match the size to your convex bar.

What's Available

Curved handrail ends in several profiles (short return, tall sweep, flat return) and a 90-degree corner, sized to suit 30mm, 40mm and 50mm convex bar. Choose from the dropdown.

How They Fit

Each is welded to the end of a convex bar handrail run and finished to match. Supplied in mill-finish mild steel, ready to prime and paint. Pair with our convex bar (sold separately) for the handrail itself.

Frequently Asked Questions

What are these for?
These are pre-formed ends and corners for convex bar (feather edge) handrails. The handrail ends finish off the end of a run with a neat curved return; the corners turn the handrail through 90 degrees. They save you fabricating these details by hand.

How do I choose the right one?
Match the size (e.g. 40 x 12mm) to the convex bar you are using, and pick the end shape that suits - the L200 x H100 is a short scroll return, the L250 x H650 is a tall sweep down to a post, the L200 x H35 is a flat return. Check the dimensions against your design.

How are they fixed?
They are welded to the end of the convex bar handrail run, then ground and finished. Supplied in mill-finish mild steel ready for priming and painting.
