Perforated Mild Steel Sheet
Perforated Mild Steel Sheet
Couldn't load pickup availability
Perforated mild steel sheet from Rackerman, available in 30 hole patterns from R0.8/T1.5 to R20/T27, in thicknesses of 0.5mm, 1mm, 1.5mm, 2mm, 3mm, 5mm and sheet sizes of 2 x 1m and 2.5 x 1.25m. Manufactured from S235/S275 grade mild steel with a mill finish, it is the most versatile and cost-effective perforated metal for fabrication, guarding and architectural work. Select your exact hole pattern, sheet size and thickness from the options above – every combination is a stocked specification supplied across the UK.
Why choose perforated mild steel sheet
Perforated mild steel combines strength with open area for airflow, light, drainage and visual effect. It is widely used for ventilation grilles, machine and plant guards, screens and sieves, balustrade and balcony infill panels, acoustic screening, vehicle and trailer panels, agricultural screens, sign blanks and decorative facade cladding. Smaller holes (such as R0.8/T1.5) give a finer, more solid appearance with higher strength; larger holes (such as R20/T27) give a greater open area for maximum airflow and through-vision.
Hole patterns available

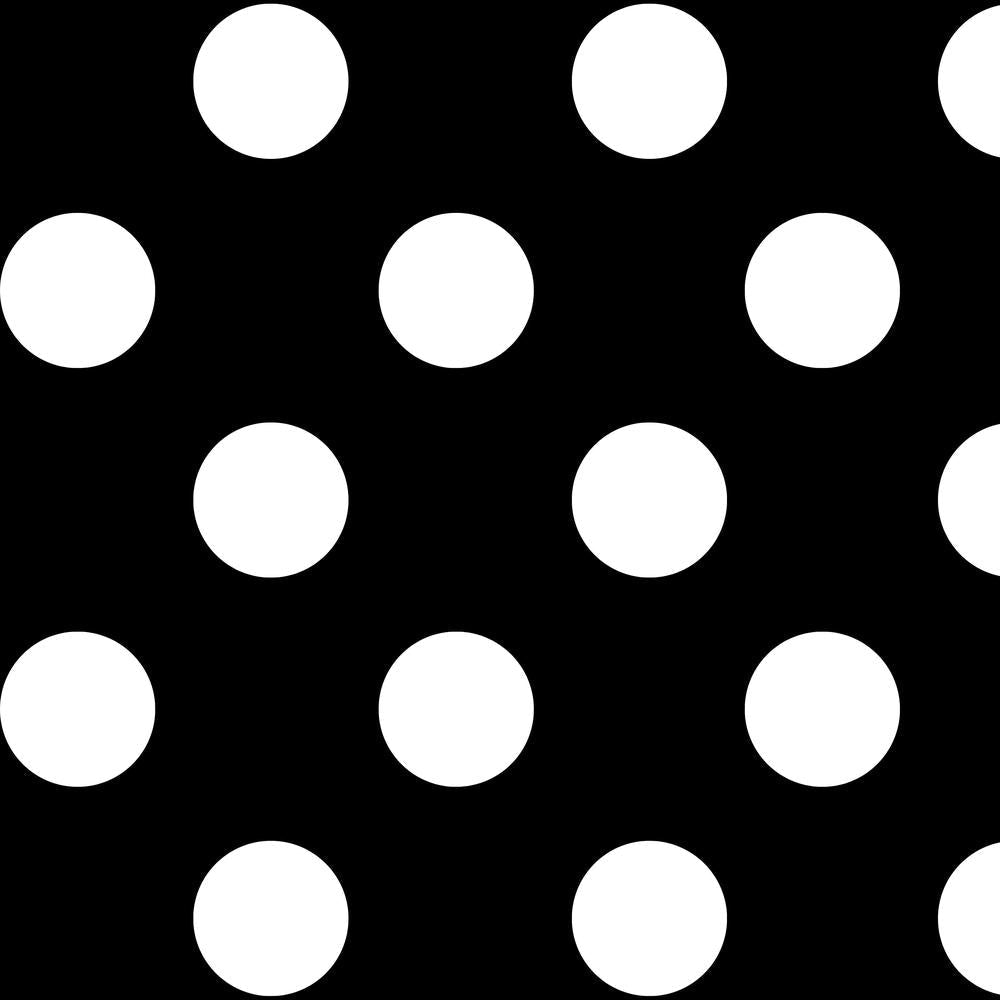

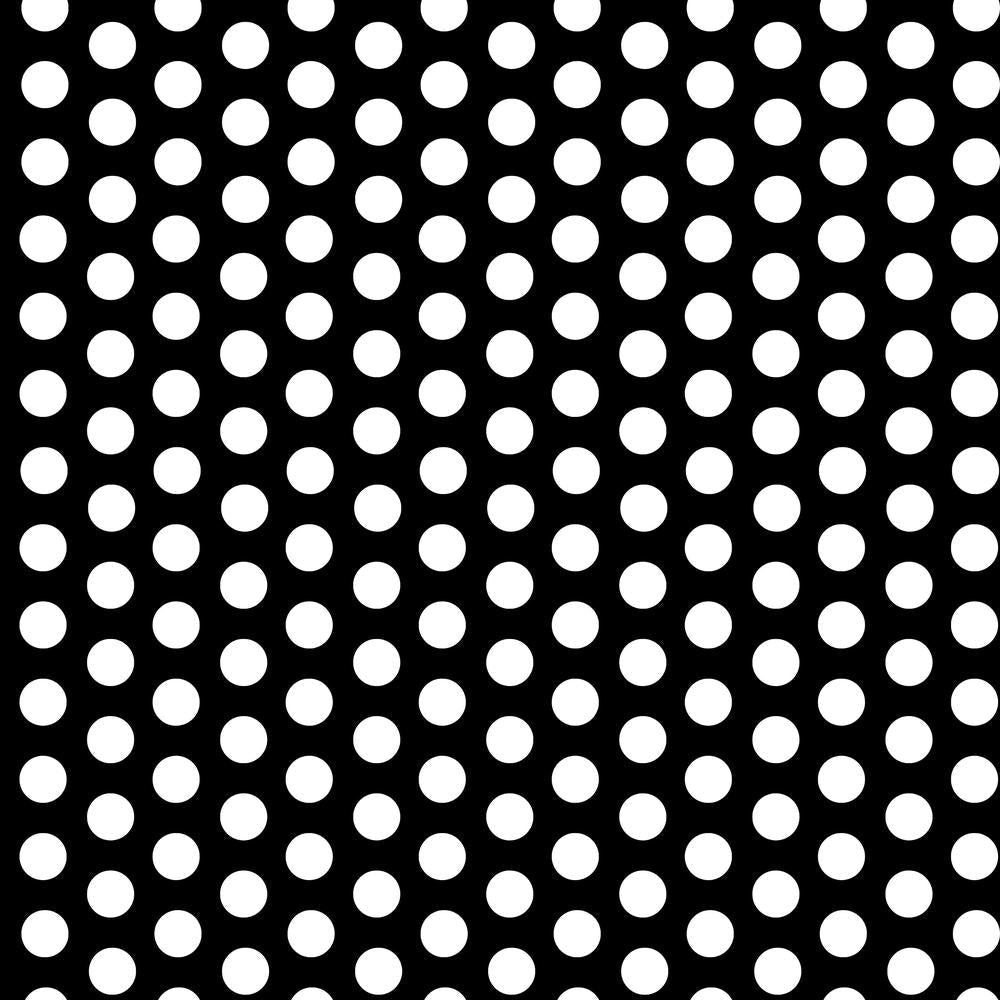

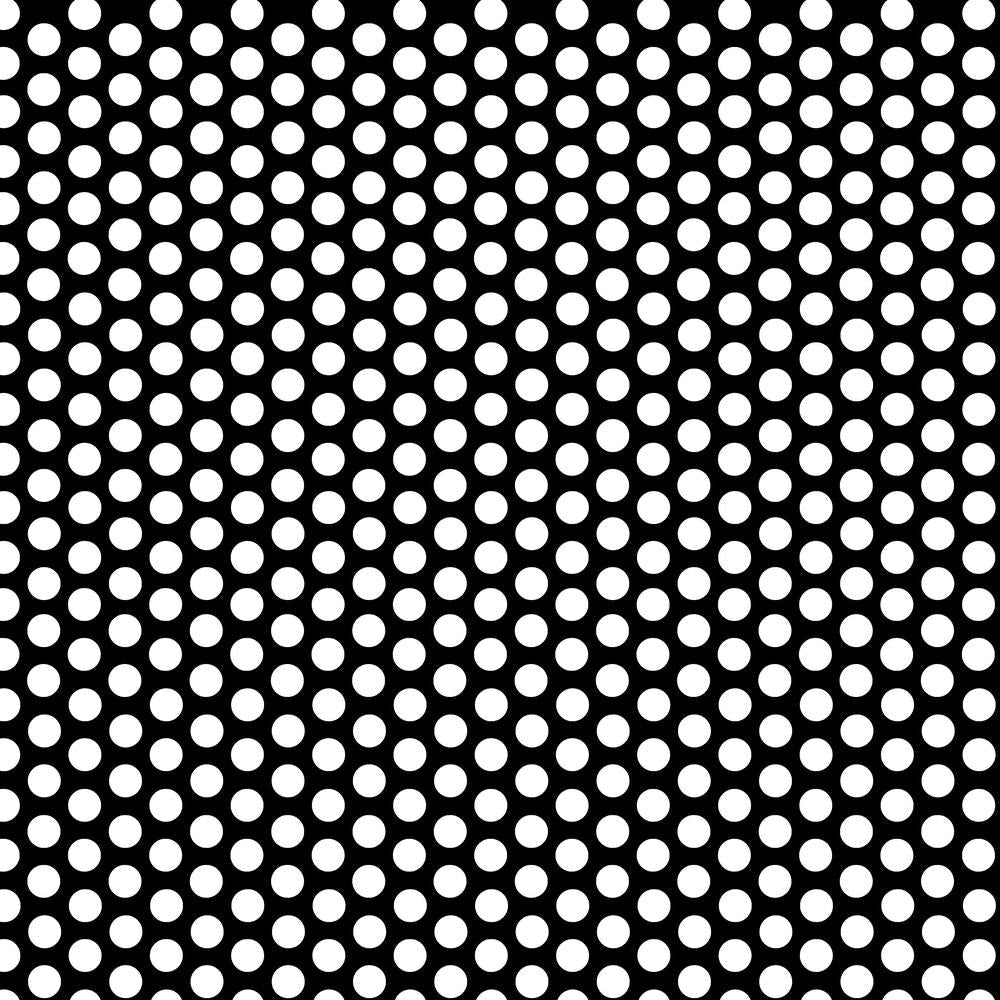

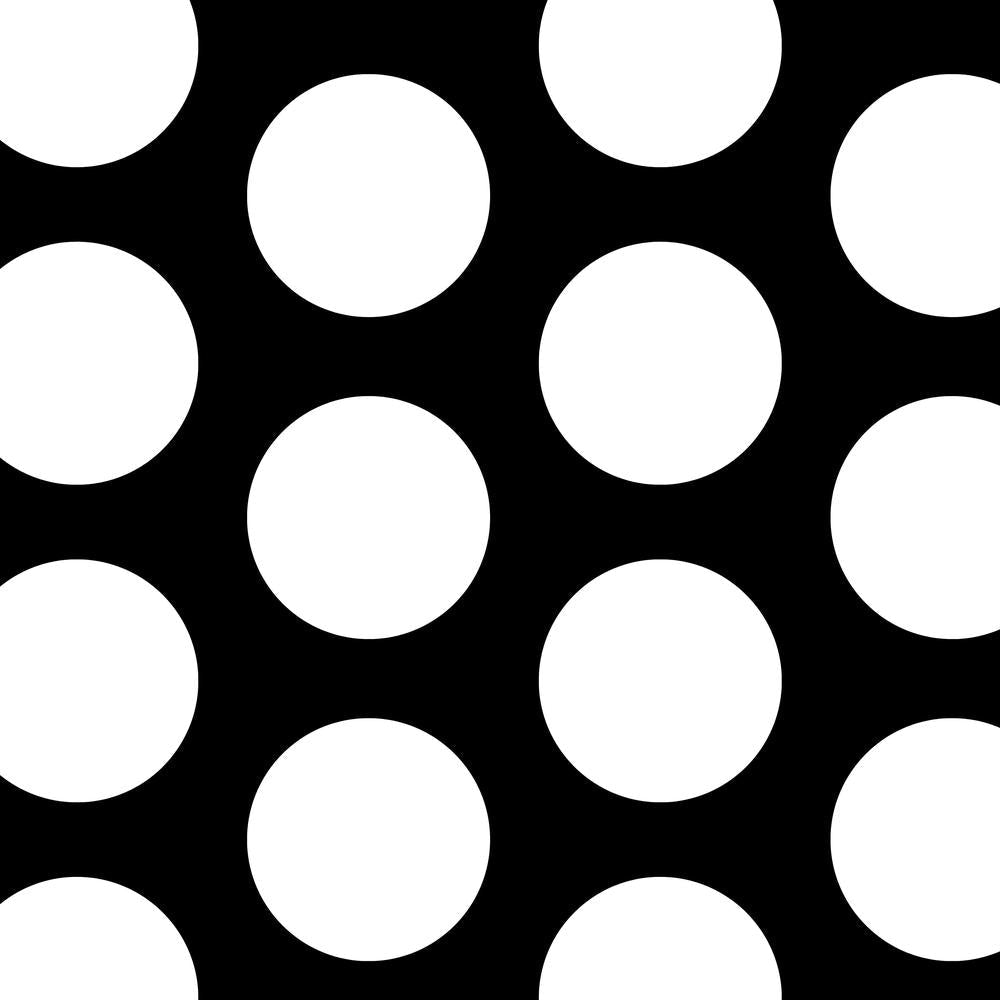

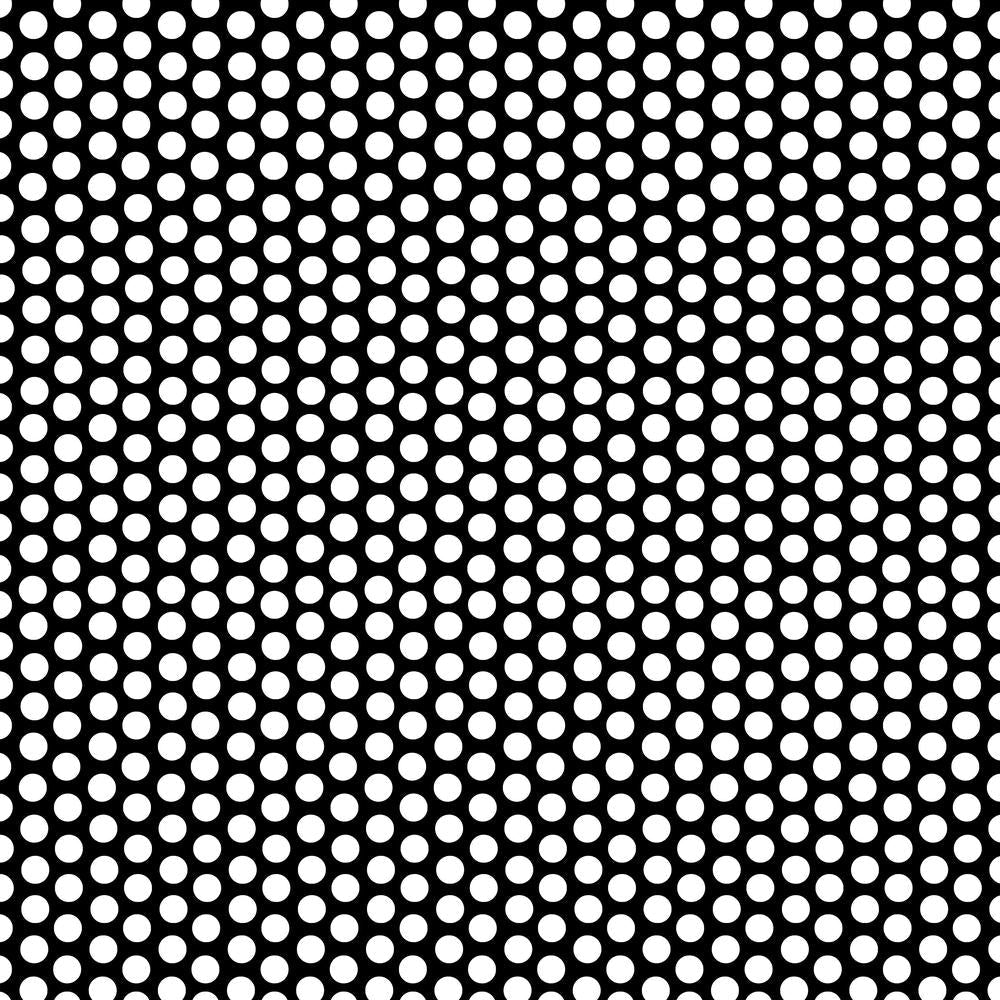

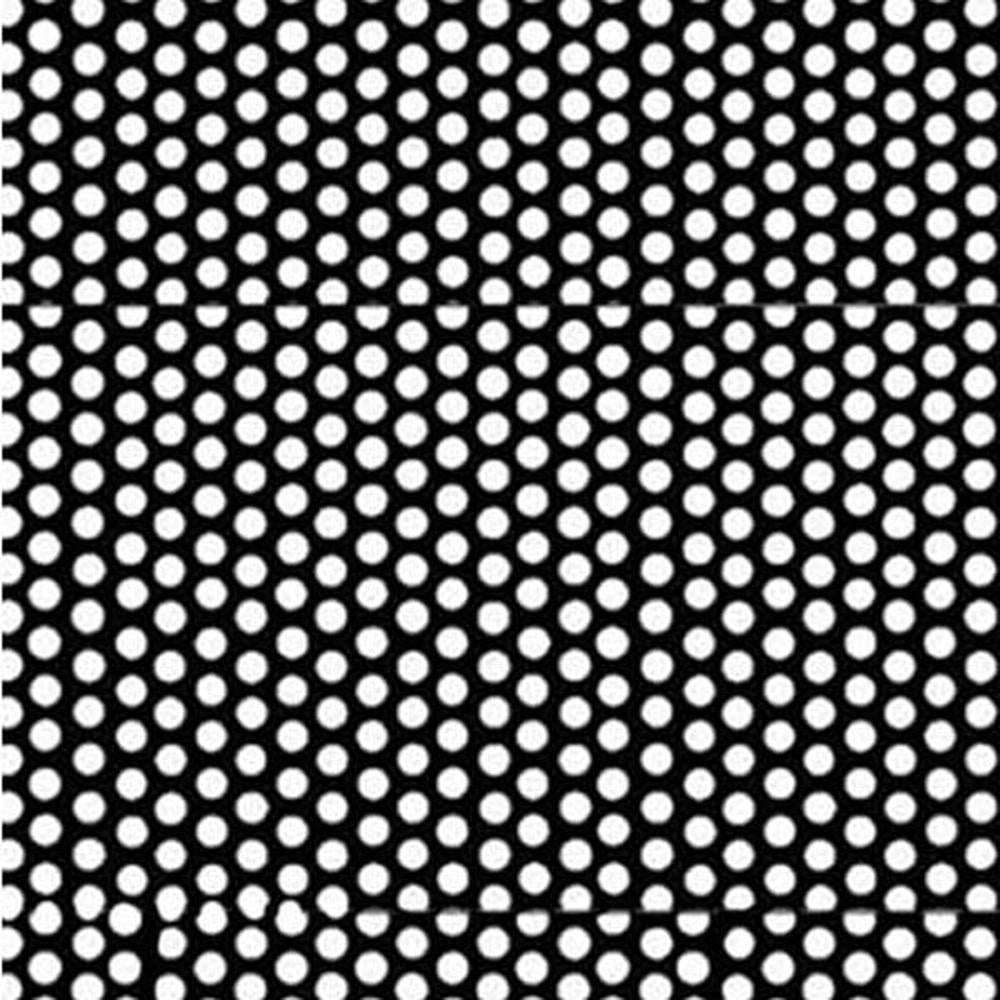

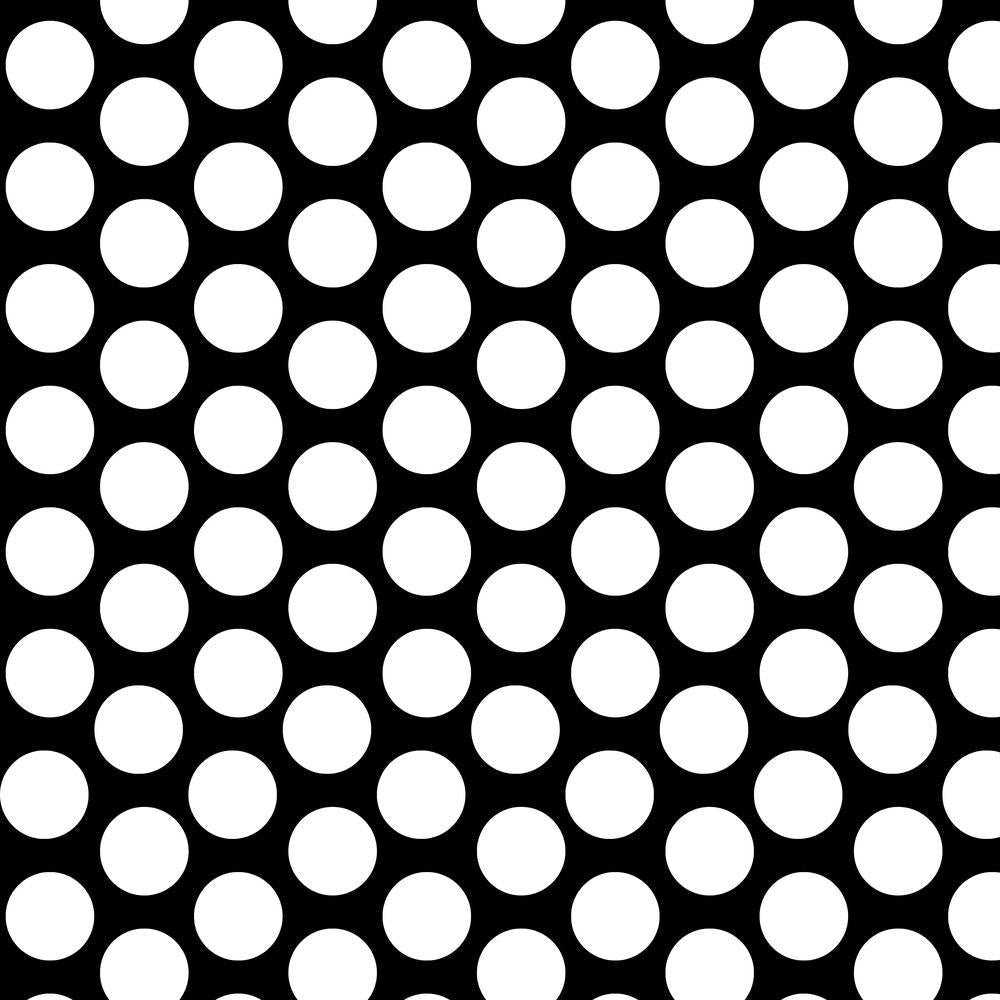

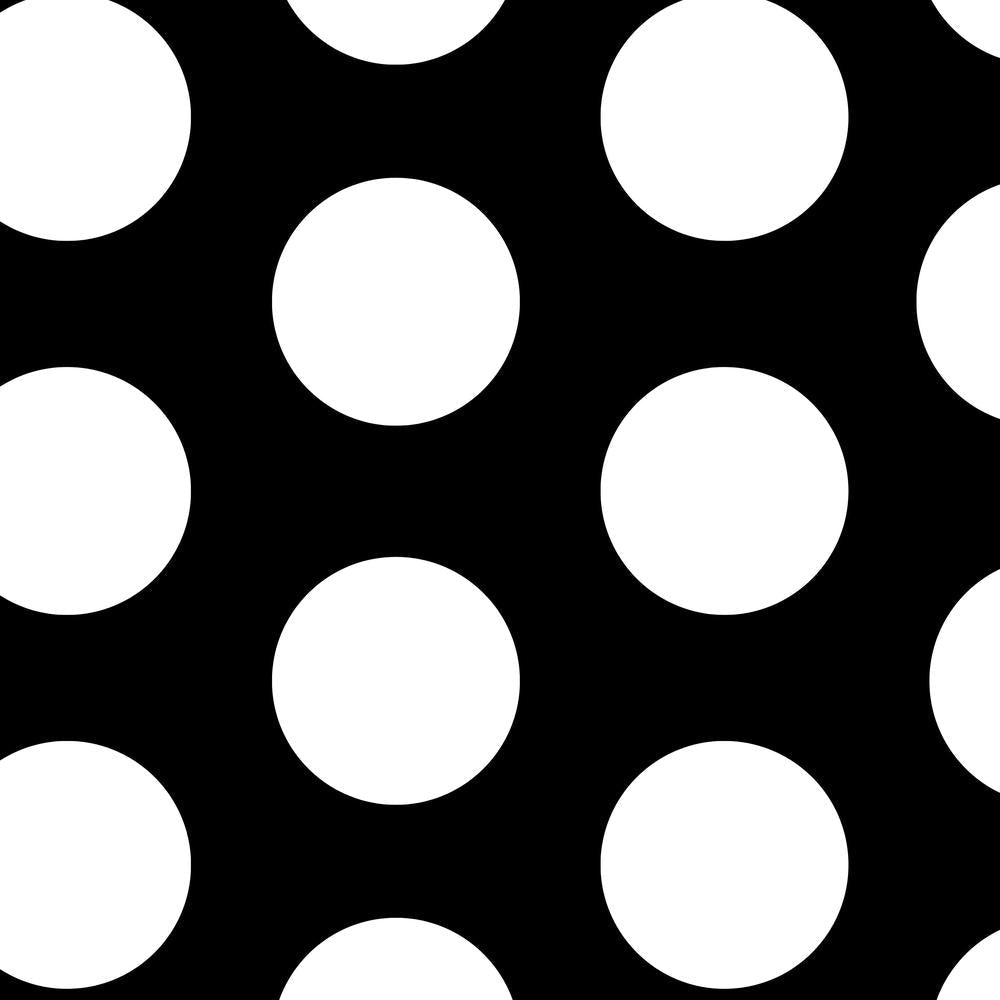

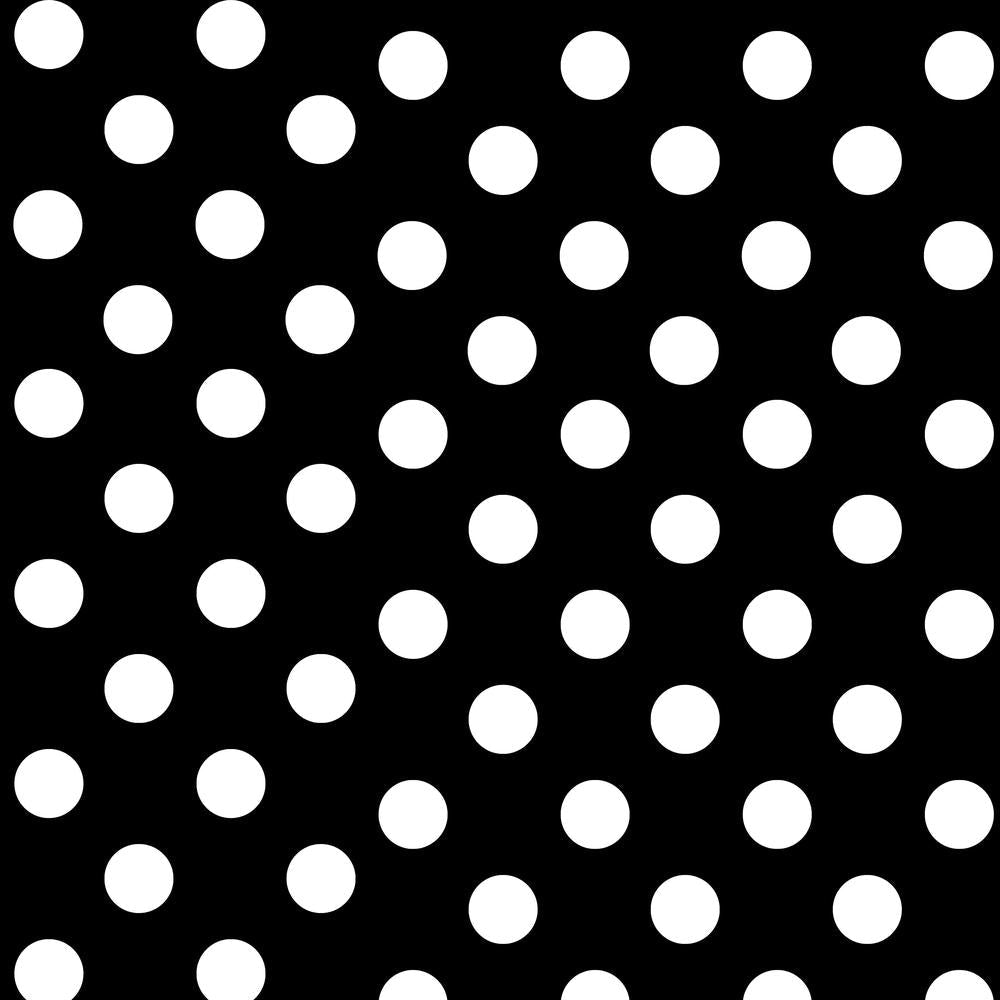

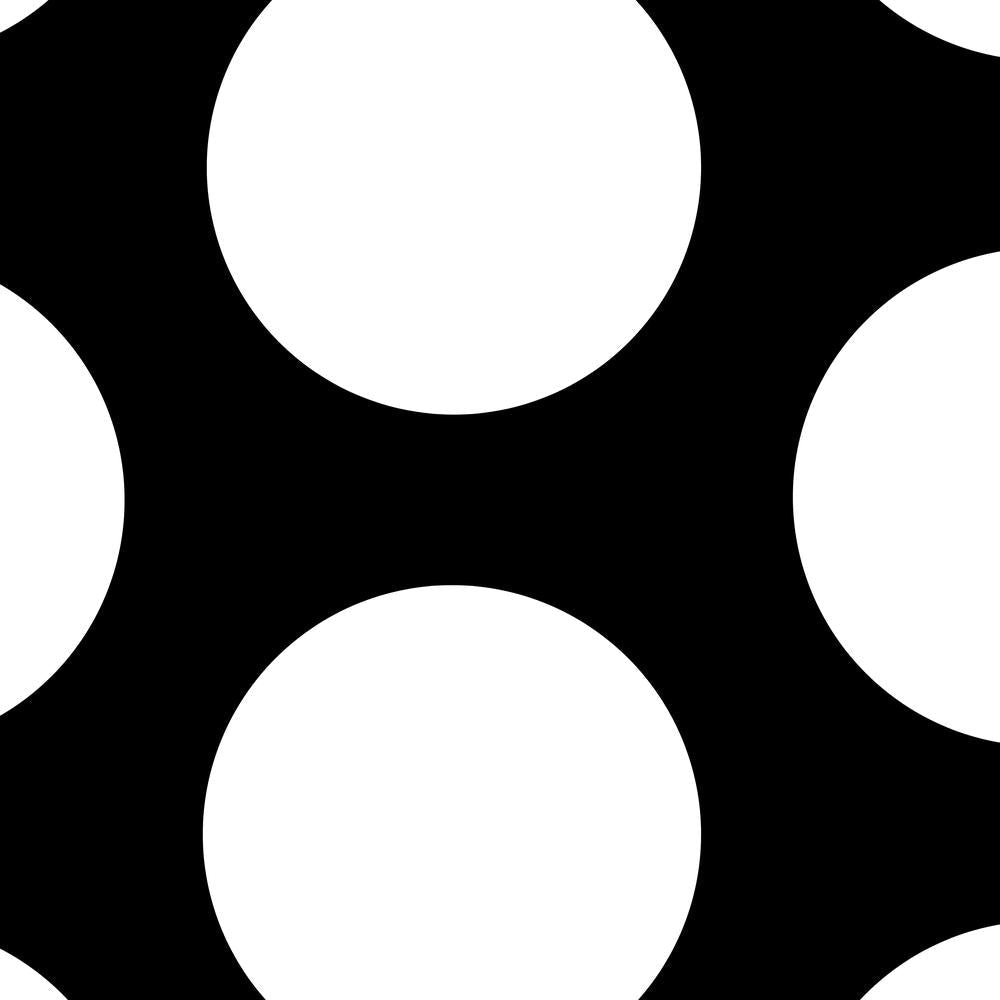

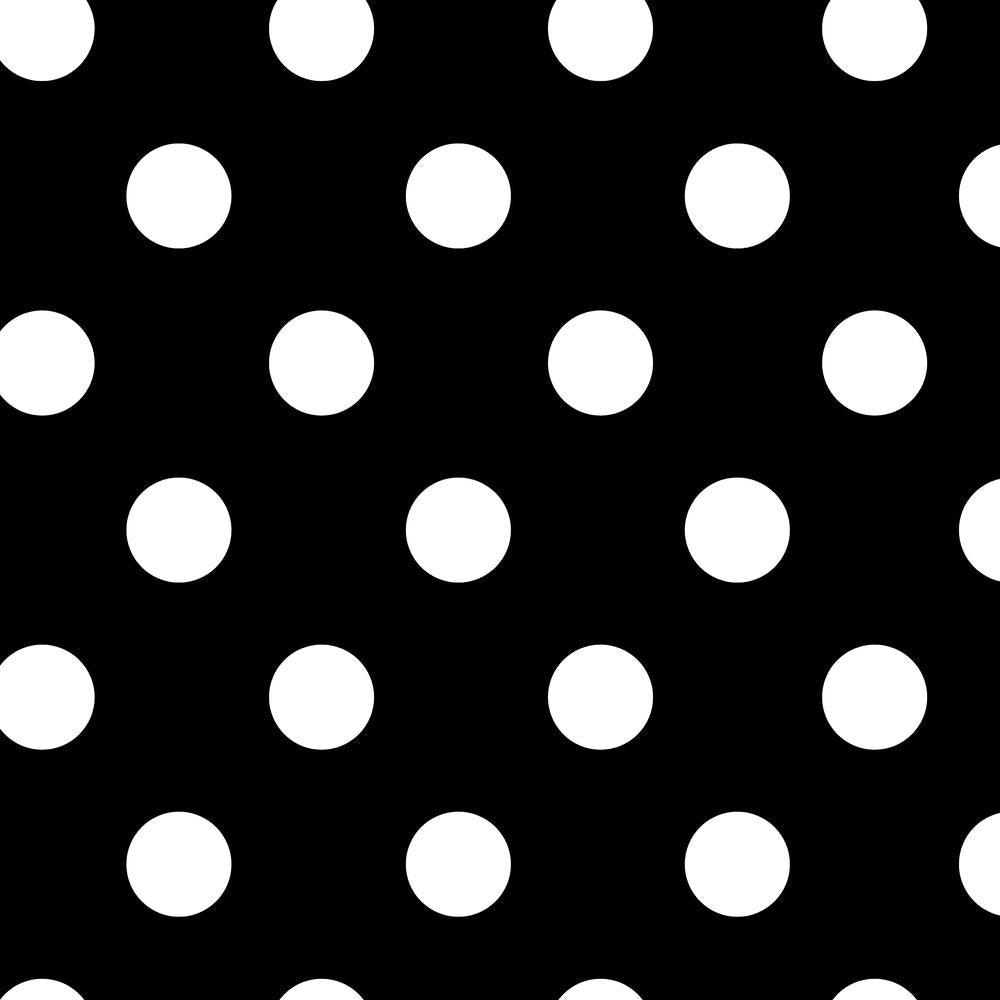

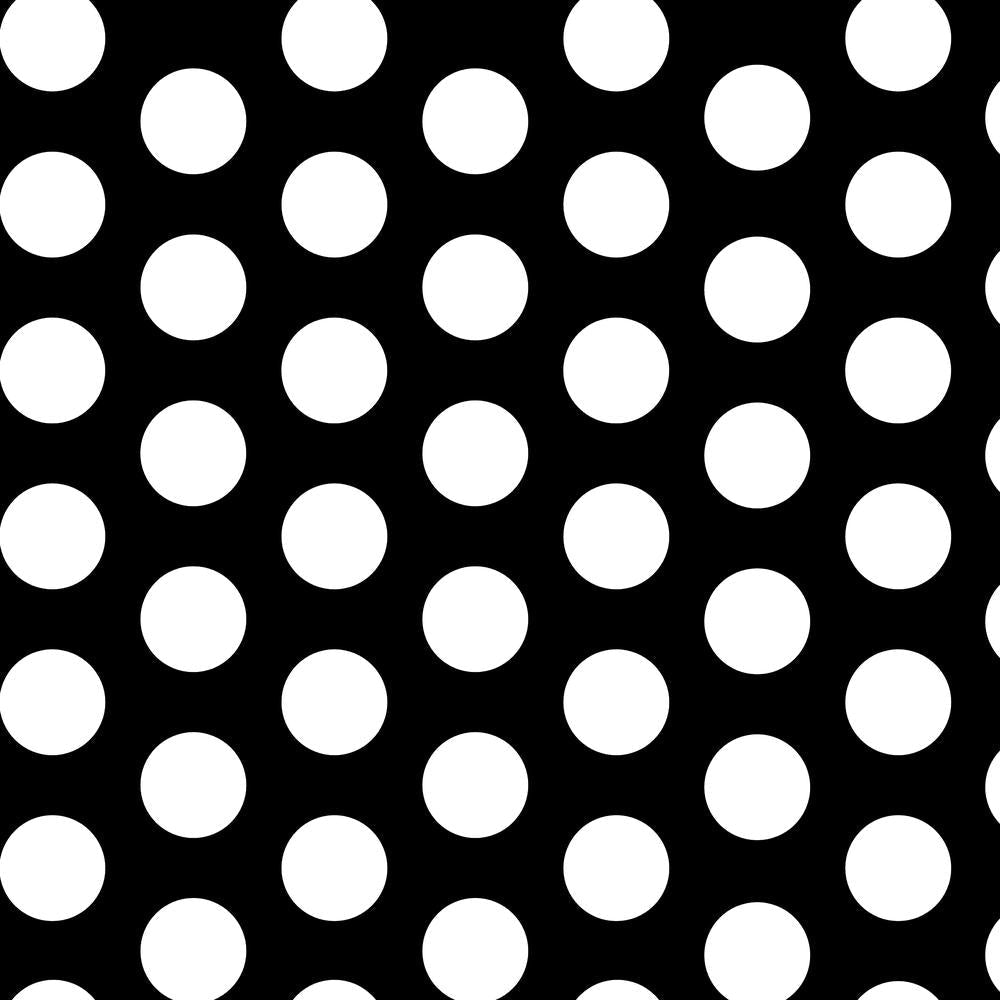

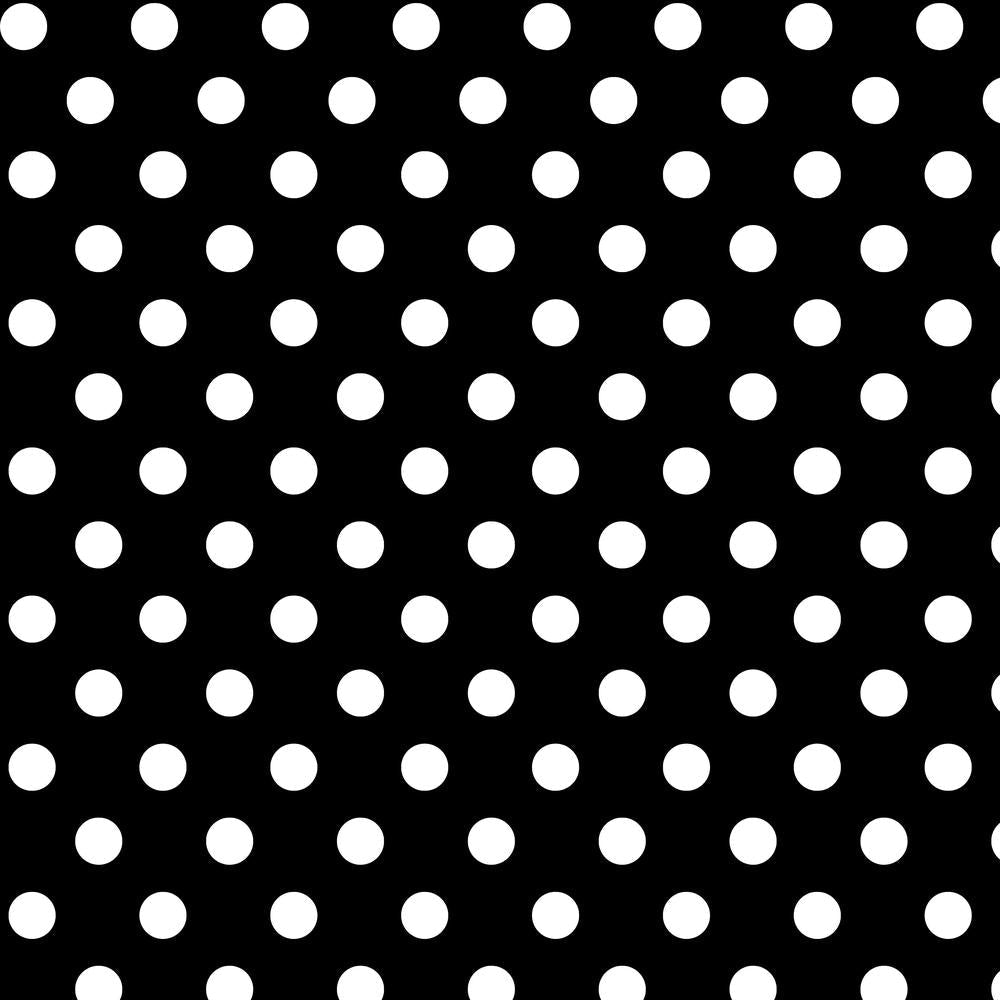

All patterns are round-hole on a staggered 60° triangular layout, the UK industry standard. The pattern code reads as R (hole diameter) / T (pitch, centre-to-centre spacing).
| Pattern | Hole | Pitch |
|---|---|---|
| R0.8/T1.5 | 0.8mm round | 1.5mm |
| R1/T2 | 1mm round | 2mm |
| R1.2/T2.25 | 1.2mm round | 2.25mm |
| R1.5/T2.75 | 1.5mm round | 2.75mm |
| R2/T3 | 2mm round | 3mm |
| R2/T3.5 | 2mm round | 3.5mm |
| R2/T4 | 2mm round | 4mm |
| R2.5/T3.5 | 2.5mm round | 3.5mm |
| R3/T4 | 3mm round | 4mm |
| R3/T5 | 3mm round | 5mm |
| R4/T5 | 4mm round | 5mm |
| R4/T6 | 4mm round | 6mm |
| R4/T7 | 4mm round | 7mm |
| R5/T6 | 5mm round | 6mm |
| R5/T7 | 5mm round | 7mm |

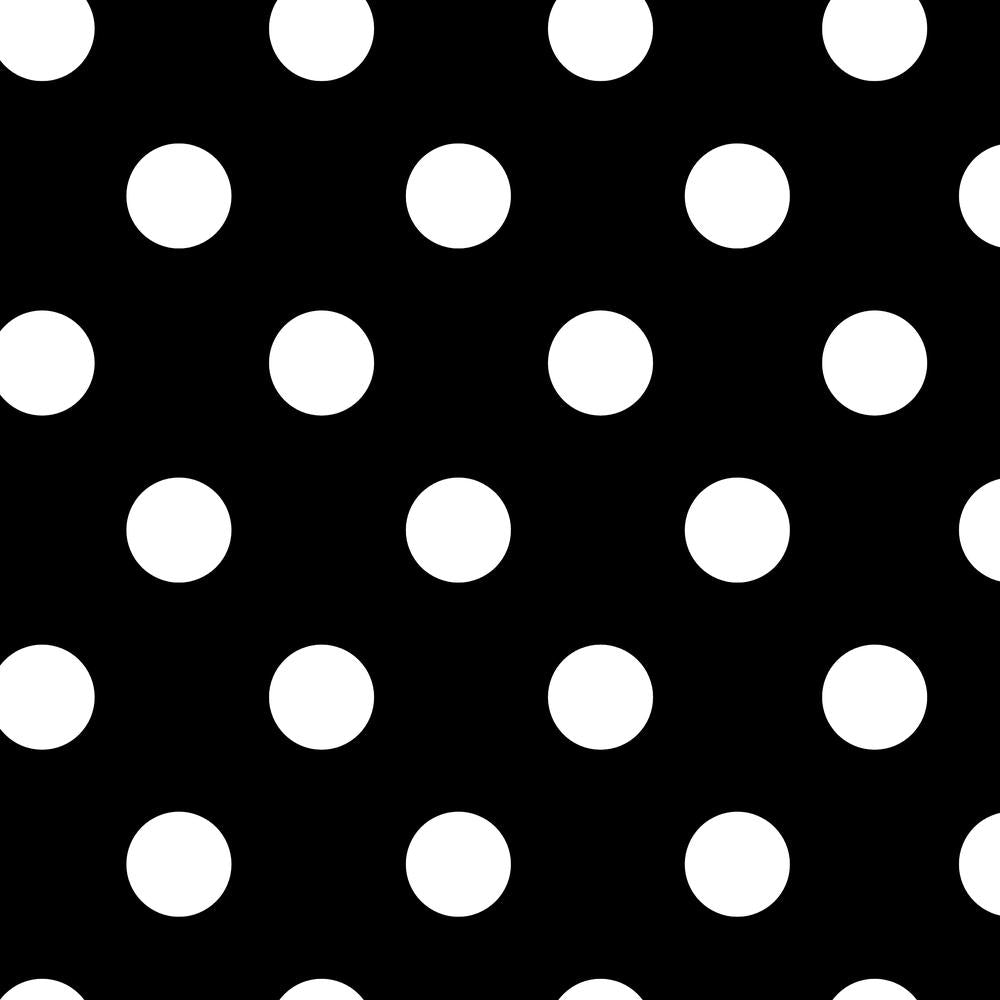

| R5/T8 | 5mm round | 8mm |

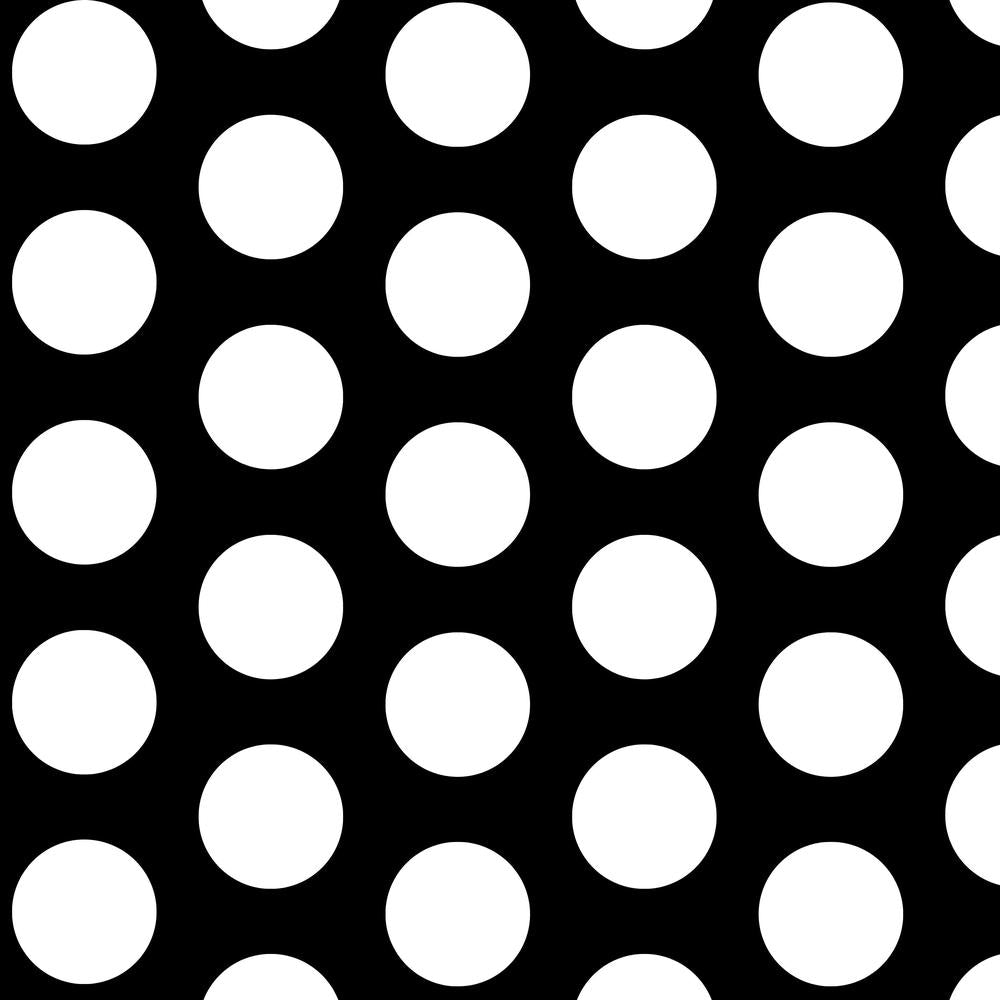

| R6/T8 | 6mm round | 8mm |
| R6/T8.5 | 6mm round | 8.5mm |
| R6/T9 | 6mm round | 9mm |
| R6/T10 | 6mm round | 10mm |
| R6/T12 | 6mm round | 12mm |
| R8/T11 | 8mm round | 11mm |
| R8/T12 | 8mm round | 12mm |
| R10/T13 | 10mm round | 13mm |
| R10/T15 | 10mm round | 15mm |
| R10/T18 | 10mm round | 18mm |
| R12/T13 | 12mm round | 13mm |
| R12/T17 | 12mm round | 17mm |
| R15/T21 | 15mm round | 21mm |

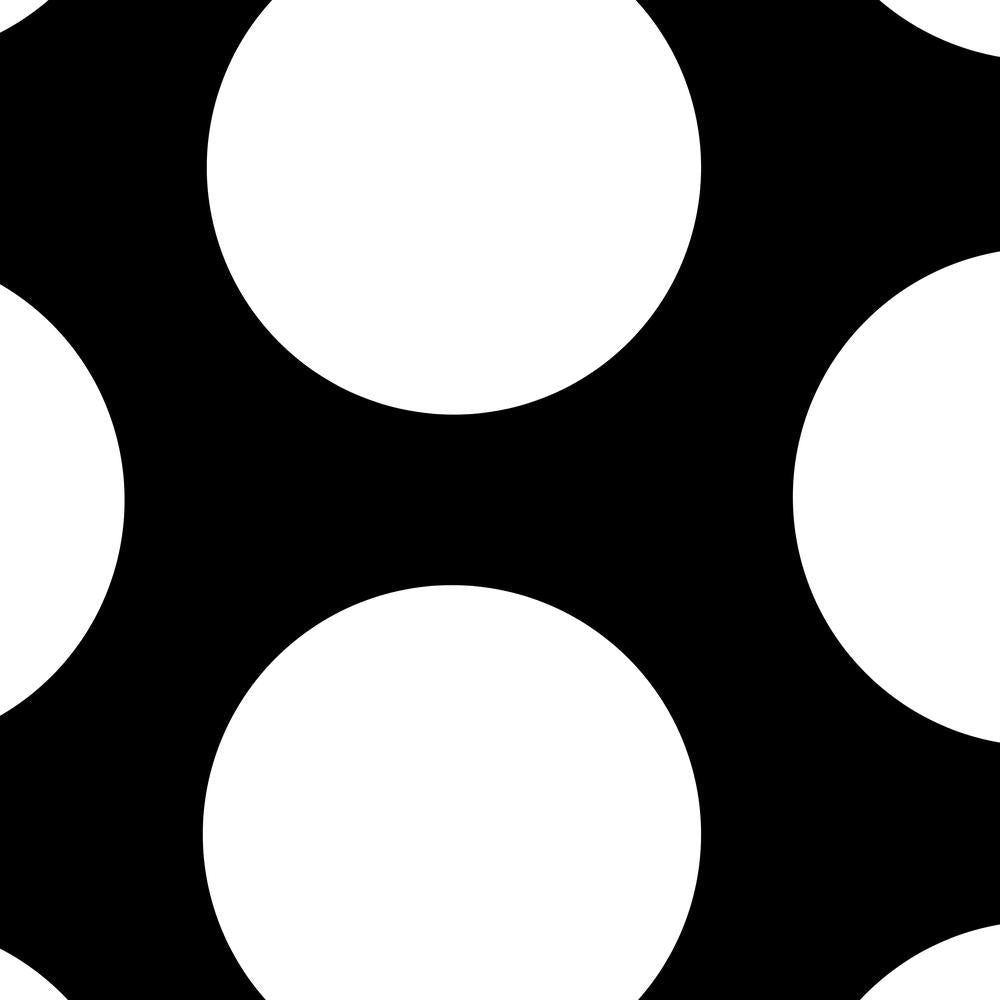

| R20/T27 | 20mm round | 27mm |
Sizes, thickness & specification
Sheet sizes: 2 x 1m and 2.5 x 1.25m. Thicknesses: 0.5mm, 1mm, 1.5mm, 2mm, 3mm, 5mm. Heavier gauges give greater rigidity and load-bearing capacity; lighter gauges are easier to cut, form and handle for decorative screens. Material is supplied to BS EN ISO 9001 production tolerances. These are stock-size sheets – for bespoke cut-to-size pieces or trade quantities (5+ sheets) contact us for a project quote.
Delivery & offloading
Lead times are currently 3–5 working days. Perforated sheets are heavy, bulky items and are delivered on a pallet to mainland UK addresses. Please ensure suitable site access and someone available to assist with offloading. Free UK delivery is included.
Collapsible content
FREQUENTLY ASKED QUESTIONS
What does a code like R5/T8 mean?
The 'R' is the round hole diameter in millimetres and the 'T' is the pitch – the centre-to-centre spacing between holes – on a staggered 60° pattern. So R5/T8 is 5mm round holes spaced 8mm apart. This is the standard UK perforated sheet convention.
What is perforated mild steel used for?
Perforated mild steel sheet is used for ventilation grilles, machine guards, screens and sieves, balustrade and balcony infill, acoustic panels, vehicle and trailer panels, agricultural screens, sign blanks and decorative facade cladding. Hole size and pitch determine the open area and the look.
Can I order a specific hole pattern, size and thickness?
Yes – choose the hole pattern, sheet size and thickness from the options on this page and the correct price updates automatically. Each combination is a stocked specification.
What's the delivery lead time?
Lead times are currently 3–5 working days. Sheets are heavy, bulky items delivered on a pallet to mainland UK addresses – suitable site access and someone to assist with offloading are required.
