Where it's used
One sheet, dozens of jobs — swipe through real settings for aluminium chequer plate.
Which thickness do you need?
Base-plate thickness — the raised five-bar pattern sits on top. Tap a thickness to see what it's built for.
Sheet weight calculator
Know the weight before it arrives — heavier sheets are pallet-delivered and may need offload assistance.
Calculated for grade 5754 aluminium (density 2.70 g/cm³) including the raised tread pattern. Weights are approximate.
Full specification
| Thickness | 2500 × 1250mm sheet | 2000 × 1000mm sheet | Typical use |
|---|---|---|---|

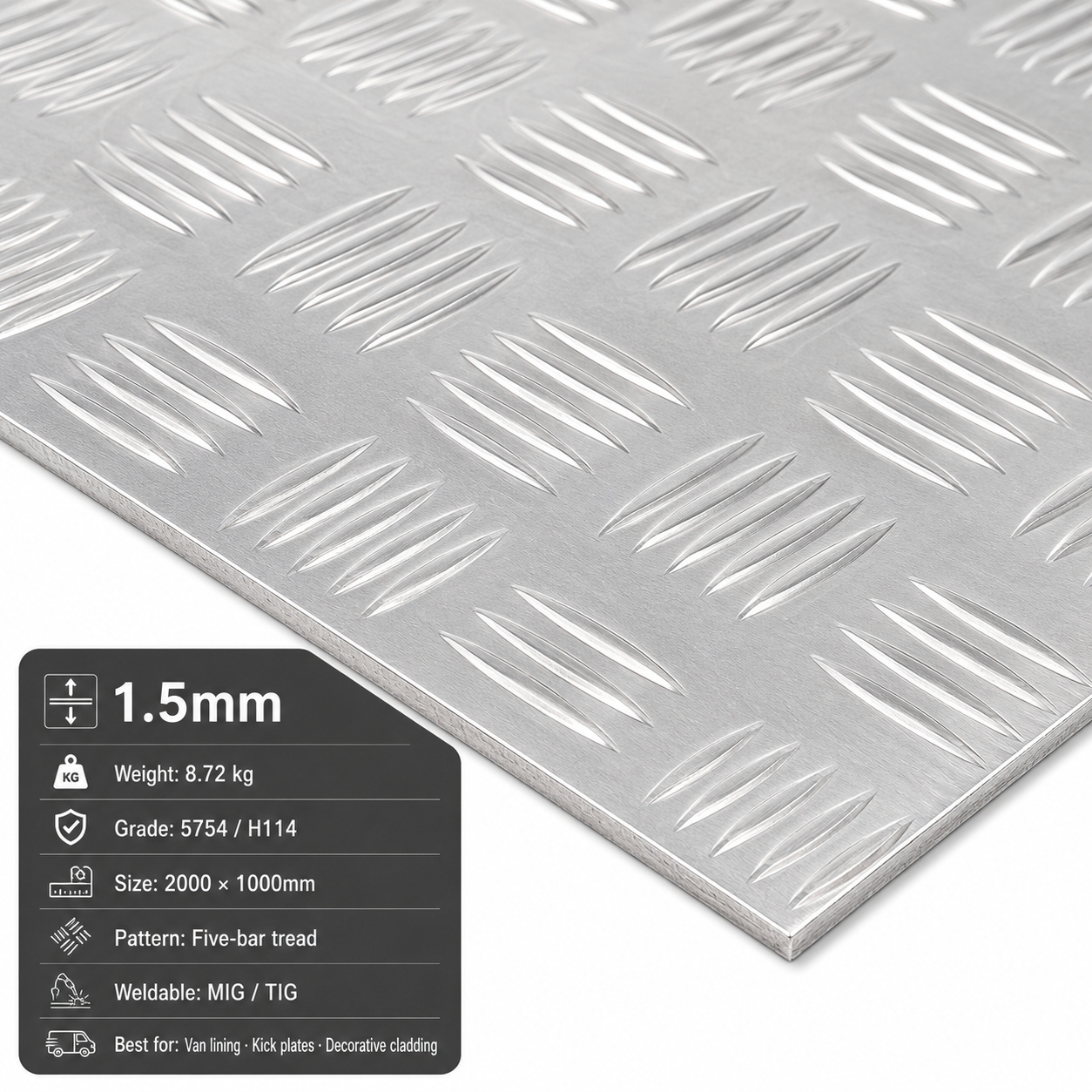

| 1.5mm | ~13.2 kg | ~8.4 kg | Decorative panels, cladding |

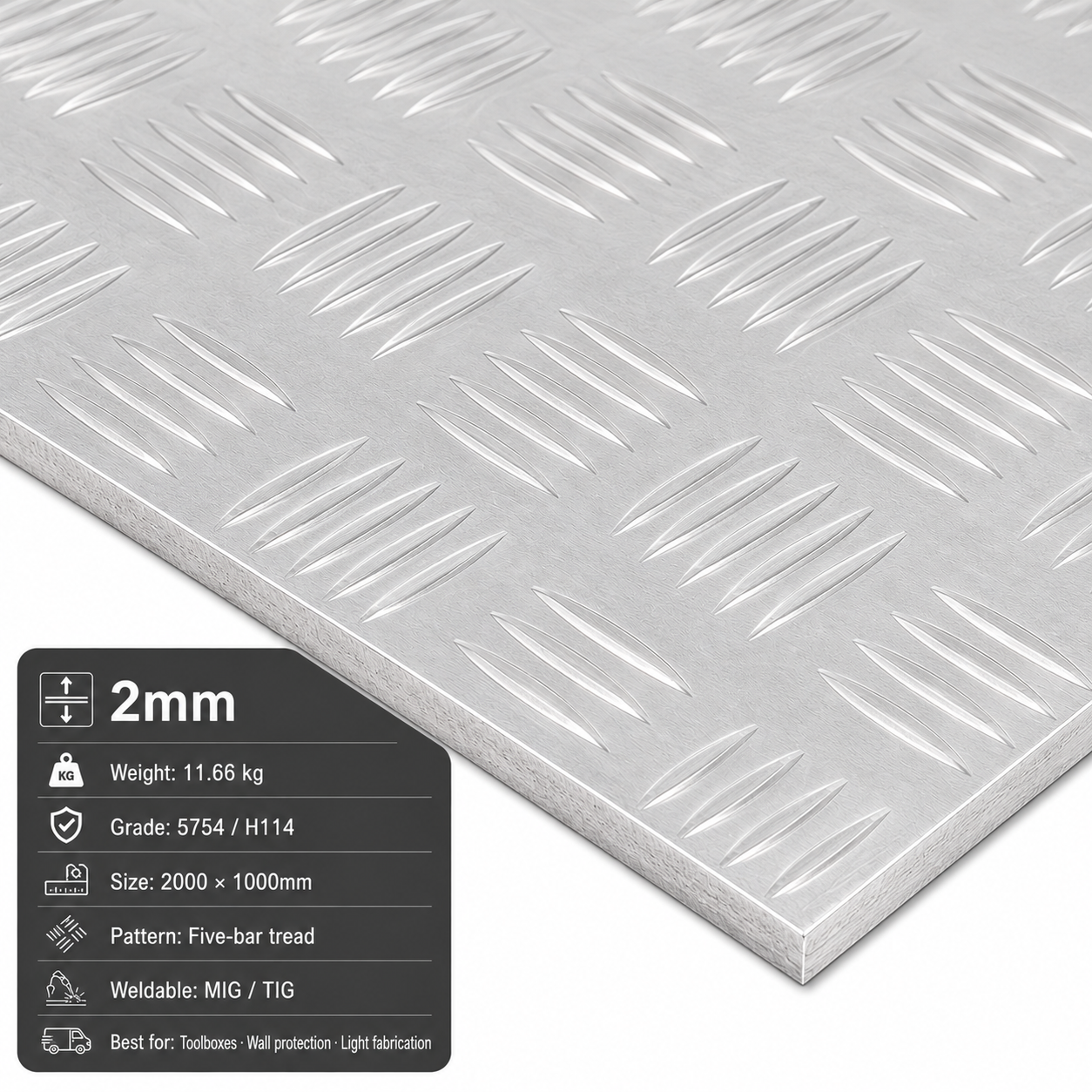

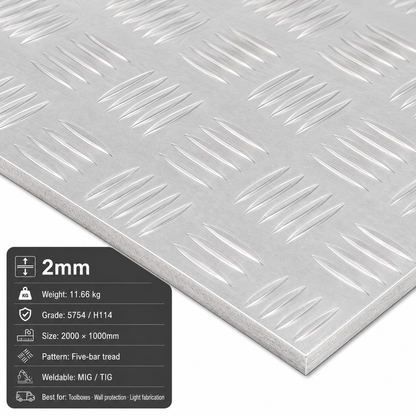

| 2mm | ~17.6 kg | ~11.2 kg | Van linings, light flooring |

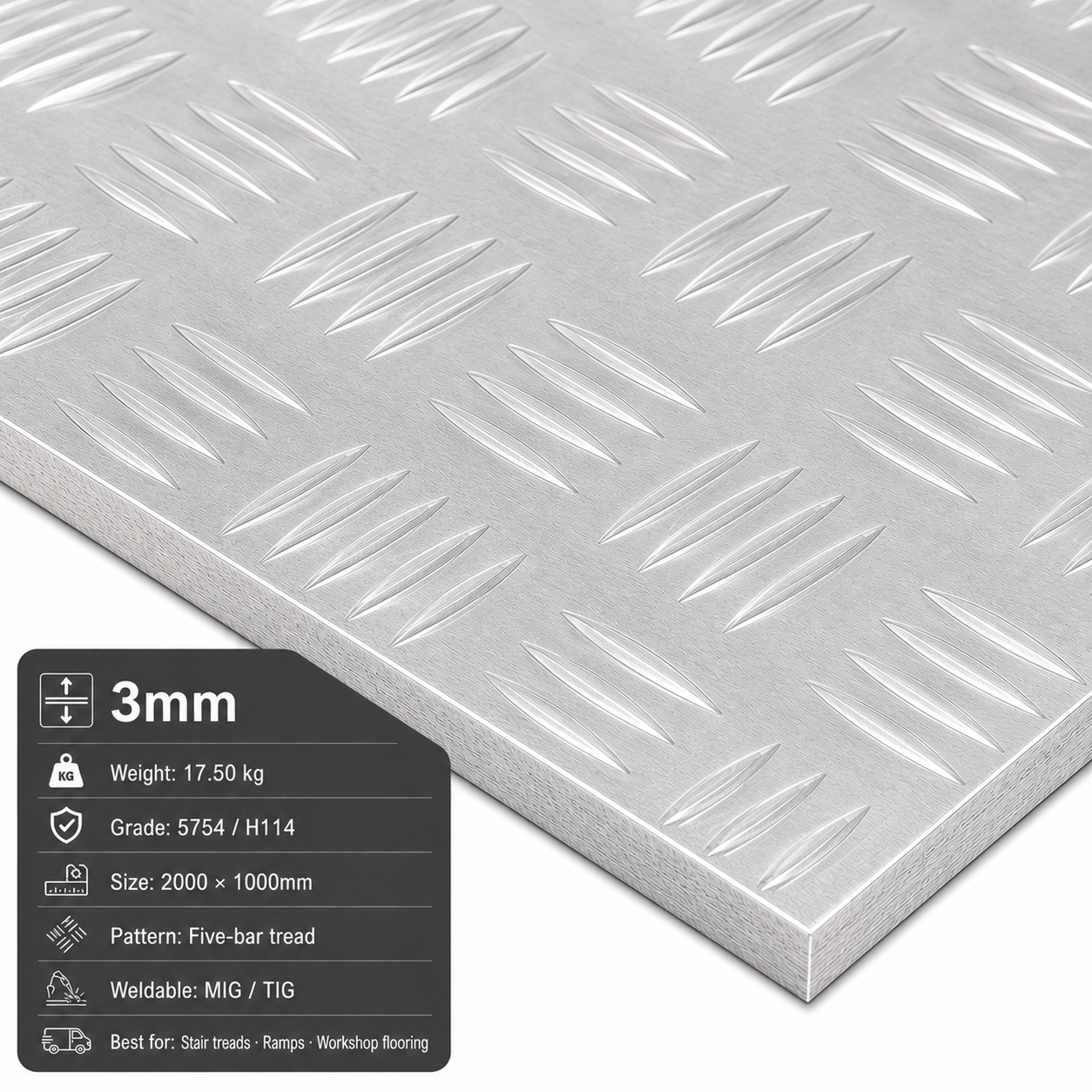

| 3mm | ~26.3 kg | ~16.8 kg | Medium-duty floors, stair treads |

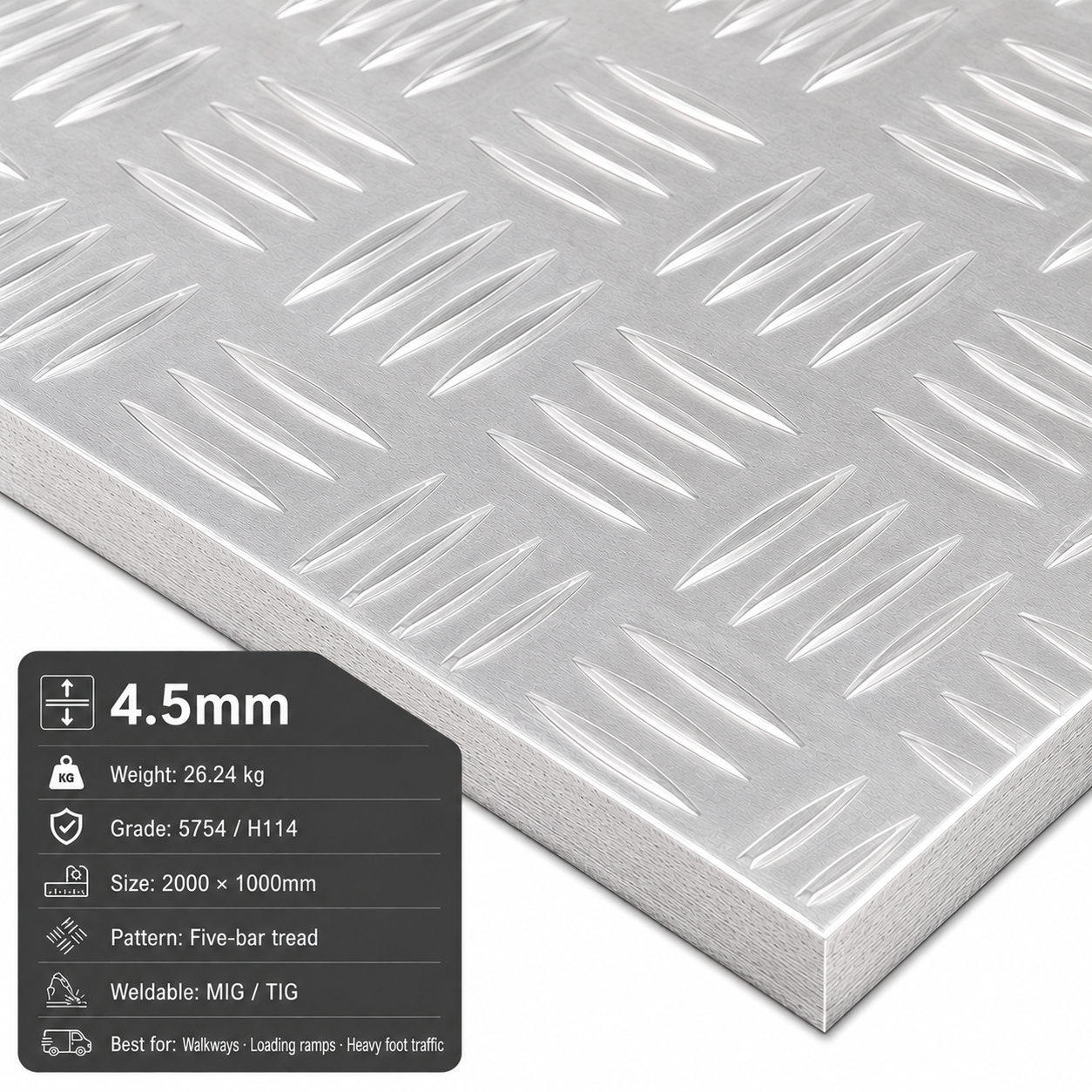

| 4.5mm | ~39.5 kg | ~25.3 kg | Heavy walkways, ramps |

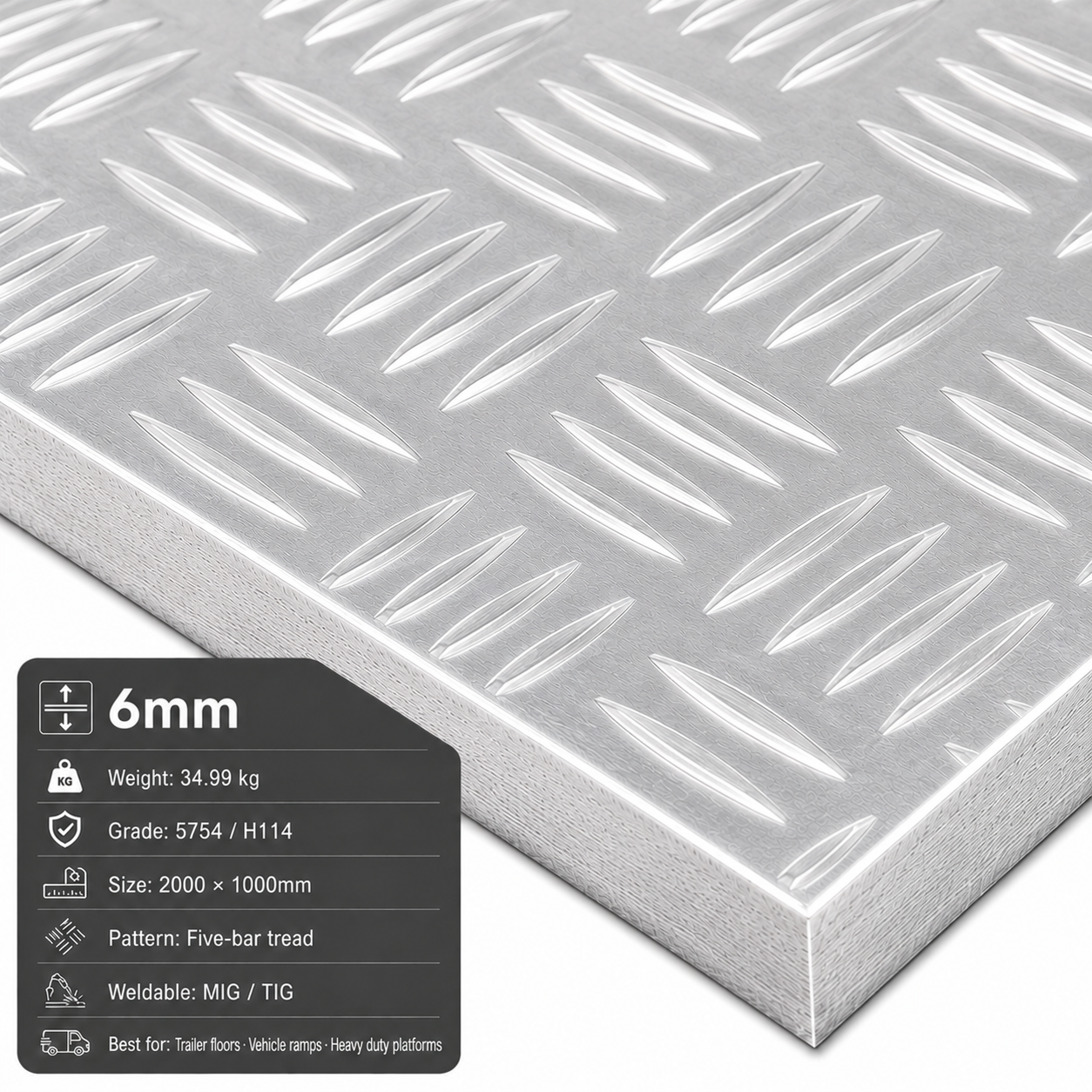

| 6mm | ~52.7 kg | ~33.7 kg | Loading bays, high-load areas |
- Grade: 5754 (H22) marine-grade aluminium alloy

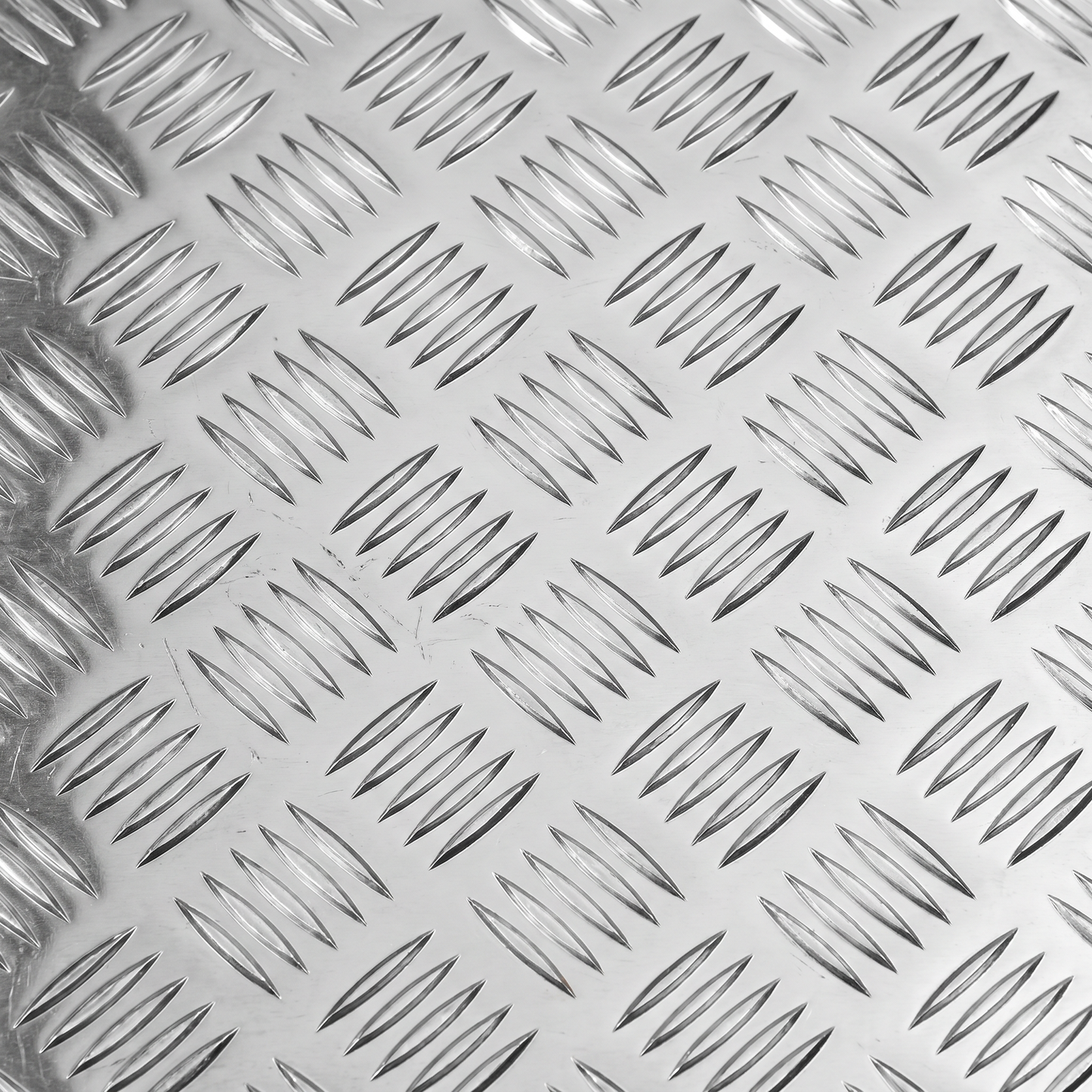

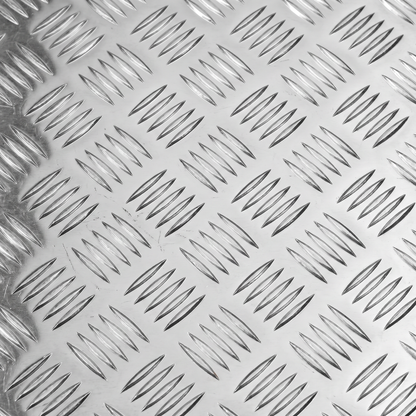

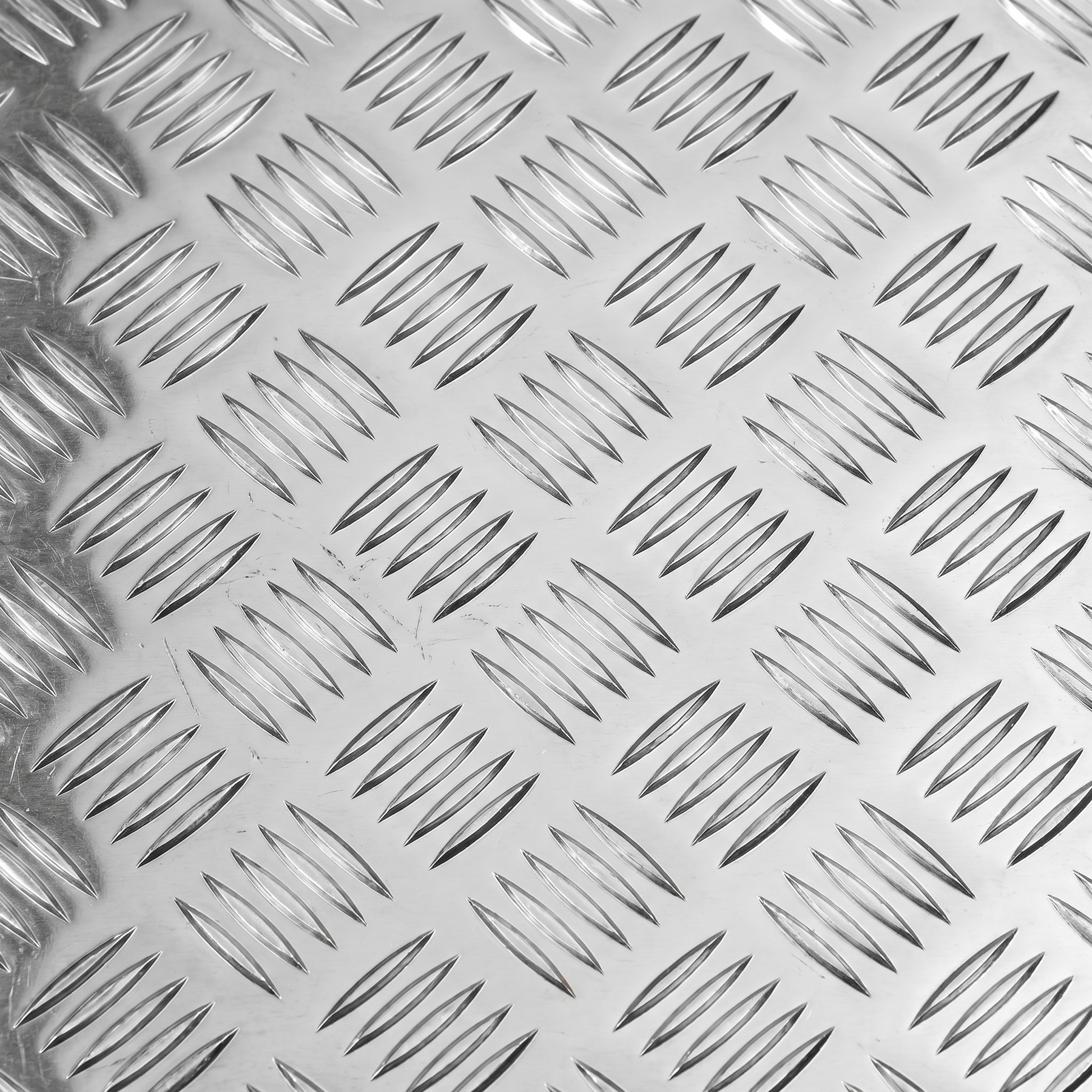

- Pattern: Raised five-bar (5-bar) tread
- Sizes: 2500 × 1250mm (8×4ft) & 2000 × 1000mm (2m × 1m) — supplied as full sheets
- Finish: Mill finish, one patterned face
- Cutting: Sold as fixed full sheets — we do not cut these to size
Aluminium vs Steel chequer plate
Both grip well — the right choice depends on weight, corrosion and load.
| Feature | Aluminium 5754 | Steel Durbar S275 |
|---|---|---|
| Weight | Light — ~⅓ of steel | Heavy |
| Corrosion | Won't rust | Rusts unless painted/galv |
| Outdoor / marine | Ideal | Needs protection |
| Load-bearing strength | Good | Highest |
| Handling / install | Easy, one-person | Heavier lift |
| Best for | Trailers, vans, ramps, decorative | Industrial floors, ramps under heavy plant |
Common uses

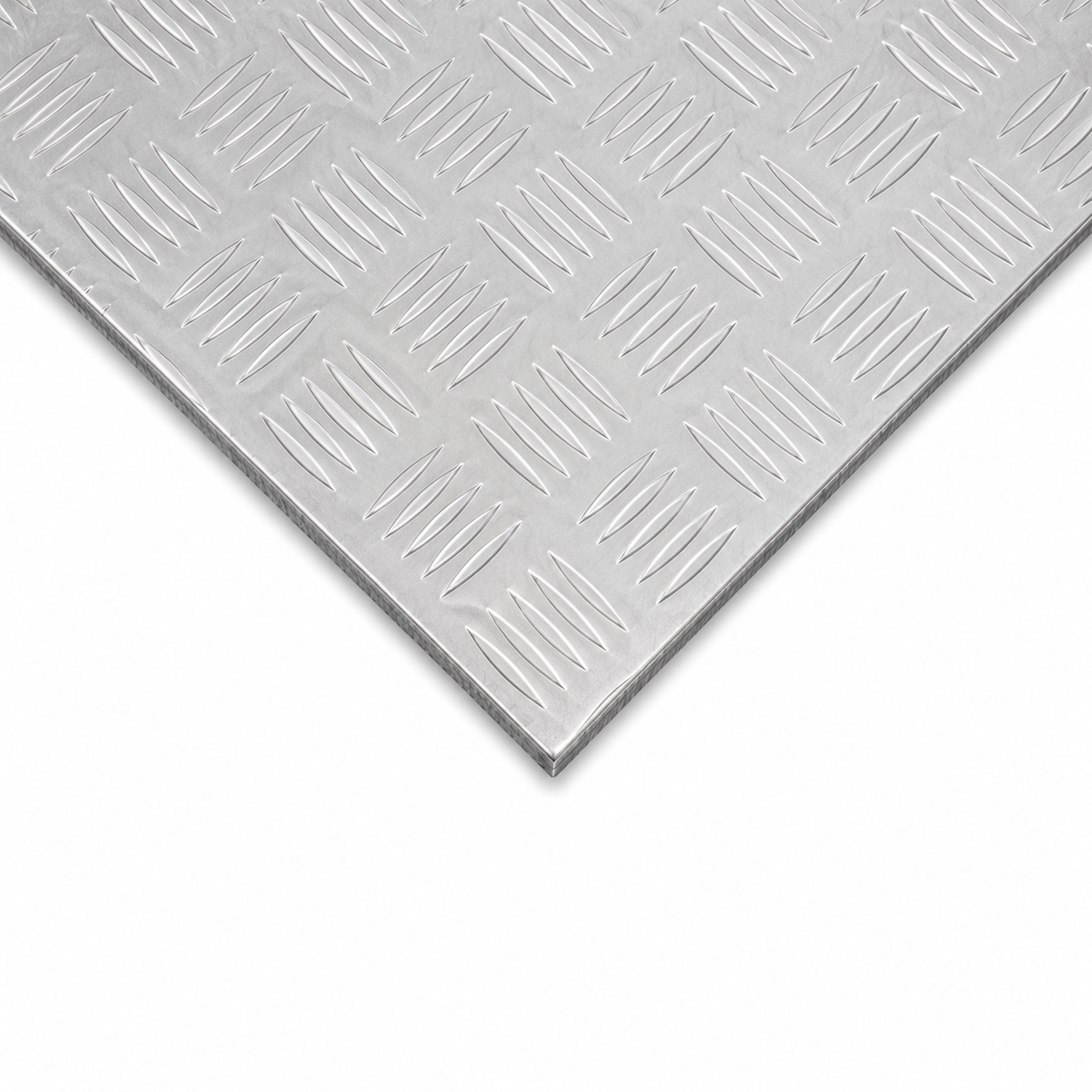

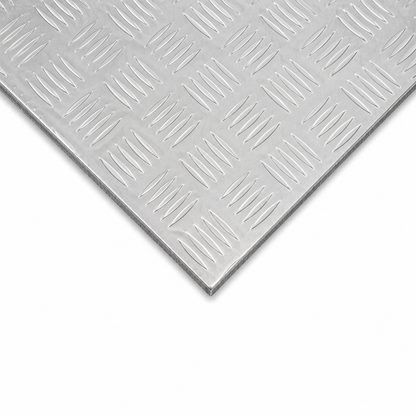

Our 2000 x 1000mm (2m x 1m) aluminium chequer plate is supplied in 5754 grade with a raised five-bar tread pattern, available in 1.5mm to 6mm base thicknesses. Lightweight, corrosion-resistant and easy to fabricate, suitable for trailer floors, vehicle lining, ramps, kick plates and decorative work, with a 3-5 working day lead time to mainland UK addresses.
Technical Specification
| Material | 5754 aluminium (H114 temper) |
| Pattern | Raised five-bar tread |
| Sheet size | 2000 x 1000mm |
| Thicknesses available | 1.5mm - 6mm (base thickness) |
| Density | 2,700 kg/m3 (approx) |
| Weight | Approx. 8.7 kg (1.5mm) to 35 kg (6mm) per sheet |
| Finish | Mill finish bright aluminium |
| Corrosion resistance | Excellent - suitable indoor and outdoor |
| Weldability | Good - suitable for MIG and TIG welding |
| Workability | Cuts, drills and fabricates with standard tools |
| Lead time | 3-5 working days (mainland UK; up to 10 to remote areas) |
Common Uses

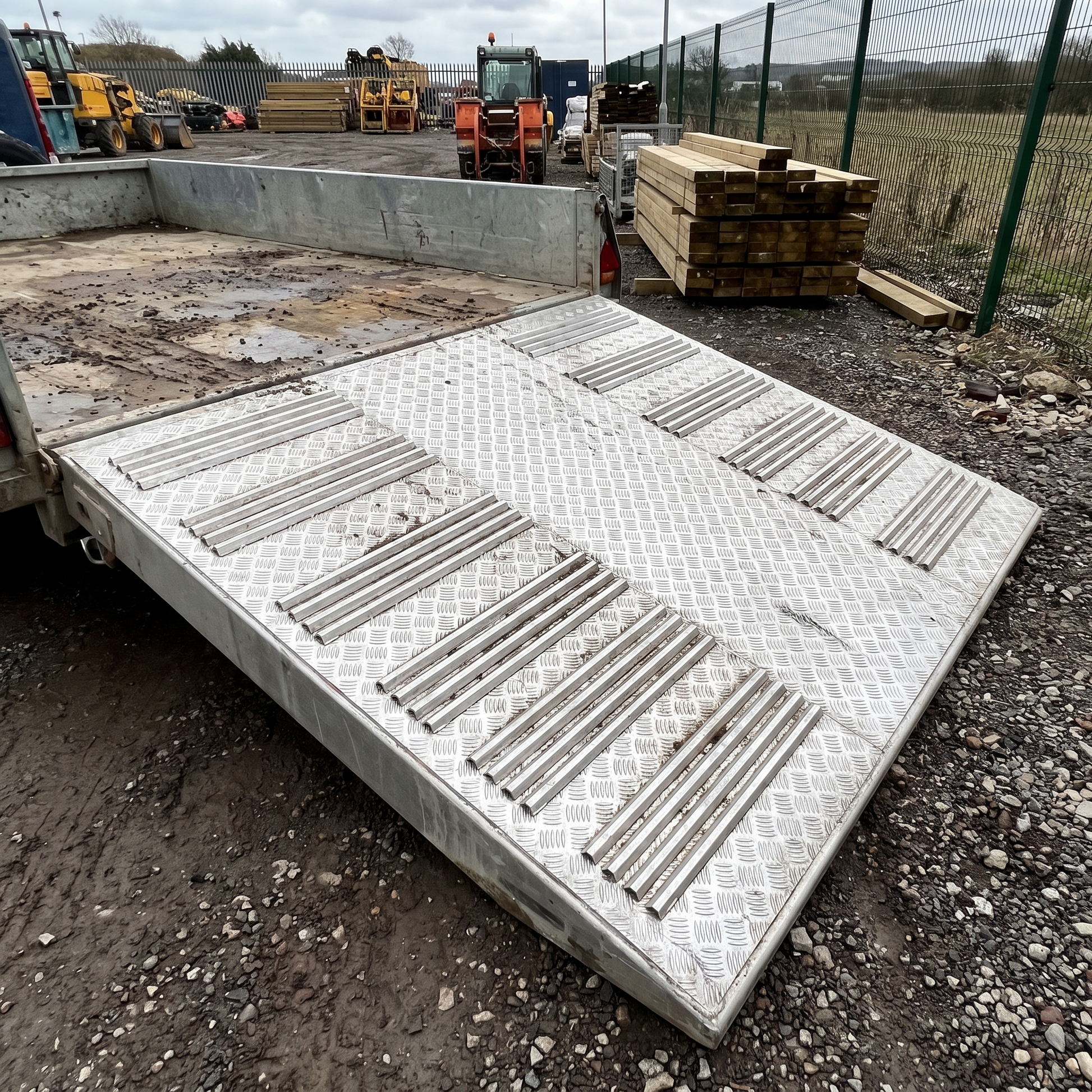

5754 aluminium chequer plate is widely used for trailer and van floors, vehicle lining, toolboxes, loading ramps, stair treads, kick plates, wall and corner protection, workshop and garage flooring, shop fitting and decorative interior applications. Its low weight relative to steel makes it ideal where weight saving and corrosion resistance matter.
Aluminium Chequer Plate vs Steel Durbar Plate
Aluminium chequer plate is significantly lighter than steel and naturally corrosion-resistant, making it the right choice for vehicle, marine, decorative and weight-sensitive applications. Mild steel durbar plate is stronger and heavier, better suited to heavy-duty structural flooring and high-traffic industrial use. Choose aluminium for weight saving and corrosion resistance, or steel durbar where load-bearing strength is the priority.
Cutting and Fabrication
Aluminium chequer plate can be cut, drilled, shaped and fabricated using standard metalworking tools. It is lighter and easier to handle than steel of equivalent size, and requires no protective coating for most applications thanks to its natural corrosion resistance.
Delivery Information
Lead times are currently 3-5 working days for mainland UK, with a maximum of 10 working days to remote areas. Mainland UK delivery only. Larger sheets may require assistance with unloading depending on order size.
